SYSTEM SENSOR B114LPBT DETECTOR BASE
Quick Overview
Manufactured By: SYSTEM SENSOR
Manufacturer Part Number: B114LPBT
IMS Product Code: 2133007
Packaging: Sold Individually
Description:

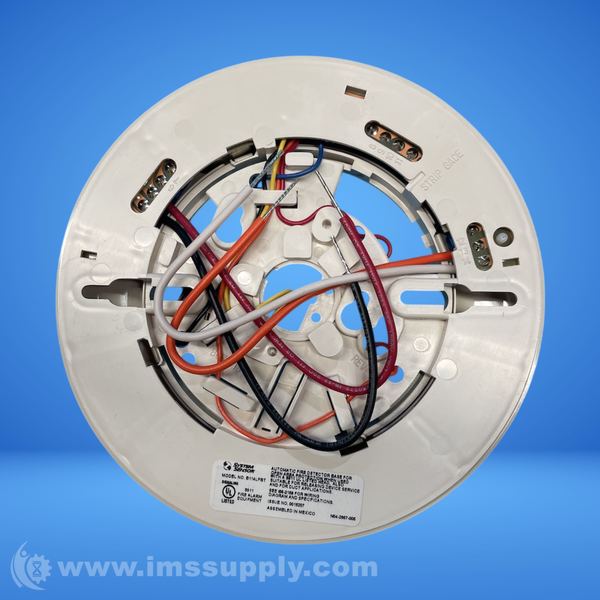

System Sensor B114LPBT Detector Base
A 4-wire detector base for use with System Sensor model 2151 photoelectronic and 1151 ionization detector heads, compatible with 24 VAC/VDC systems.
Specifications
- Supply Voltage: 24 VAC @ 0.8 VA; 24 VDC @ 35 mA
- Alarm Relay Output: Supervisory/Alarm: 2.0 A @ 30 VAC/VDC (Form A), Auxillary: 2.0 A @ 30 VAC/VDC; 1.0 A @ 120 VAC (Form C)
- Air Velocity: 0-3000 fpm (0-15.2 mps)
- Wiring Terminations: Solid or stranded, 12 to 22 AWG terminals
- Operating Humidity: 10% to 93% RH non-condensing
- Operating Temperature: 32 degrees to 120 degrees F (0 degrees to 49 degrees C)
- Enclosure Rating: NEMA 1
- Dimensions: 6.2" Dia. x 0.95"H (15.5 x 2.4 cm)
- Weight: 0.6 lb (0.27 Kg)
- Color: White
- Height: 1.1"
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 8 In Stock
