SYSTEM SENSOR WFD20 WATER FLOW DETECTOR
Quick Overview
Manufactured By: SYSTEM SENSOR
Manufacturer Part Number: WFD20
IMS Product Code: 1753118
Packaging: Sold Individually
Description:

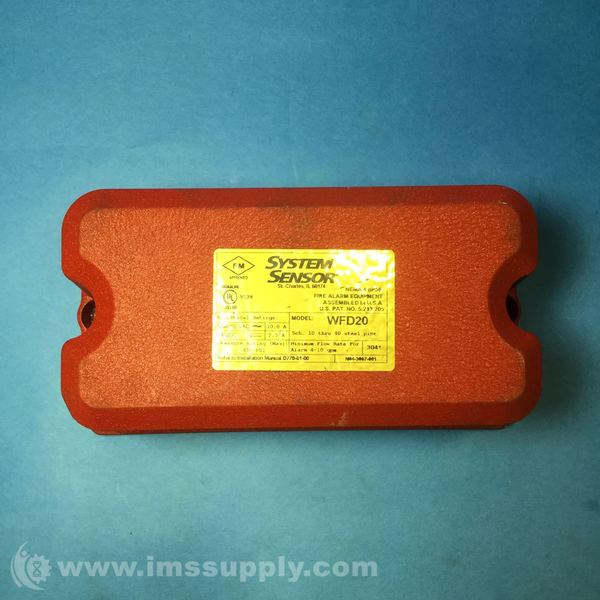

System Sensor WFD20 Water Flow Detector
Specifications:
- Conduit Entrances: 1/2" conduit: one open, one knock-out type
- Contact Ratings: Two sets SPDT (Form C); 10.0A, 1/2 HP @ 125/250VAC; 2.5A @ 6/12/24VDC
- Enclosure Rating: UL NEMA 4
- Maximum Surge: 18 FPS
- Operating Temperature Range: 32F to 120F (0 to 49C)
- Overall Dimensions: 4.6"H x 4.6"W
- Pipe Schedule: 7 through 40
- Pipe Size: 2"
- UL Pressure Rating: 450 PSI
