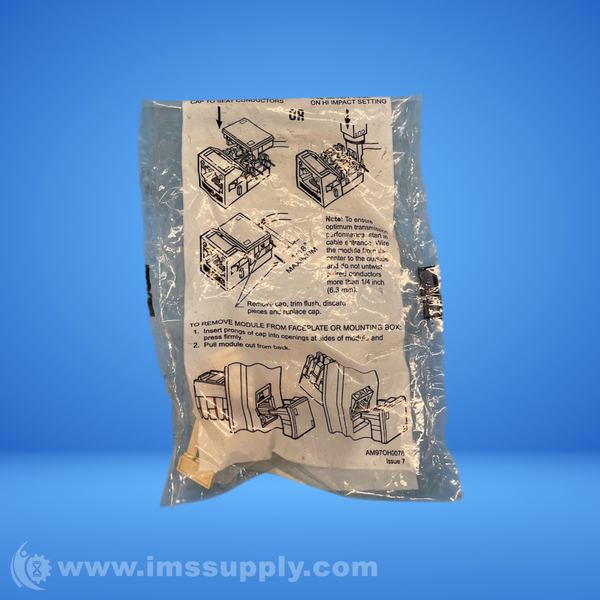

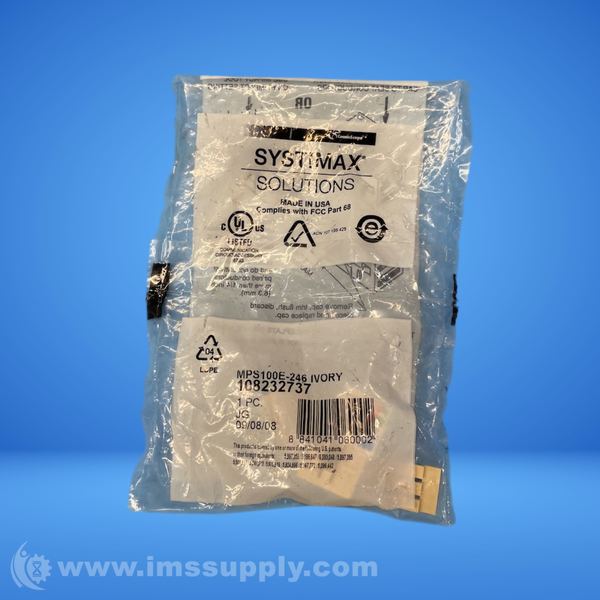

SYSTIMAX MPS100E-246 CATEGORY 5E U/UTP INFORMATION OUTLET
Quick Overview
Manufactured By: SYSTIMAX
Manufacturer Part Number: MPS100E-246
IMS Product Code: 1481530
Packaging: Sold Individually
Description:
Systimax MPS100E-246 Category 5e U/UTP Information Outlet
Modular RJ45 to insulation displacement connector (IDC) for high-speed data and video applications. Accepts 22-24 AWG insulated wire. Ivory color. Dimensions: 0.8 in x 0.8 in x 1.2 in.
Specifications
- ANSI/TIA Category: 5e
- Cable Type: U/UTP (unshielded)
- Color: Ivory
- Conductor Gauge: 22 AWG, 24 AWG, 26 AWG (solid); 22 AWG, 24 AWG (stranded)
- Conductor Type: Solid, Stranded (7 strands)
- Contact Resistance Variation: 20 mOhm
- Contact Resistance: 100 mOhm
- Dielectric Withstand Voltage: 1,500 V AC (conductive surface), 1,000 V AC (contact-to-contact)
- Dimensions: 0.80 in x 0.80 in x 1.20 in
- Flammability Rating: UL 94 V-0
- Insulation Resistance: 500 MOhm
- Material Type: Copper alloy, High-impact, flame retardant, thermoplastic
- Operating Temperature: -10 C to +60 C
- Plug Insertion Life: 750 times
- Plug Retention Force: 133 N
- Rear Termination Type: IDC
- Relative Humidity: Up to 95%, non-condensing
- Safety Standard: UL, cUL
- Storage Temperature: -40 C to +70 C
- Wiring: T568A, T568B
