TAIYO AZ105CE MAGNETIC PROXIMITY SWITCH
Quick Overview
Manufactured By: TAIYO
Manufacturer Part Number: AZ105CE
IMS Product Code: 1793583
Packaging: Sold Individually
Description:

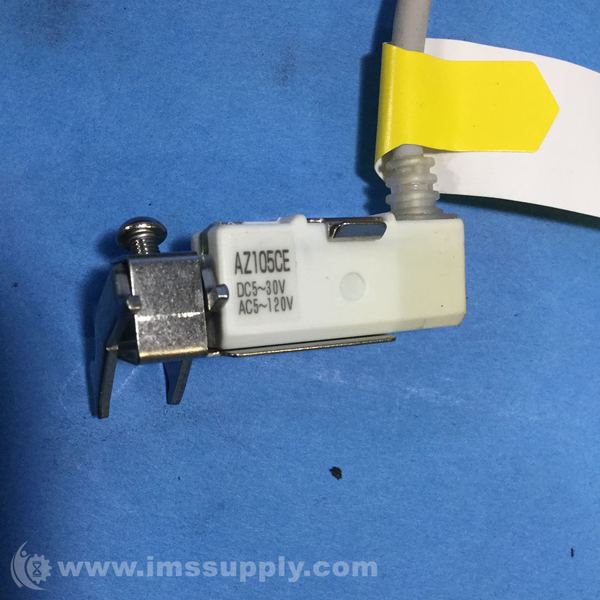

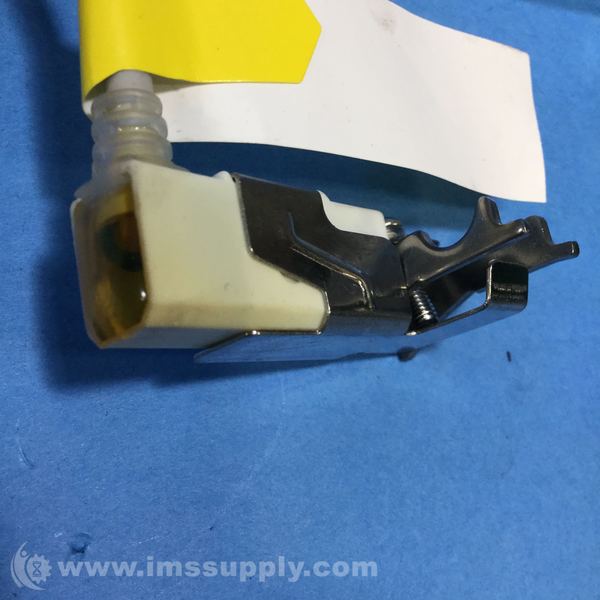

Taiyo AZ105CE Magnetic Proximity Switch
Magnetic proximity switch with rated voltage range AC 5-120V, DC 5-30V
Specifications
- Rated Voltage Range: AC 5-120V, DC 5-30V
- Rated Current Range: AC 5-20mA, DC 5-20mA
- Maximum Switching Capacity: 2VA (10mA) AC, 3VA DC
- Operating Time: 1ms or less
- Recovery Time: 1ms or less
- Insulation Resistance: DC500V megohm 100M ohm or more
- Dielectric Strength: AC1500V 1 minute
- Vibration Resistance: 10-55Hz
- Operating Temperature Range: -10 to +70 degrees C
- Connector Specifications: M12X1 screw locking
- Suitable Mating Connector: VA-4DS, VA-4DL, XS2, HR24
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 5 hours and 27 minutes.
