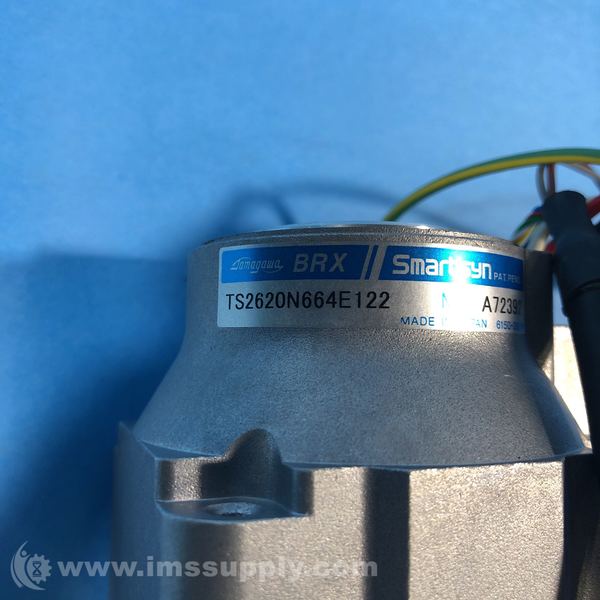

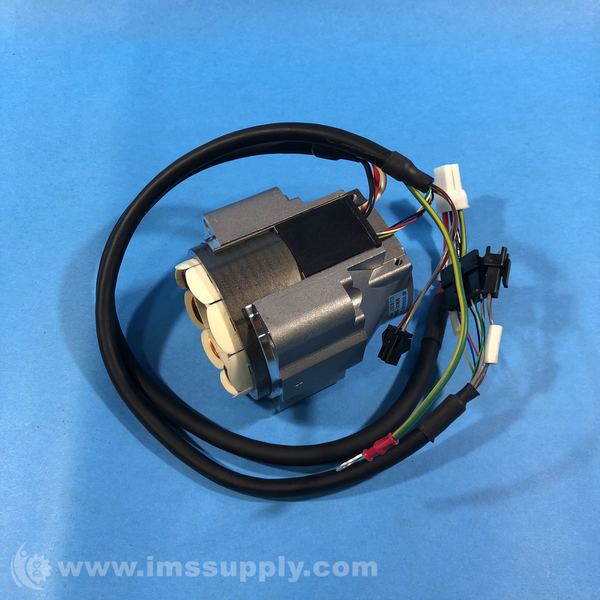

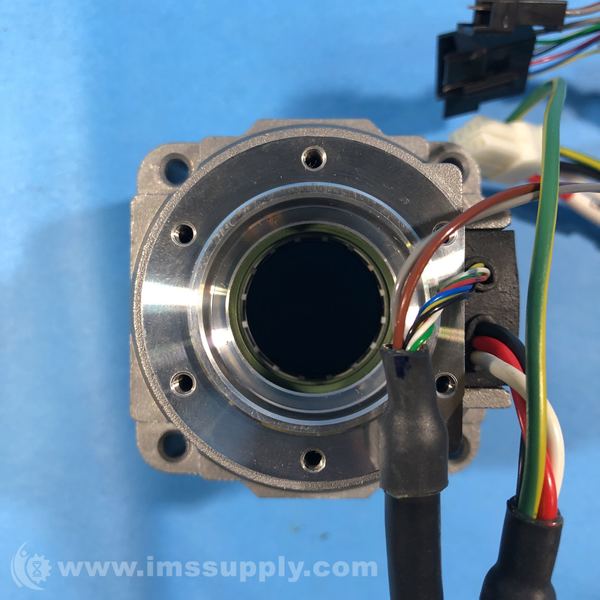

TAMAGAWA TS2620N664E122 RESOLVER
Quick Overview
Manufactured By: TAMAGAWA
Manufacturer Part Number: TS2620N664E122
IMS Product Code: 1911836
Packaging: Sold Individually
Description:
Tamagawa TS2620N664E122 Resolver
Rotary, brushless resolver
Specifications
- Type: Rotary, brushless resolver
- Shaft Type: Hollow
- Hollow shaft diameter: 15 mm
- Transformation ratio: 0.5 � 5%
- Input voltage: AC 10 Vrms, 4.5 kHz
- Primary current: 25 mA (maximum)
- Electrical error: �10' (arc minutes) maximum
- Residual voltage: 20 mVrms (maximum)
- Phase shift: +8 degrees nominal
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
