TB WOODS 20H100 TIMING SPROCKET
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: 20H100
IMS Product Code: 1862478
Packaging: Sold Individually
Description:

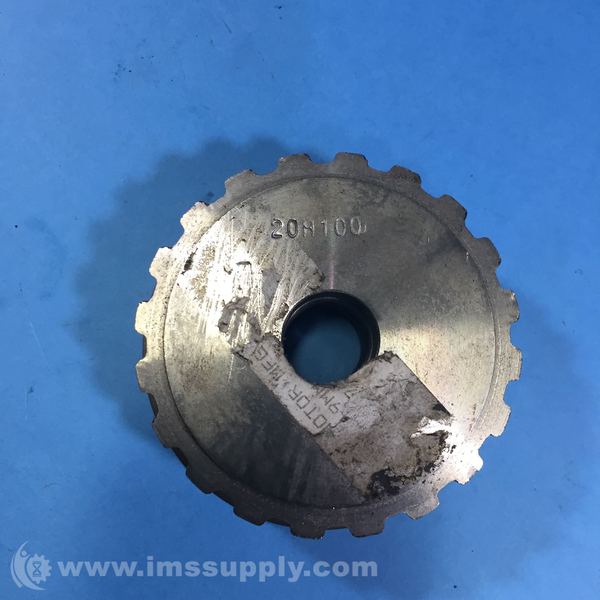

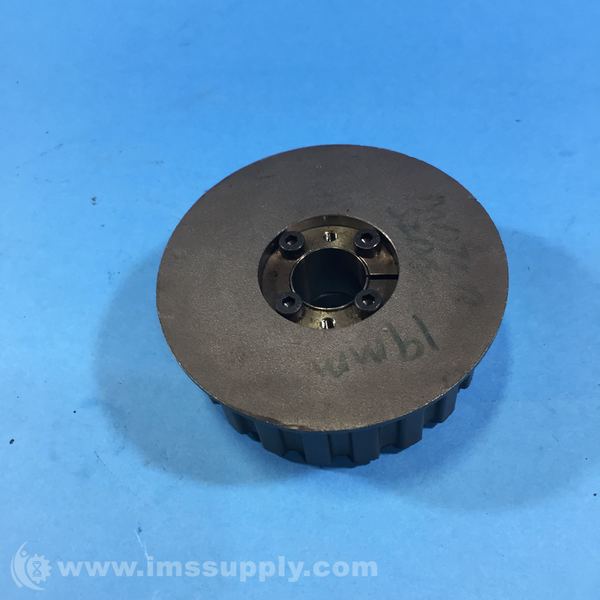

TB Woods 20H100 Timing Sprocket
Timing Sprocket for precision-driven applications, 1 in. Belt Width, 1/2 in. Pitch, Ductile Iron, with Quick Disconnect Bushing SH R
Specifications
- Belt Type: H
- Number Of Teeth: 20
- Belt Width: 1.0000 in
- Pitch: 0.5000 in
- Bore Type: Quick disconnect bushing
- Bushing: SH R
- Bore Diameter Range: 0.6250 to 1.6250 in
- Material: Ductile Iron
- Outside Diameter: 3.1290 in
- Pitch Diameter: 3.1830 in
- Face Width: 1-5/16 in
- Hub Diameter: 2-1/2 in
- Hub Projection: 7/8 in
- Weight: 1.50 lbs
- RPM Upper Limit: 12200
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
