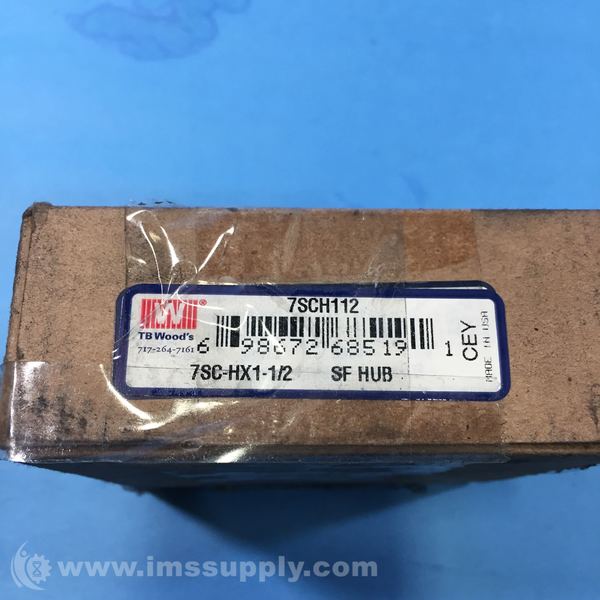

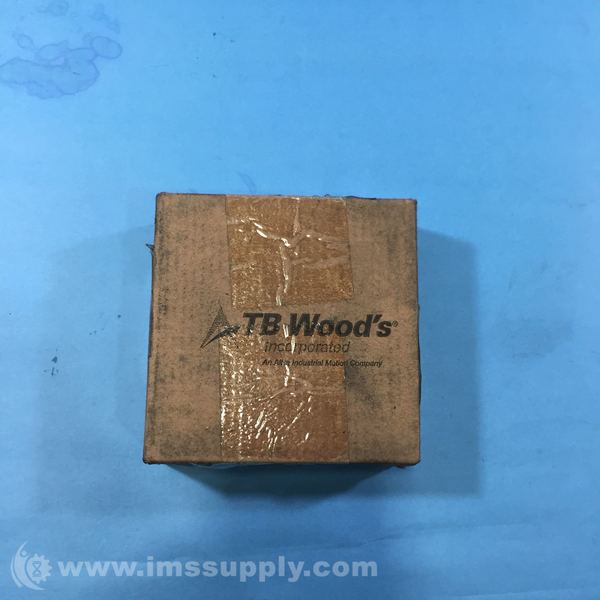

TB WOODS 7SCH112 SF HUB
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: 7SCH112
IMS Product Code: 1868224
Packaging: Sold Individually
Description:
TB Woods 7SCH112 SF Hub
A shaft hub component designed for use with Sure-Flex couplings in industrial applications.
Specifications
- Bore size: 1 1/2 in
- Bore tolerance: +.0005 to +.0015
- Capscrew size: Qty 4 -- 1/4 x 1-7/8
- Capscrew torque requirement: 9 in-lbs
- Component WR2 (lbs ft2): 0.0169
- Construction type: Finish bore with keyway
- Coupling size: 7
- Dimension (in) (C): 1 15/32
- Dimension (in) (H): 2 13/16
- Dimension (in) (S): 1/2
- Horsepower Rating at 100 RPM: 50
- Keyseat (in): 3/8 x 3/16
- Length through bore: 1.46875
- Material type: High strength cast iron
- Max angular gap misalignment: 0.081 (in) with EPDM/Neoprene Sleeves and 0.020 (in) with Hytrel Sleeves
- Max angular misalignment: 1 with EPDM/neoprene sleeves and 1/4 with hytrel sleeves
- Max compatible bore size: 1.875
- Max parallel misalignment: 7
- Max RPM: 5250
- Max speed: 5250
- Min compatible bore size: 0.625
- Power rating at 100 RPM: 1.1 kW with EPDM or Neoprene sleeve, 3.4 kW with Hytrel sleeve
- Screw size: Setscrew
- Screw type: Hub, spacer
- Set screw distance: 0.5
- Setscrew length: 0.5
- Setscrew size, location: 5/16 18 UNC, over keyseat
- Setscrew torque requirement: 13
- SF hub diameter: 2.8125
- Torque: 940 in-lb with EPDM or Neoprene sleeve, 2,875 in-lb with Hytrel sleeve
- Torque rate: 940 (in-lbs) with EPDM or Neoprene sleeve; 2,875 (in-lbs) with Hytrel sleeve
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 6 In Stock
Ships today if ordered in the next 7 hours and 46 minutes.
