TB WOODS 8E EPDM SLEEVE
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: 8E EPDM
IMS Product Code: 1780741
Packaging: Sold Individually
Description:

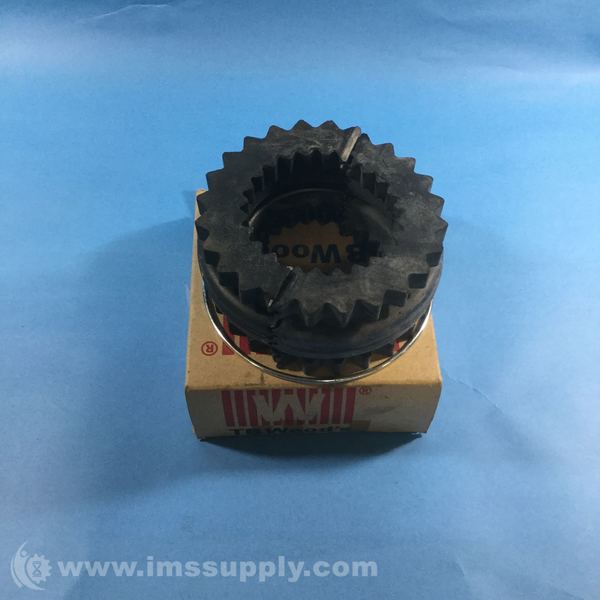

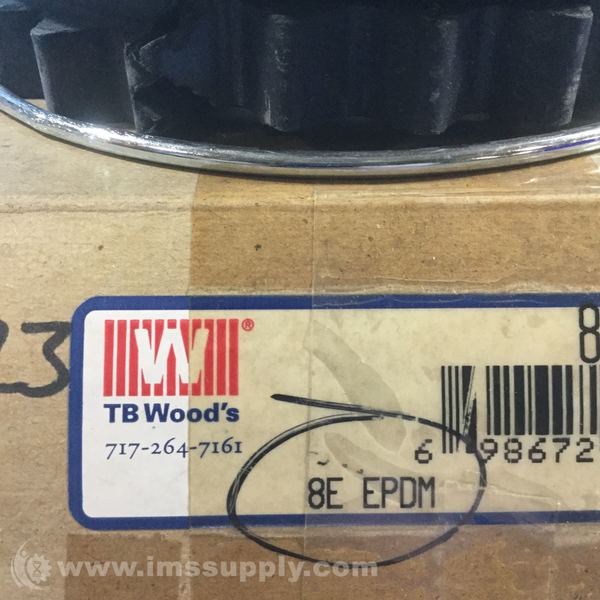

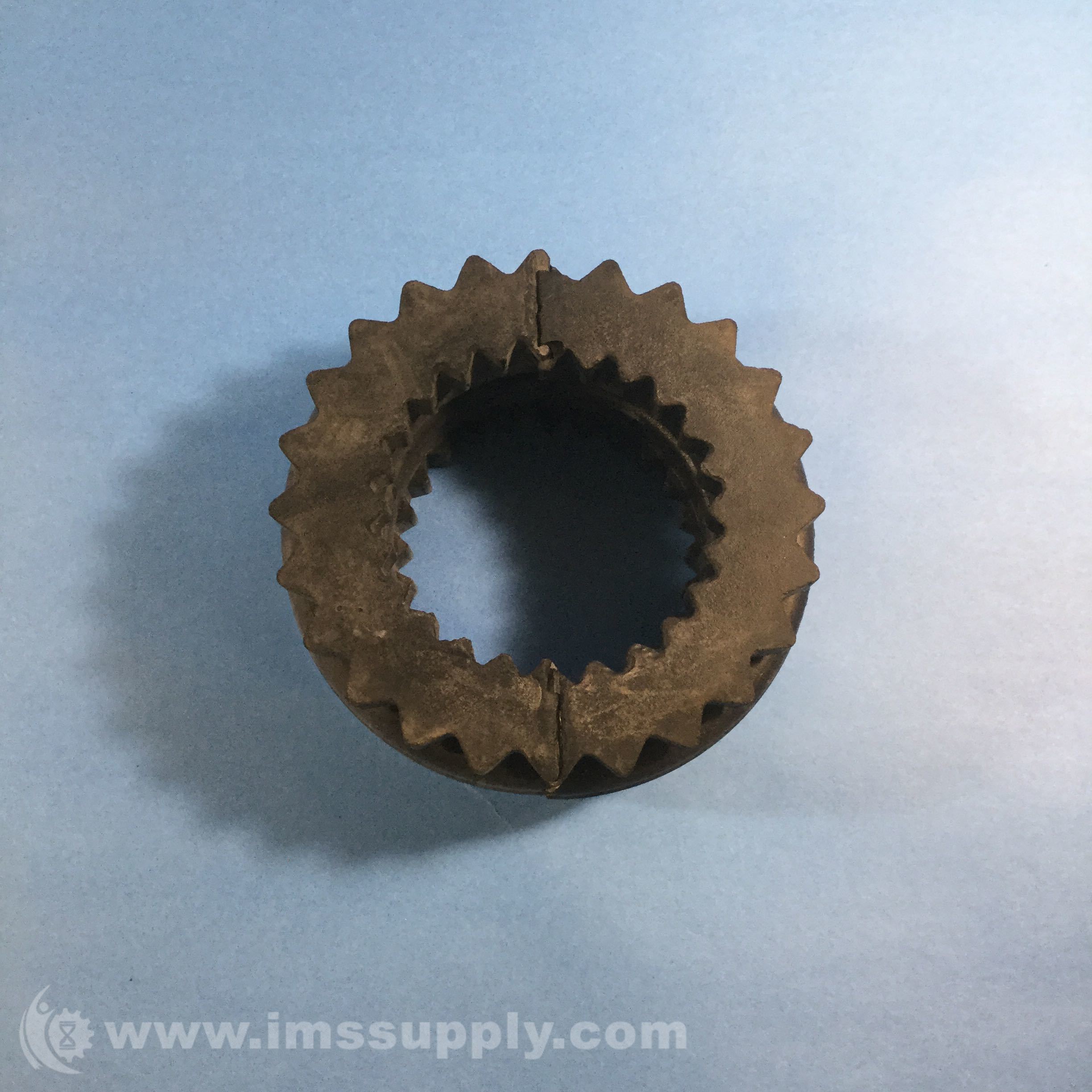

TB Woods 8E EPDM Sleeve
EPDM sleeve coupling insert with two-piece construction and retaining ring, designed for Sure-Flex couplings. Provides 4-way flexing action to absorb shock, misalignment, and end float. Rated for 1,475 in-lb torque and 4,500 RPM maximum speed.
Specifications
- Coupling Size: 8
- Material Type: EPDM
- Outside Diameter (D): 5 1/16 in
- Sleeve Width (W): 2 1/2 in
- Temperature Rating: -30°F to 275°F
- Maximum RPM: 4500
- Torque Rating: 1,475 in-lb
- Torsional Stiffness: 4,335 in-lb/rad
- Component Weight: 1.4 lbs
- Insert Design: Two-Piece with Retaining Ring
- Parallel Misalignment [Max]: 0.020 in
- Angular Misalignment [Max]: 1°
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 6 minutes.
