TB WOODS E178 QD BUSHING
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: E178
IMS Product Code: 1843452
Packaging: Sold Individually
Description:

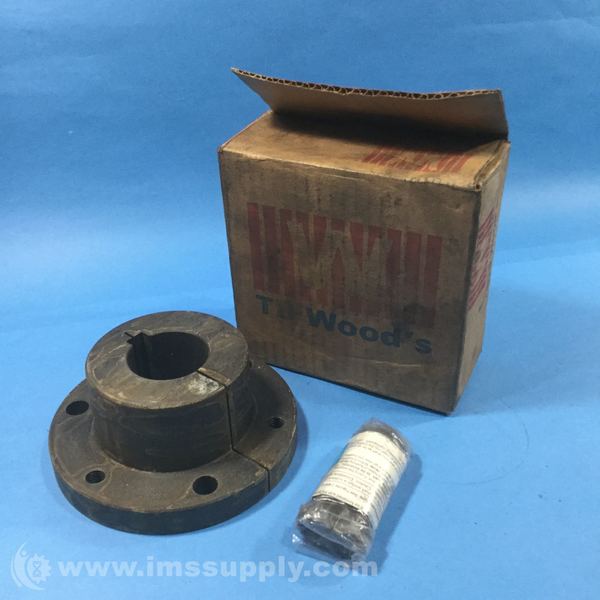

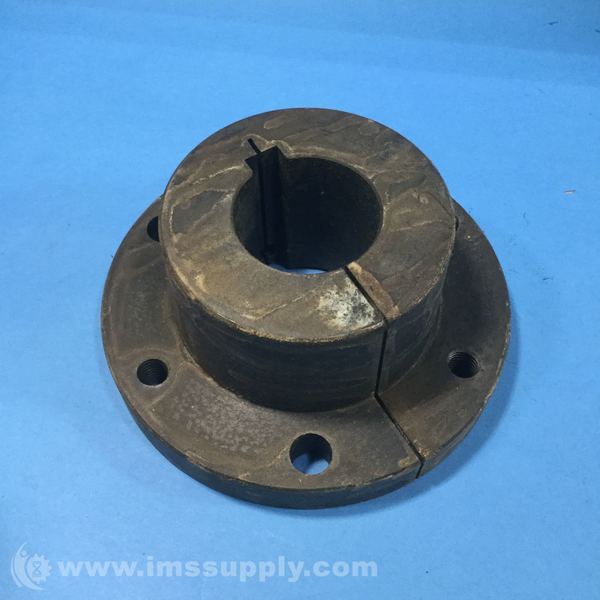

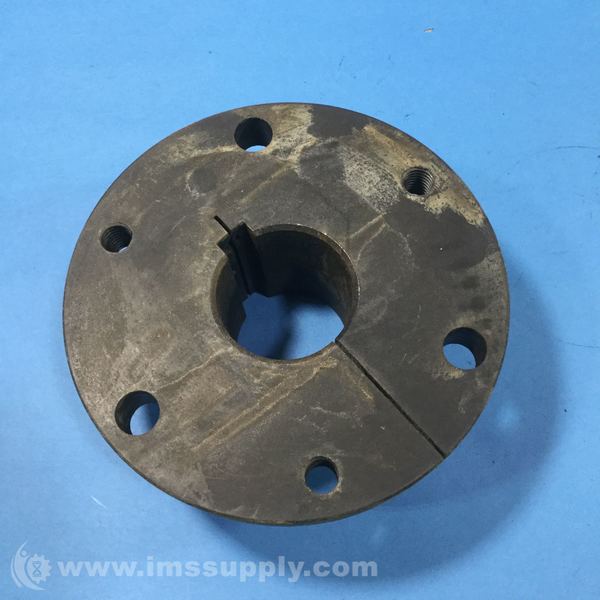

TB Woods E178 QD Bushing
Quick detachable bushing with 1-7/8" bore, cast iron material, and 20000 in-lbs torque capacity.
Specifications
- Type: QD
- Size: E
- Bore: 1-7/8"
- Material: Cast Iron
- Torque Capacity: 20000 in-lbs
- A Dimension: 0.75 in
- B Dimension: 3.83 in
- D Dimension: 6.00 in
- E Dimension: 1.88 in
- F Dimension: 1.63 in
- L Dimension: 2.63 in
- Bolt Circle: 5.00 in
- Key Size: 1/2 x 1/4 in
- Screw Torque: 60 ft-lbs
- Barrel Diameter: 3.834 in
- Flange Outside Diameter: 6.0000 in
- Flange Thickness: 0.7500 in
- Length Through Bore: 2.6250 in
- Number Of Bolt Holes: 3
- Screw Thread Size: 1/2-13 in
- Screw Length: 2-3/4 in
- Weight: 9.3 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
