TB WOODS SDS11516 QUICK DISCONNECT BUSHING
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: SDS11516
IMS Product Code: 1842583
Packaging: Sold Individually
Description:

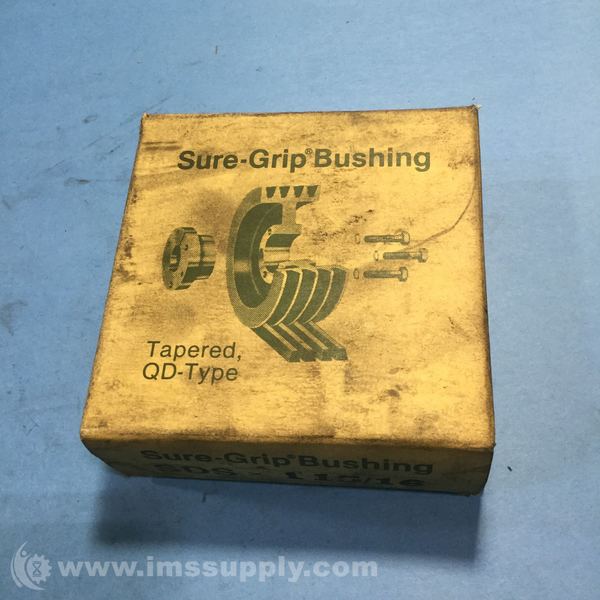

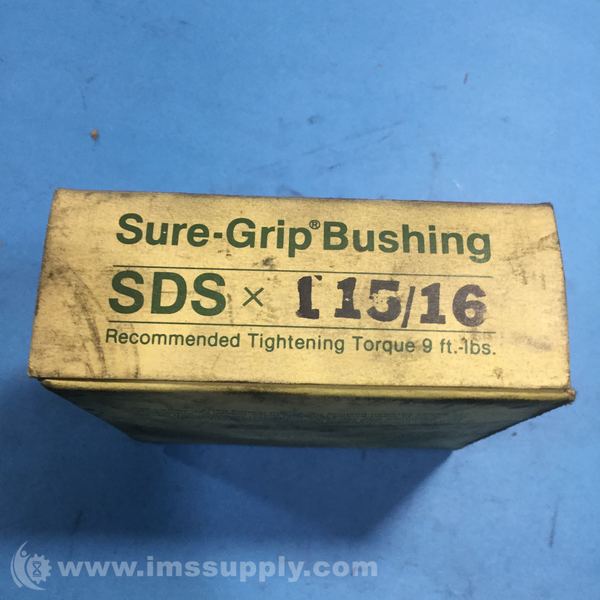

TB Woods SDS11516 Quick Disconnect Bushing
Steel bushing with 1-15/16 inch bore, 3.1875 inch flange OD, 1.3125 inch length through bore
Specifications
- Bushing Size: SDS
- Bore Type: Finished w/ Keyway
- Keyway Size: 1/2 x 1/16 in
- Bore Diameter: 1.9375 in
- Flange Outside Diameter: 3.1875 in
- Flange Thickness: 0.4375 in
- Length Through Bore: 1.3125 in
- Material: Steel
- Torque Capacity: 5000 in-lbs
- Screw Torque: 9 ft-lbs
- Barrel Diameter: 2-3/16 in
- Barrel Length: 7/8 in
- Bolt Circle Diameter: 2-11/16 in
- Number Of Bolt Holes: 3
- Screw Thread Size: 1/4-20 in
- Screw Length: 1-3/8 in
- Weight: 0.80 lbs
- Mounting Type: Conventional or Reverse
