TB WOODS SK114 QD BUSHING
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: SK114
IMS Product Code: 2156728
Packaging: Sold Individually
Description:

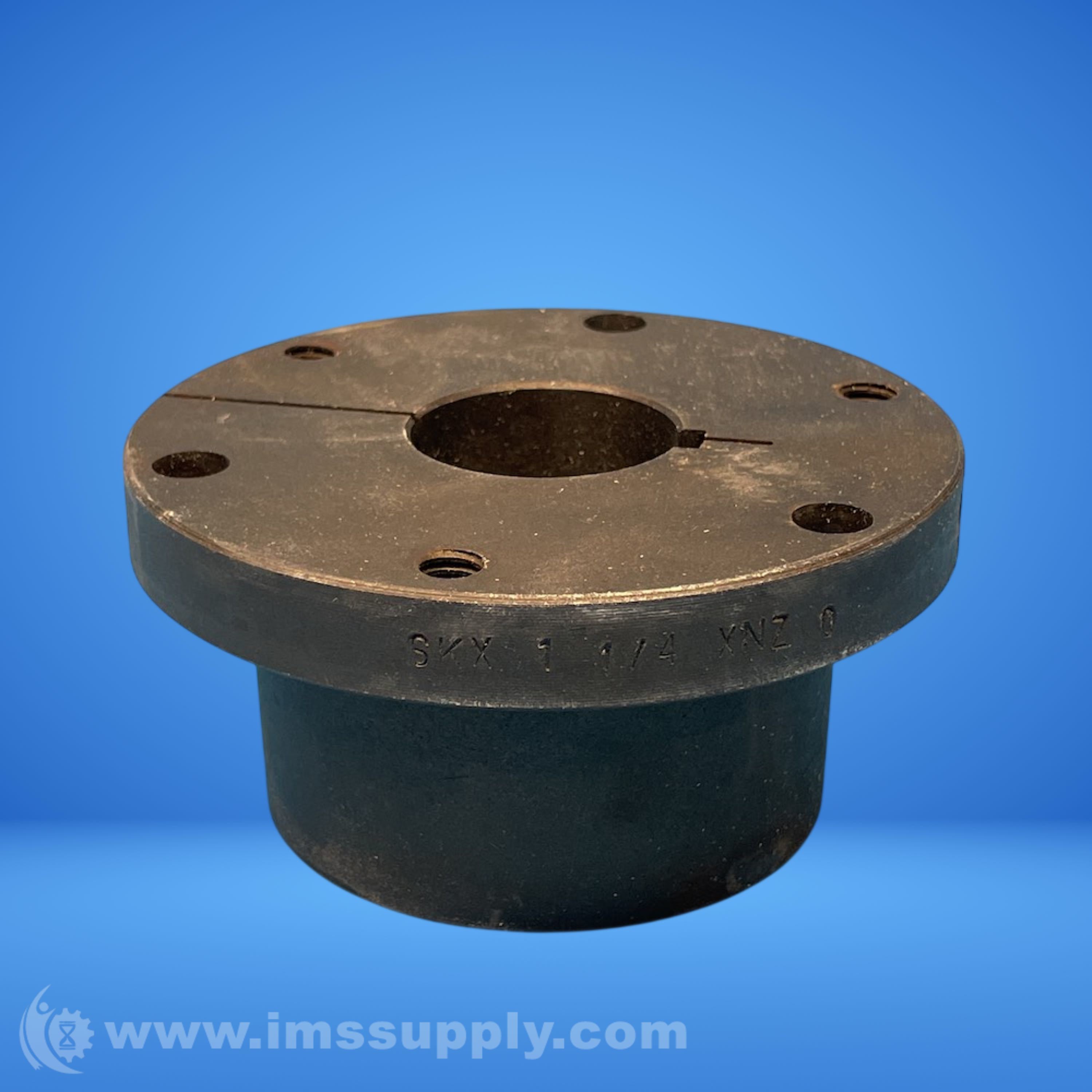

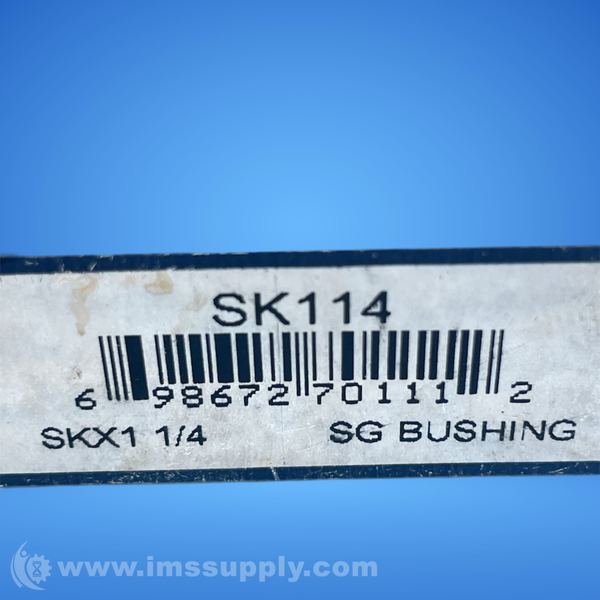

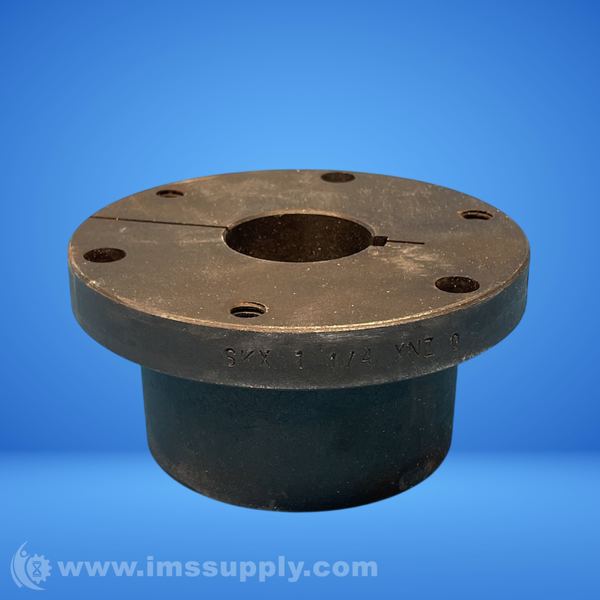

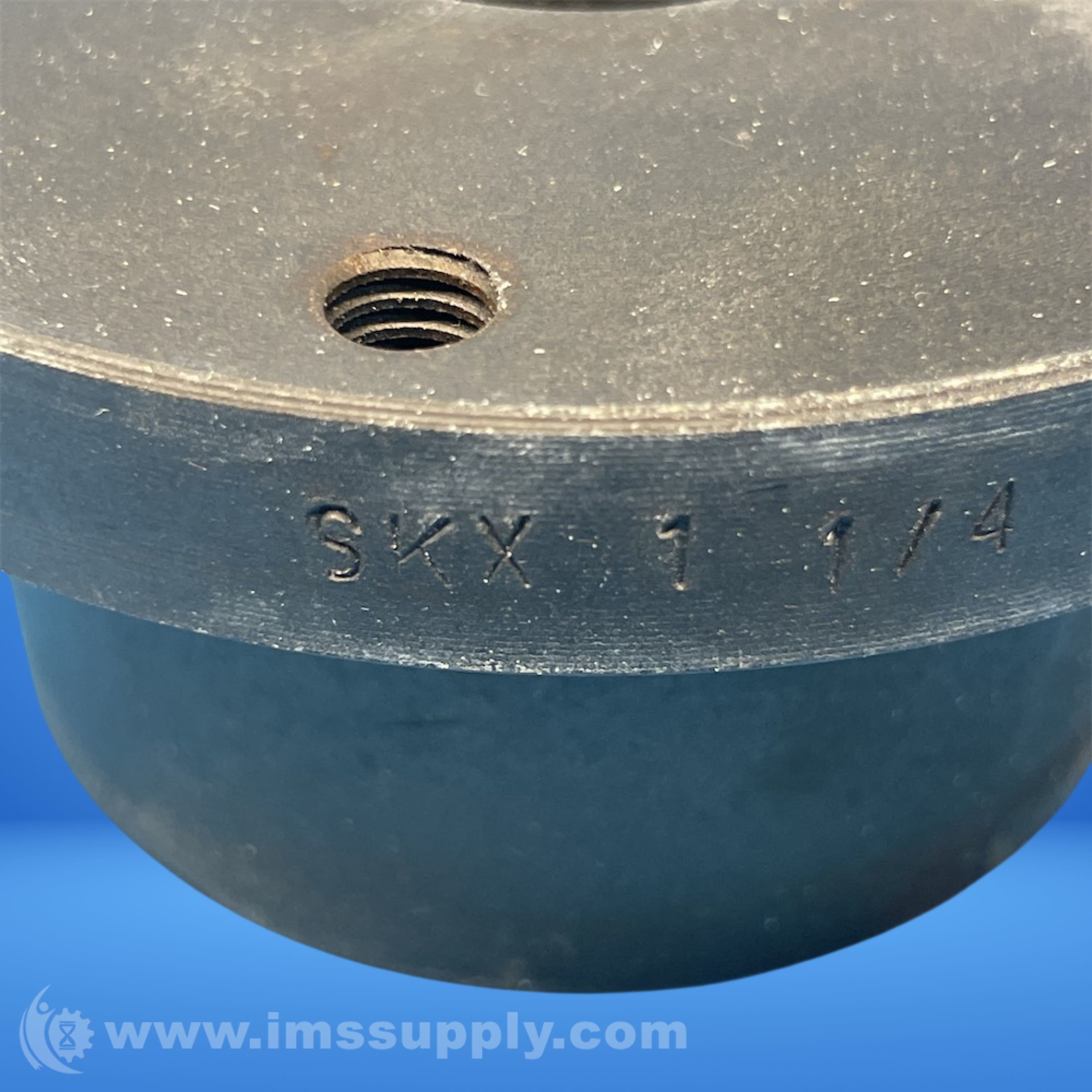

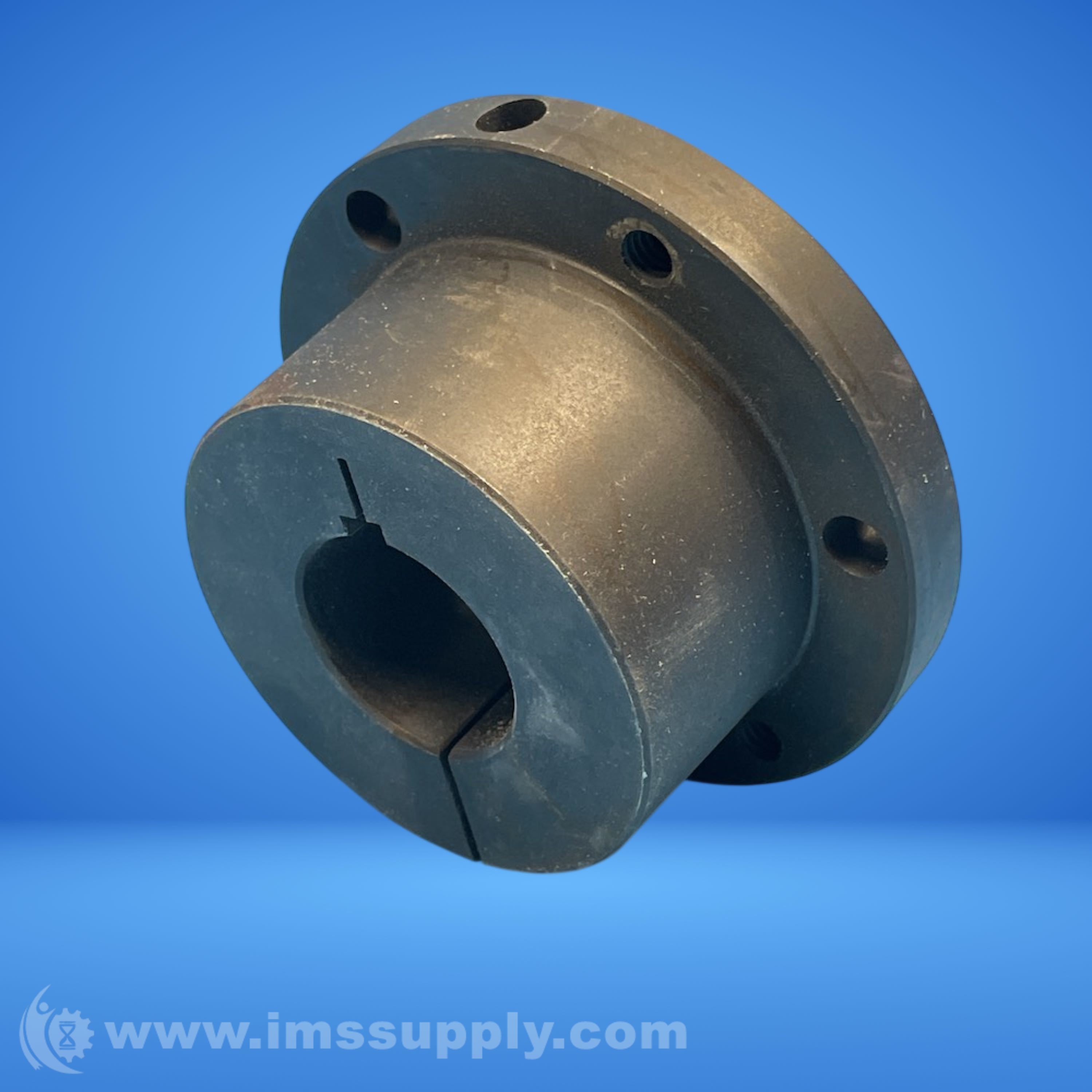

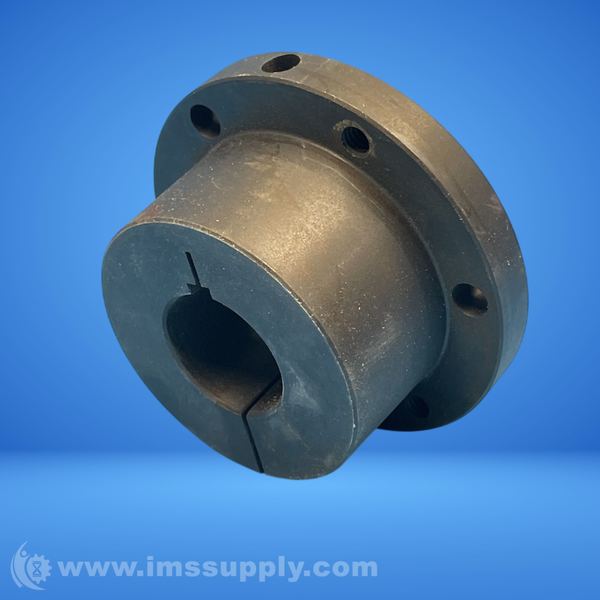

TB Woods SK114 QD Bushing
Cast iron quick-disconnect bushing with 1.25 inch finished bore and standard keyway. Rated for 7000 in-lbs torque capacity.
Specifications
- Bushing Size: SK
- Bore Type: Finished w/ Keyway
- Bore Diameter: 1.2500 in
- Flange Outside Diameter: 3.8750 in
- Flange Thickness: 0.5000 in
- Length Through Bore: 1.8750 in
- Material: Cast Iron
- Torque Capacity: 7000 in-lbs
- Screw Torque: 15 ft-lbs
- Mounting Type: Conventional or Reverse
- Keyway Size: 1/4 x 1/8 in
- Screw Thread Size: 5/16-18 in
- Number Of Bolt Holes: 3
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
