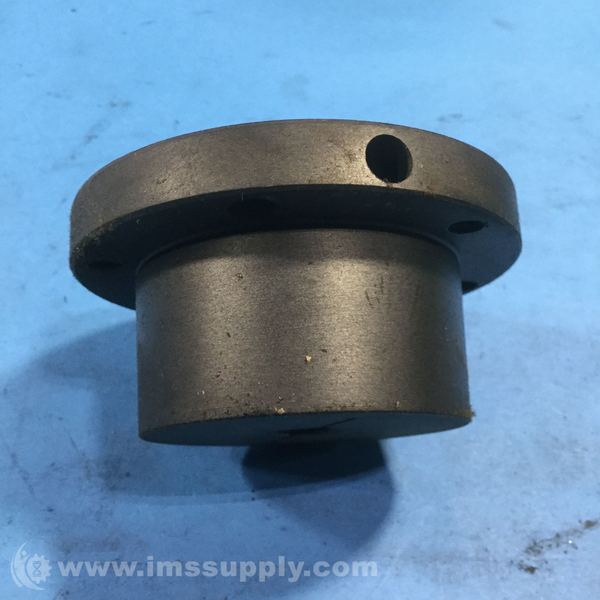

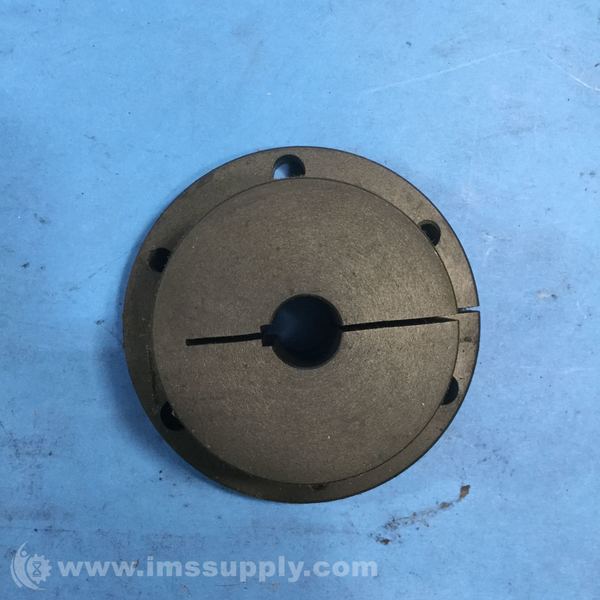

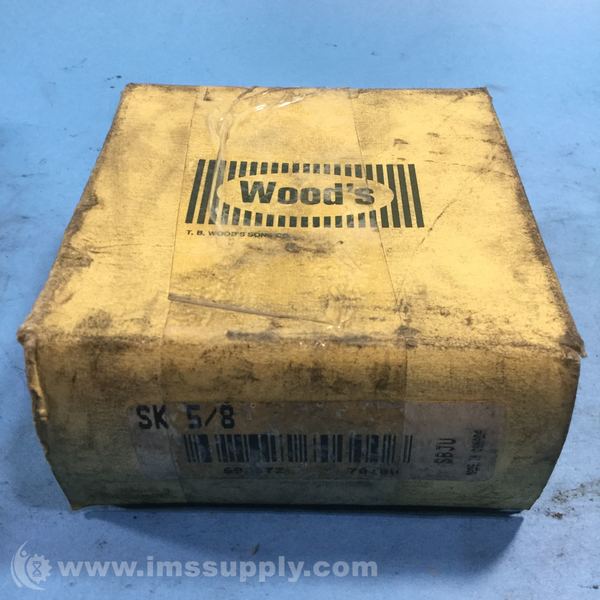

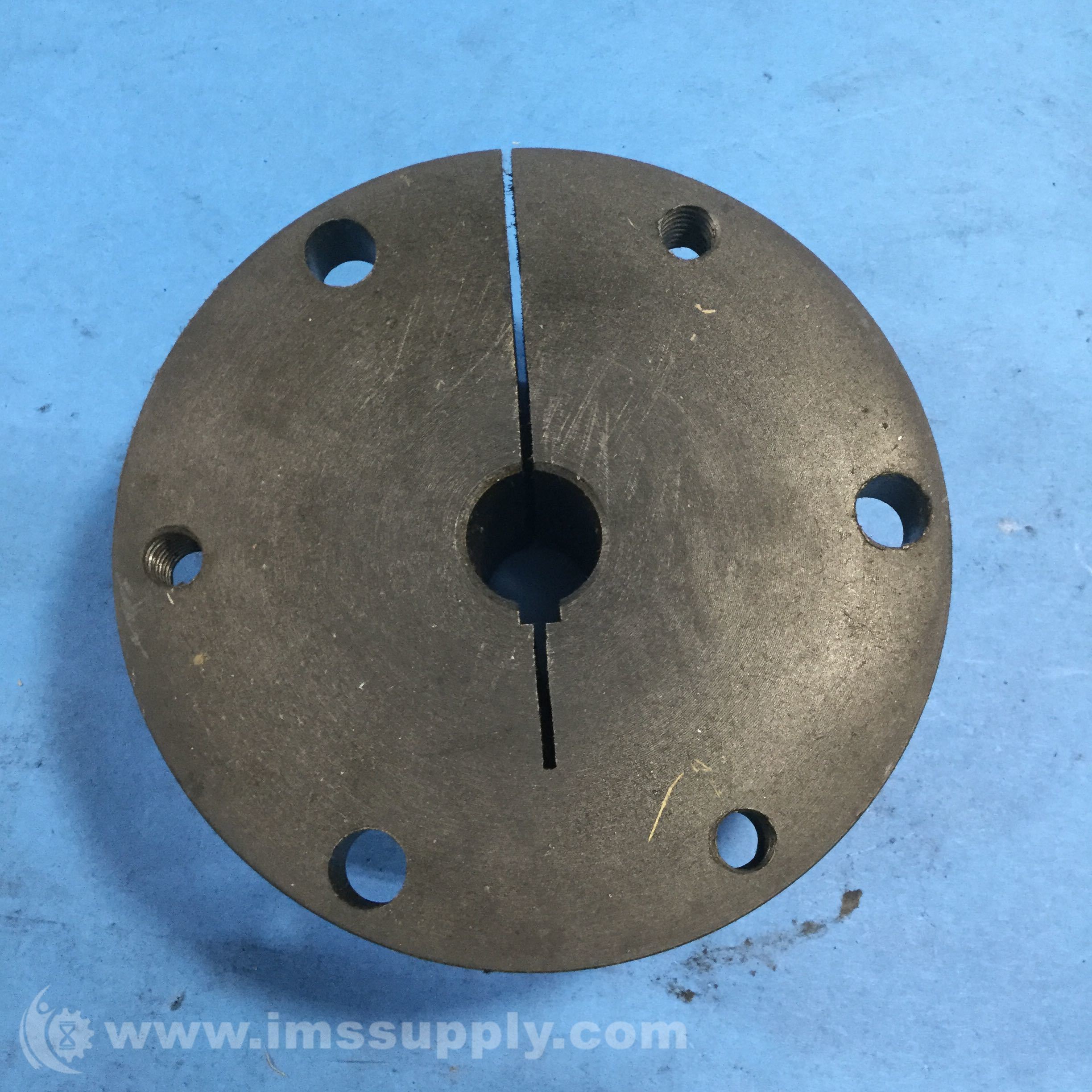

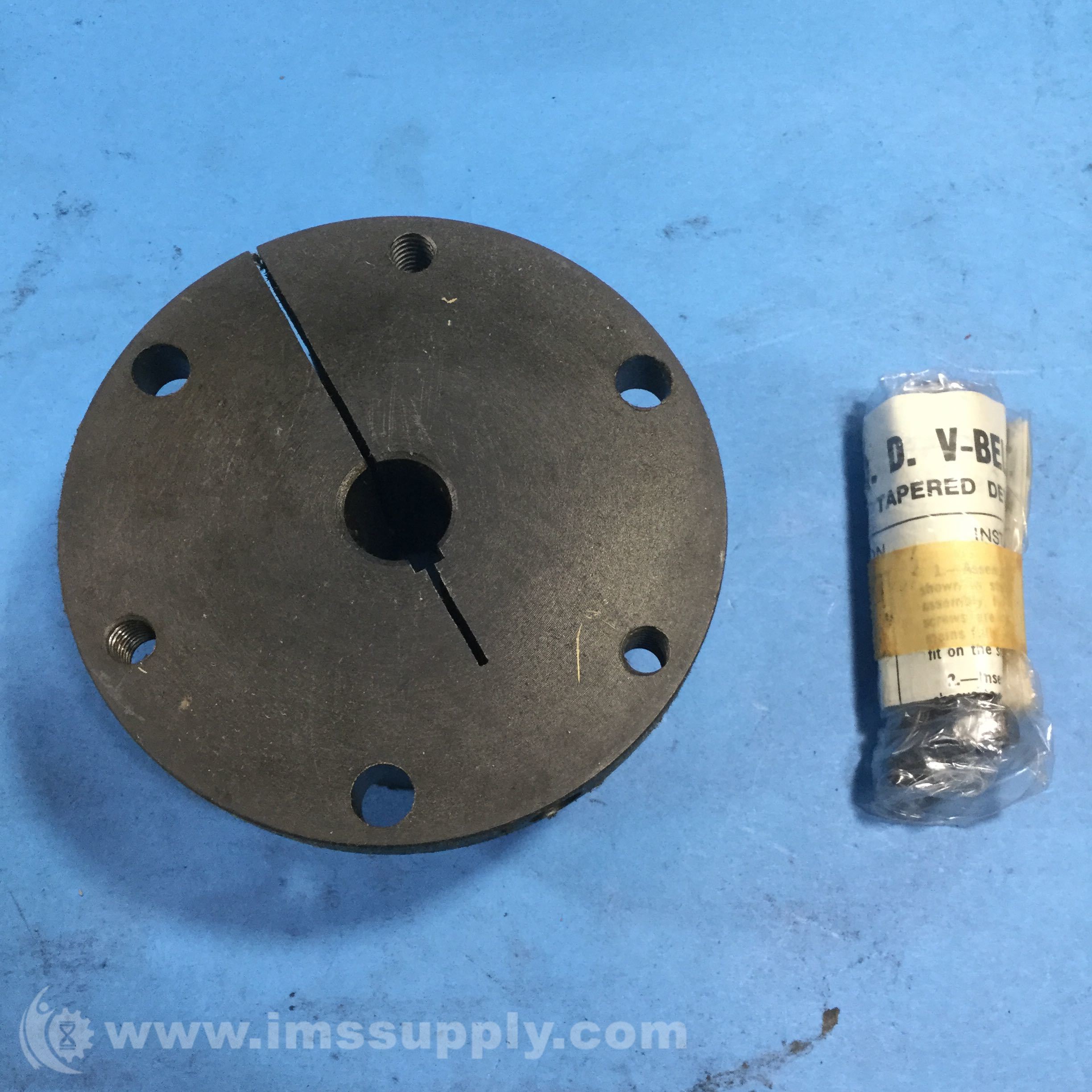

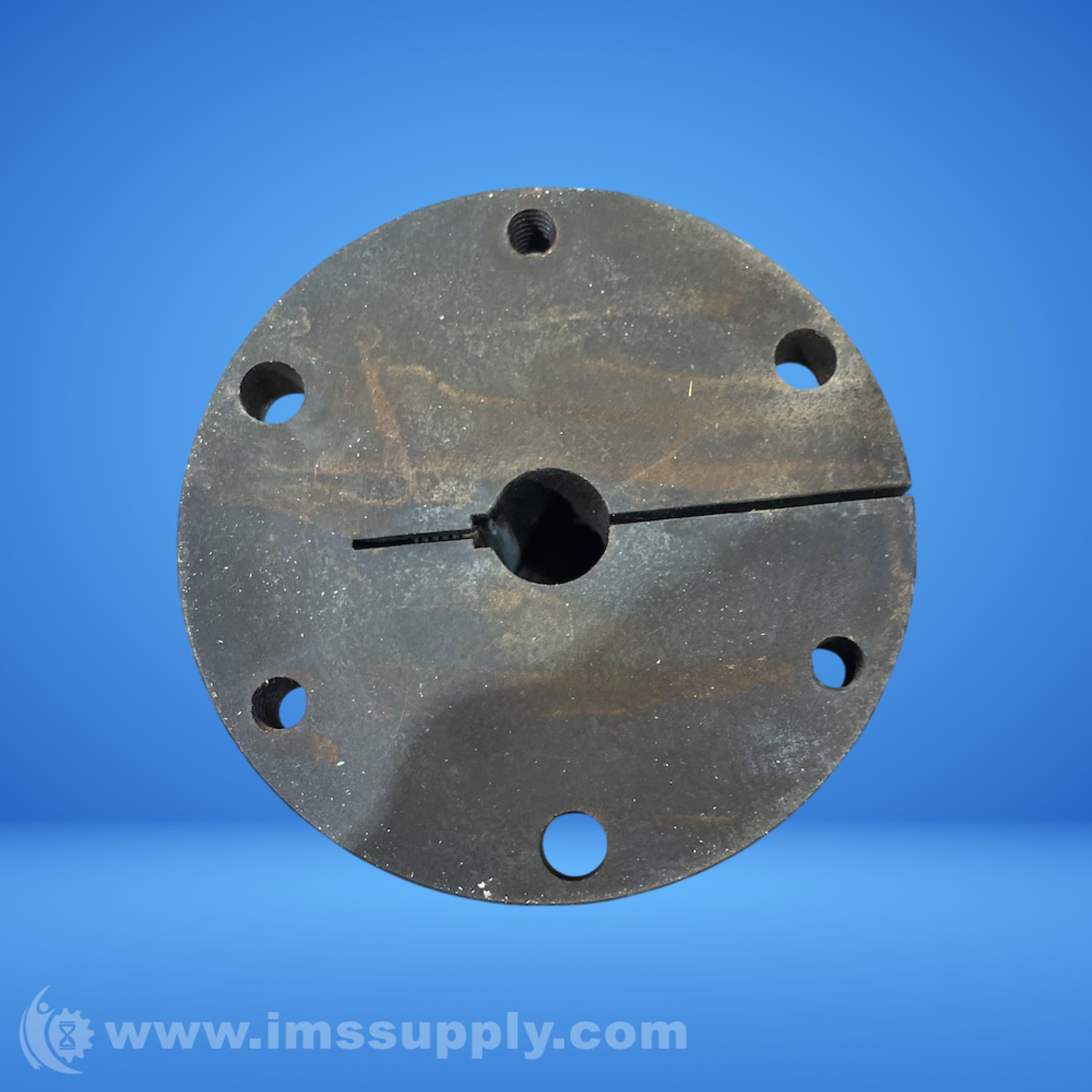

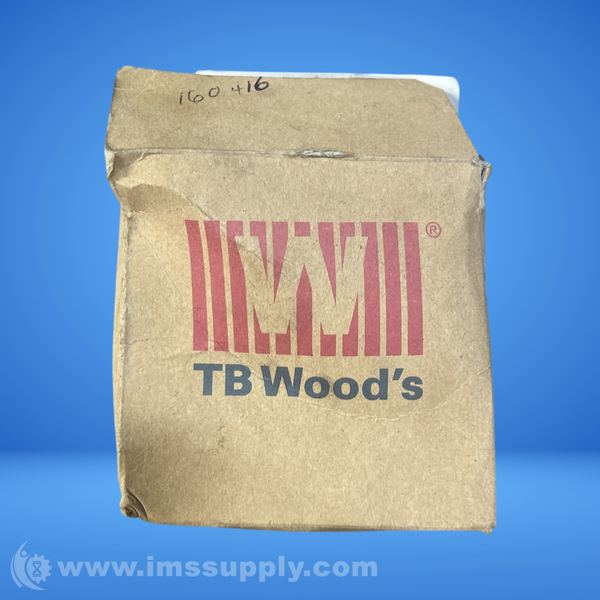

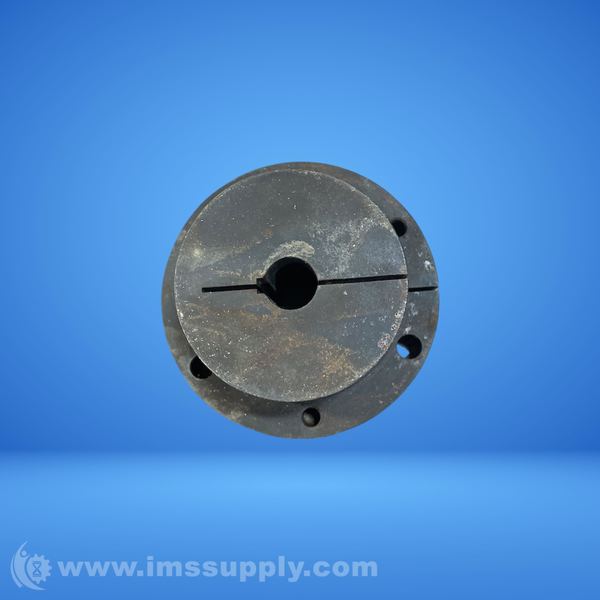

TB WOODS SK58 QD BUSHING
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: SK58
IMS Product Code: 1842619
Packaging: Sold Individually
Description:
TB Woods SK58 QD Bushing
TB Wood's Sure-Grip Quick Detachable (QD) Bushing
Specifications
- Bushing Series: SK
- Length: 1.8750"
- Bore Diameter: 5/8"
- Taper: 3/4" Per ft. on Diameter
- Bolt Circle Diameter: 3.3125"
- Material: Cast Iron
- Bolt Size: 5/16-18" x 2"
- Bolt Circle: 3.31
- Capscrew Designation: 5/16-18
- Capscrew Length: 2
- Design: Standard
- Dimension: 1.88
- Hardware: Inch series
- Installation Torque: 15
- Key Size: 3/16 x 3/32
- Keyway: Standard
- Mounting: STD or REV
- Number of Capscrews: 3
- Rating: 7000
- Series: Sure-Grip bushing
- Size: SK
- TBW Group No.: 11310
- Torque Capacity: 7000
- Type: Standard Type SK
- Hub Diameter: 4-3/4 in
- Flange Diameter: 3-7/8 in
- Flange Thickness: 1/2 in
- Number of Bolt Holes: 3
- Screw Size: 5/16-18 x 2 in L Cap Screw
- Torque Rating: 7000 in-lb
- Overall Length: 1.88 in
- Keyway Size: 3/16 x 3/32 in
- Weight: 4.00 lbs
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
