TDK-LAMBDA DPP480-24-3 480W POWER SUPPLY
Quick Overview
Manufactured By: TDK-LAMBDA
Manufacturer Part Number: DPP480-24-3
IMS Product Code: 2157077
Packaging: Sold Individually
Description:

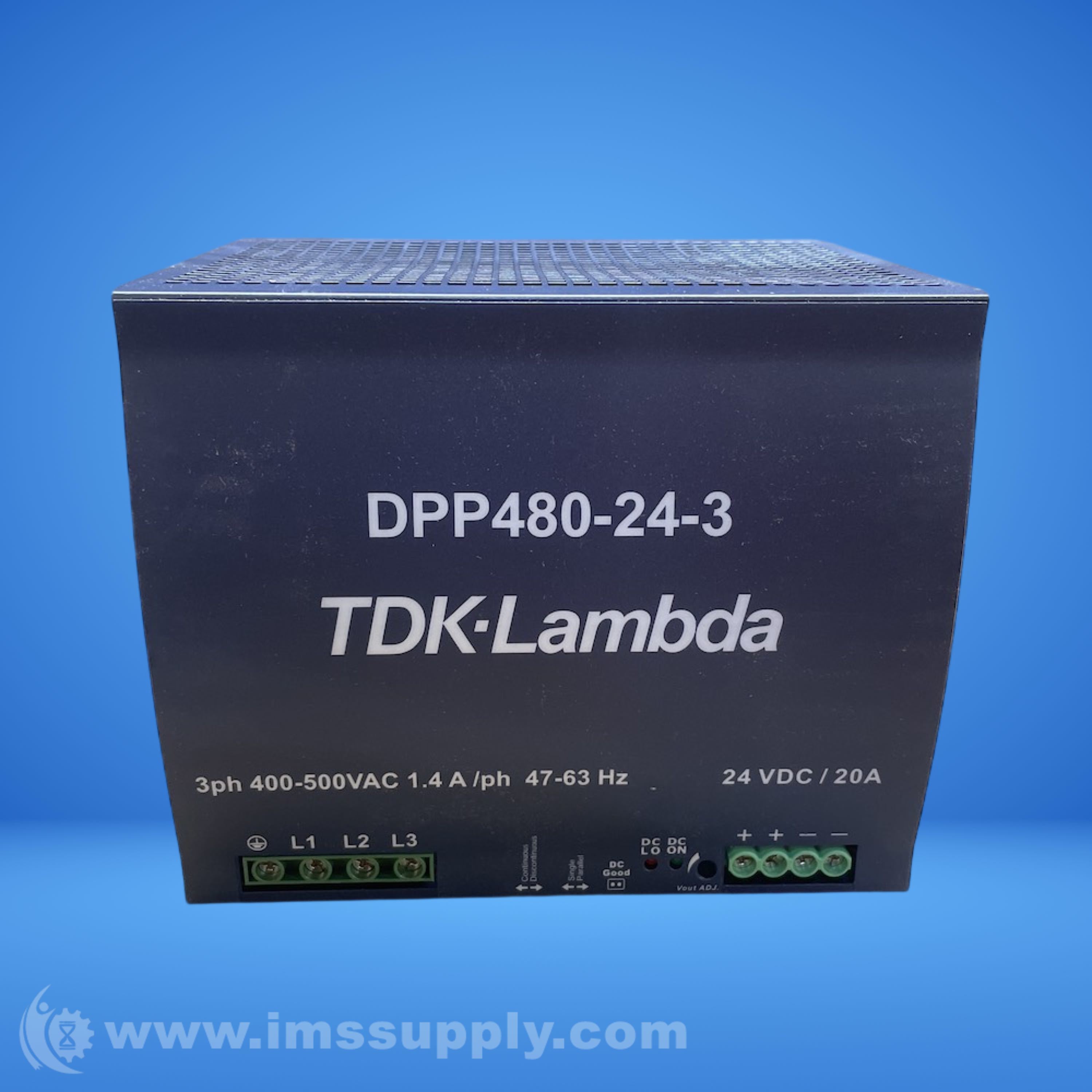

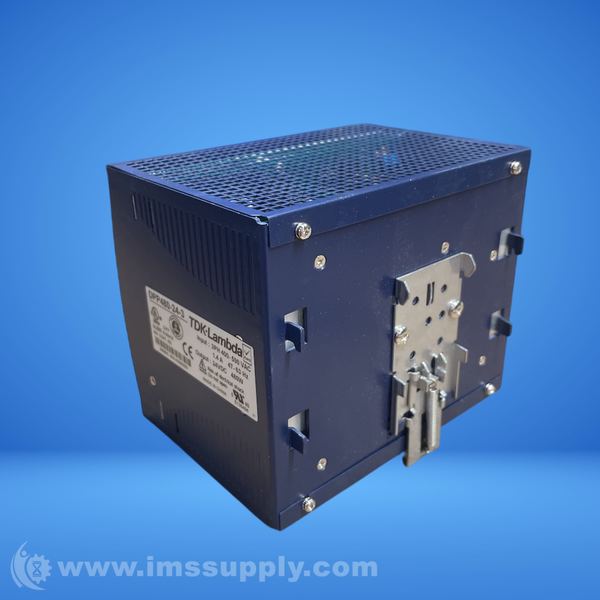

TDK-Lambda DPP480-24-3 480W Power Supply
AC-DC Power Supply for DIN rail mounting, 480W output power, 24VDC output voltage, 20A output current, 3-phase input
Specifications
- Input: 3-phase
- Input Voltage Range[AC]: 340 to 575Vac
- Input Voltage Range[DC]: 480 to 820Vdc
- Efficiency: 90% Typ.
- Rated Output Voltage[DC]: 24Vdc
- Output Voltage Range[DC]: 22.5 to 28.5Vdc
- Maximum Output Current: 20A
- Maximum Output Power: 480W
- Package Type & Size: DIN rail
- Width(W): 150mm Nom. (5.91in Nom.)
- Height(H): 124mm Nom. (4.88in Nom.)
- Depth(D): 111.9mm Nom. (4.41in Nom.)
- Weight: 1720g Typ. (3.8lbs Typ.)
- Operating Temp. Range: -30 to 71°C
- Cooling: Convection
- Safety Standard(Certified): EN60950-1, UL60950-1, EN62368-1, UL62368-1, UL508
- Type: Power Supply
- Output Power: 480W
- Output Voltage: 24V
- Output Current: 20A
- Type of power supply: switching
- Kind of power supply: for DIN rail
- Electrical connection: terminal block
- Mounting: for DIN rail mounting
- Body dimensions: 111.9x150x124mm
- Operating temperature: -40...71°C
- Protection: anti-overvoltage OVP, over current OCP, overheating OTP
- Additional functions: adjustable output voltage
- Manufacturer series: DPP
- Voltage between phases (for three phase system): 3 x 340...575V AC
- Indication: LED
- Supply voltage: 480...820V DC
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
