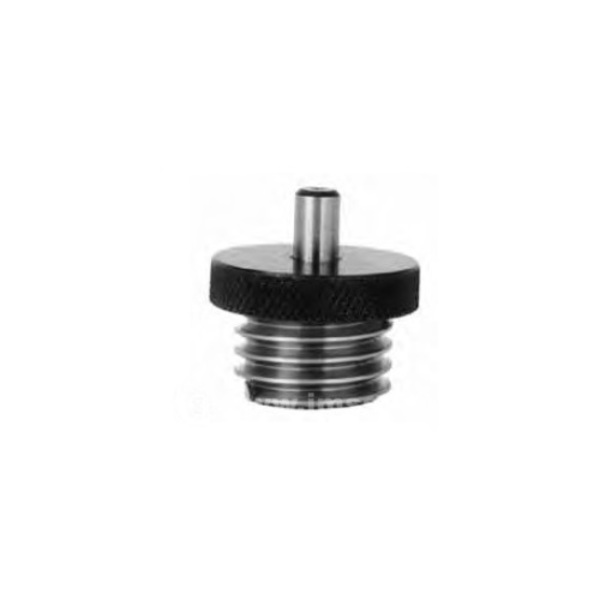

TE-CO 10305 TAPPED HOLE LOCATION GAGES

Starting At: $137.30

Quick Overview

Manufactured By: TE-CO
Manufacturer Part Number: 10305
IMS Product Code: 1793599
Packaging: Sold Individually

Description:

  • Material:
    - Body: 52100 Steel
    - Collar:12L14 Steel
  • Black oxide finish on collar only
  • Two piece construction
  • Use to accurately measure the distance between two tapped holes in a workpiece
  • Shaft size is the same diameter on all gages to simplify calculation of the hole spread
    - All diameters are concentric within .0002 T.I.R.
  • English:
    - Thread Class: 3A
    - Left-hand thread, helicoil, or other non-standard gages quoted upon request
  • Metric:
    - Thread Class: 6G
    - ISO metric fine pitch thread, left-hand thread, helicoil, or other non-standard gages quoted upon request

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 7 Days
