TE-CO 52817X BALL PLUNGERS IMPERIAL - STEEL BODY, SS BALL

Starting At: $7.55

Quick Overview

Manufactured By: TE-CO
Manufacturer Part Number: 52817X
IMS Product Code: 1922834
Packaging: Sold Individually

Description:

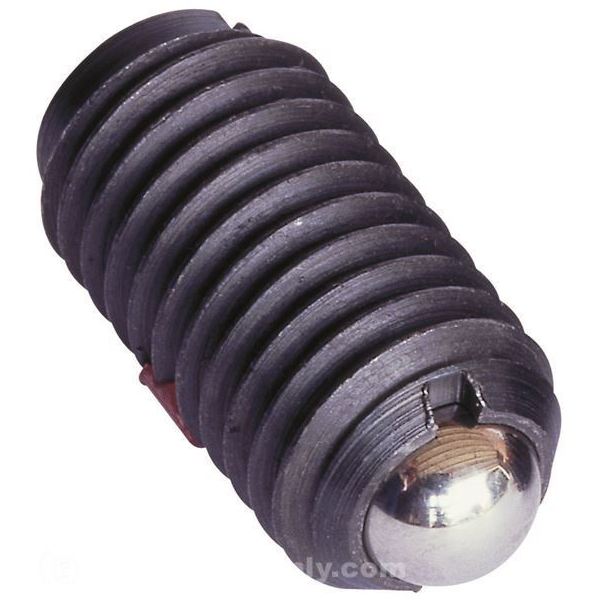

TE-CO 52817X Ball Plungers Imperial - Steel Body, SS Ball

  • Smallest and lightest spring loaded device
  • Side-load tolerant
  • Controlled end forces
  • Screwdriver installation
  • Many sizes conform to TCMAI standards

Specifications:

  • Finish: Black
  • Initial End Force: 9.00 lb
  • Final End Force: 18.00 lb
  • Thread Size (A): 5/8-11
  • Body Length (B): 0.984 in
  • Projection Size (C): 0.096 in
  • Ball Diameter (D): 0.375 in
  • Body Material: 12L14 Steel
  • Ball Material: 440 Stainless Steel
  • Locking Element Present: No
  • Type: Ball Plunger
  • Weight: 5.00 lb
  • Thread Type: UNC
  • Threads per Inch: 11
  • Lock Type: No
  • Plunger Material: Stainless Steel
  • Thread Lock Element: 0
  • End Force: Standard
  • Body Angle: 0 º

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 7 Days

IMS Supply is an authorized TE-CO distributor.
