TE-CO 52822X BALL PLUNGERS IMPERIAL - STEEL BODY, SS BALL
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 52822X
IMS Product Code: 1922825
Packaging: Sold Individually
Description:

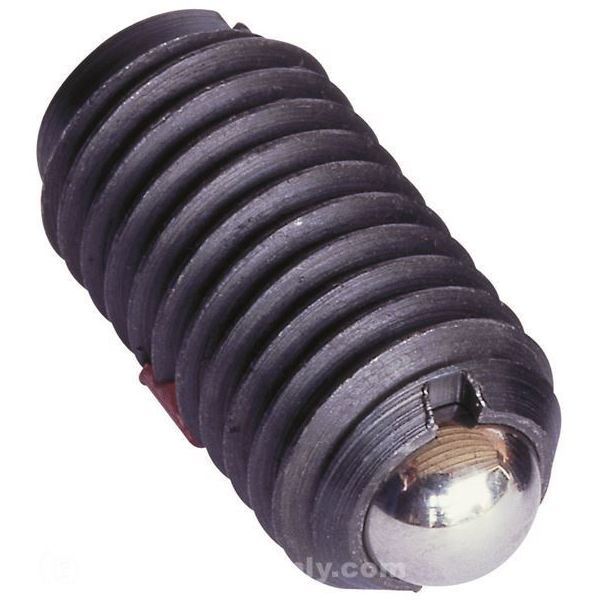

TE-CO 52822X Ball Plungers Imperial - Steel Body, SS Ball
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Specifications:
Finish: Black
Initial End Force: 0.25 lb
Final End Force: 0.75 lb

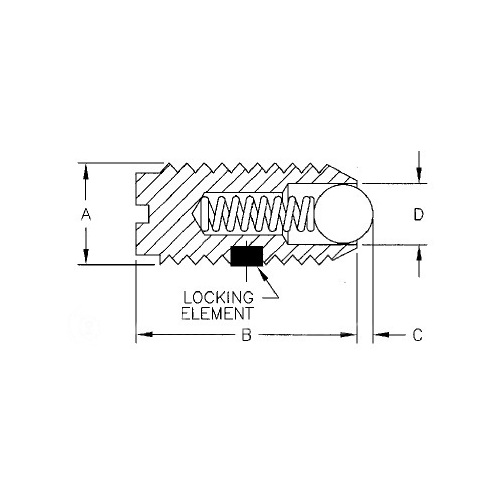

Thread Size (A): 5-40
Body Length (B): 0.250 in
Projection Size (C): 0.020 in
Ball Diameter (D): 0.062 in
Body Material: 12L14 Steel
Ball Material: 440 Stainless Steel
Locking Element Present: No
Type: Ball Plunger
Weight: 0.02 lb
Thread Type: UNC
Threads per Inch: 40
Lock Type: No
Plunger Material: Stainless Steel
Thread Lock Element: 0
End Force: Standard
Body Angle: 0 º
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
