TE-CO 52824X BALL PLUNGERS IMPERIAL - STEEL BODY, SS BALL
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 52824X
IMS Product Code: 1922821
Packaging: Sold Individually
Description:

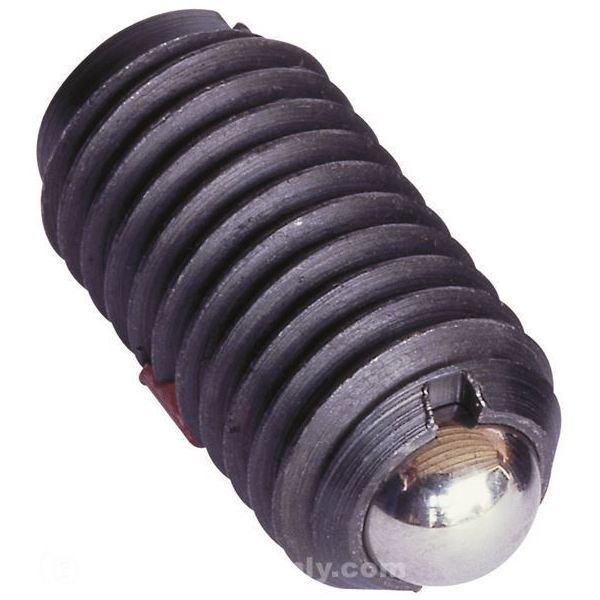

TE-CO 52824X Ball Plungers Imperial - Steel Body, SS Ball
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Specifications:
- Finish: Black
- Initial End Force: 0.50 lb
- Final End Force: 1.25 lb
- Thread Size (A): 8-36
- Body Length (B): 0.344 in
- Projection Size (C): 0.025 in
- Ball Diameter (D): 0.093 in
- Body Material: 12L14 Steel
- Ball Material: 440 Stainless Steel
- Locking Element Present: No
- Type: Ball Plunger
- Weight: 0.04 lb
- Thread Type: UNF
- Threads per Inch: 36
- Lock Type: No
- Plunger Material: Stainless Steel
- Thread Lock Element: 0
- End Force: Standard
- Body Angle: 0 º
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
