TE-CO 53821X BALL PLUNGERS IMPERIAL - STEEL BODY, NYLON BALL
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: 53821X
IMS Product Code: 1922711
Packaging: Sold Individually
Description:

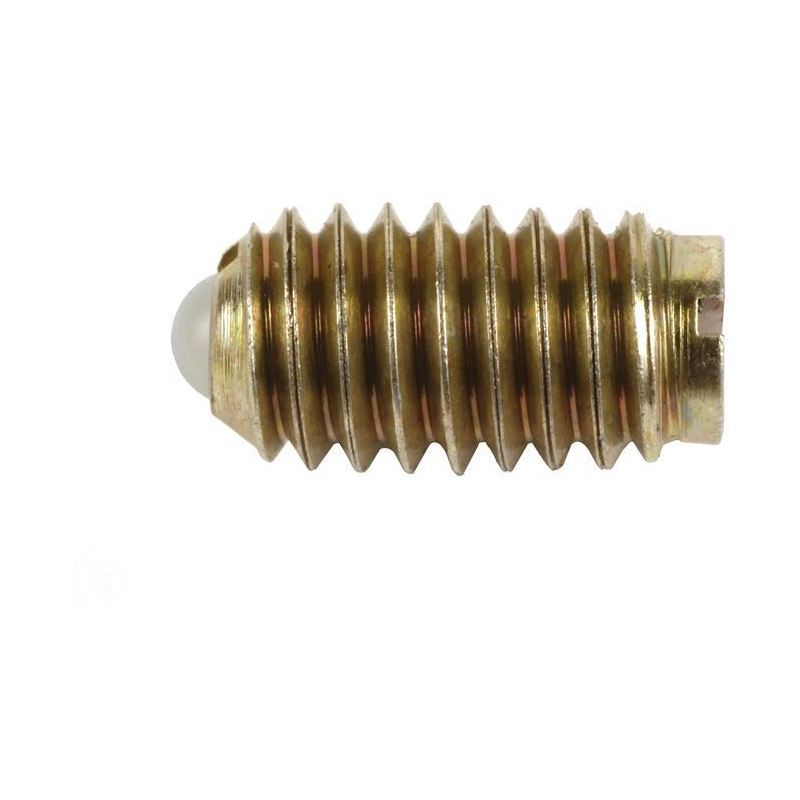

TE-CO 53821X Ball Plungers Imperial - Steel Body, Nylon Ball
- Smallest and lightest spring loaded device
- Side-load tolerant
- Controlled end forces
- Screwdriver installation
- Many sizes conform to TCMAI standards
Specifications:
- Finish: Black
- Initial End Force: 0.12 lb
- Final End Force: 0.50 lb

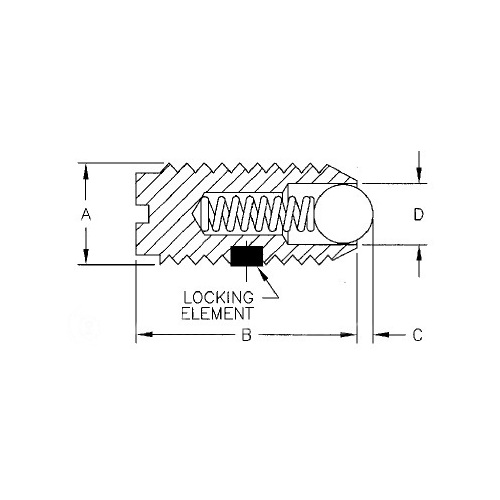

- Thread Size (A): 4-48
- Body Length (B): 0.188 in
- Projection Size (C): 0.020 in
- Ball Diameter (D): 0.062 in
- Body Material: 12L14 Steel
- Ball Material: Nylon
- Locking Element Present: No
- Type: Ball Plunger
- Weight: 0.01 lb
- Thread Type: UNF
- Threads per Inch: 48
- Lock Type: No
- Plunger Material: Nylon/Plastic
- Thread Lock Element: 0
- End Force: Standard
- Body Angle: 0 º
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
