TE-CO PWS-8110 8" SINGLE STATION PARLEC VISE
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: PWS-8110
IMS Product Code: 1922478
Packaging: Sold Individually
Description:
TE-CO PWS-8110 8" Single Station Parlec Vise
The PWS-8110 sets the standard for quality. Featuring the largest opening in its class of eleven inches and a more robust main screw that can handle higher torque loads and transmit higher clamping pressure. An angled slide and locking jaw design to prevent lifting of the moveable jaw, and the four bolt design on the stationary jaw reduces deflection by 25%.
Specifications:
- Type: Single Station
- Style: Machinable Jaws
- Clamping Pressure: 12000 lb

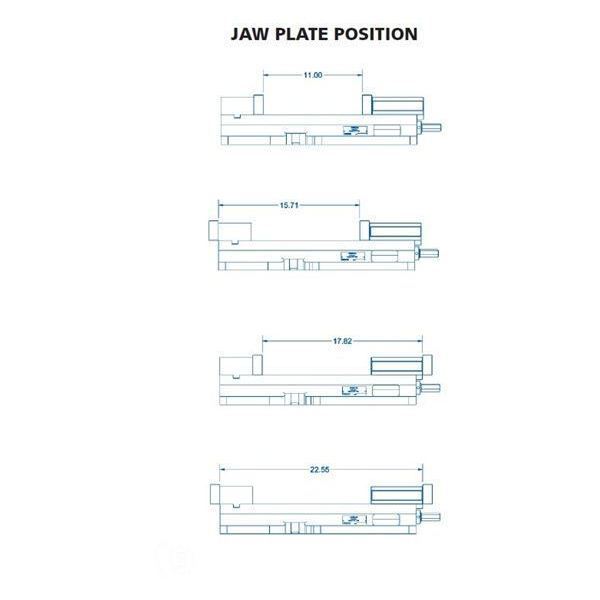

- Jaw Opening: 11.000 in
- Jaw Width: 8.000 in
- Total Length: 24.470 in
- Total Width: 11.500 in
- Total Height: 5.51 in
- Material: Ductile Iron
- Weight: 175 lb

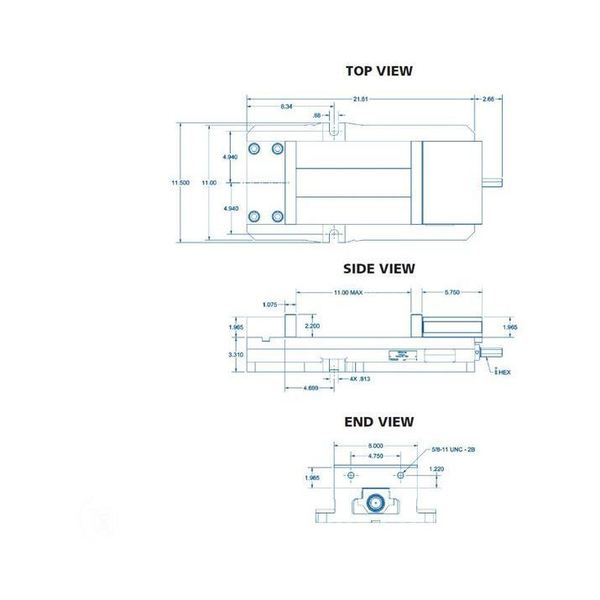

- A: 3.310 in
- G: 0.875 in
- E: 1.075 in
- Features:
- Powder coated paint resists flaking and peeling
- 80,000psi ductile iron body with increased nickel content for improved corrosion resistance
- Hardened vise bed and jaw plates
- Sealed and lubricated needle roller thrust bearing for maximum life and minimum torque
- Up to 12,000lbs. (53,379N) of clamping force
- Repeatability within .001" (0.025mm)
- Outside rails of body are machined within 0.0005" (.013mm) square to jaw
- Bed height matched to size 3.310" +/- 0.0005" (84.07mm +/- .013mm)
- Footprint and distance from the keyway to stationary jaw meets industry standard
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
