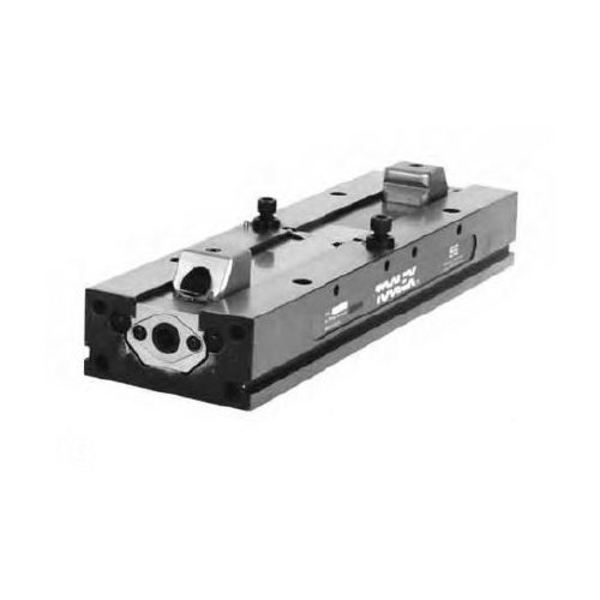

TE-CO RWS6002 RELOCK DOUBLE STATION VISE
Quick Overview
Manufactured By: TE-CO
Manufacturer Part Number: RWS6002
IMS Product Code: 1922437
Packaging: Sold Individually
Description:
TE-CO RWS6002 ReLock Double Station Vise
Bodies are manufactured from 80,000 PSI ductile cast iron, and ways are flame hardened and ground to accuracies of ± 0.0005.

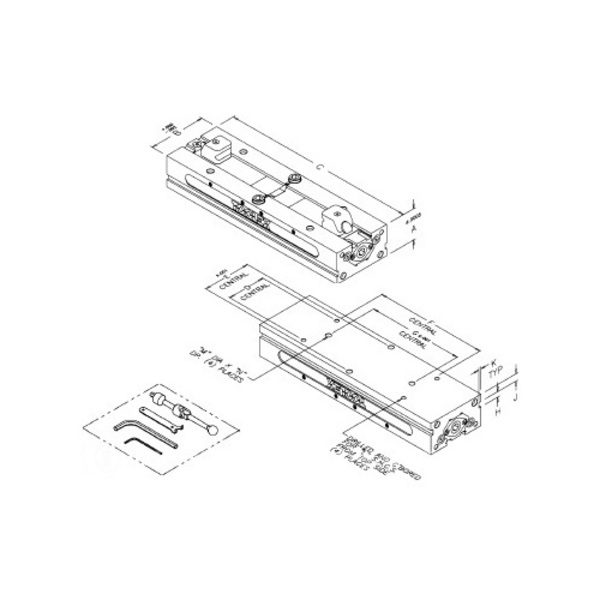

Specifications:
- Vise Size: 6 in
- Type: Vise
- Total Height (A): 3.250 in
- Total Width (B): 6.000 in
- Total Length (C): 20.500 in
- Hole Spacing - Across A (D): 4.000 in
- Hole Spacing - Across B (E): 5.000 in
- Hole Spacing A (F): 12.000 in
- Hole Spacing B (G): 10.000 in
- Groove Width (H): 0.562 in
- Groove Position (J): 0.750 in
- L: 3/8-16
- Hole Diameter A (M): 0.501 in
- Hole Depth A (N): 0.630 in
- Material: Cast Iron
- Clamping Pressure: 0 to 12000 lb
- Weight: 68.00 lb
- Style: Double Station Vise
- Haas: DM-1, DT-1, EC-1600, EC-1600ZT, MINIMILL, MINIMILL2, SMINIMILL, SMINIMILL2, UMC-750, UMC-750SS, UMC-750UMC-750SS, VF-2SS, VF-2SSYT, VF-2TR, VF-3SS, VF-3SSYT, VF-4SS, VF-5\40TR, VF-5\50TR, VF-5SS, VF-6\40TR, VF-6\50TR, VF-6SS, VM-2, VM-3, VM-6
- Mori Seiki: DURA VERTICAL 5060, DURA VERTICAL 5080, DURA VERTICAL 5100
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
