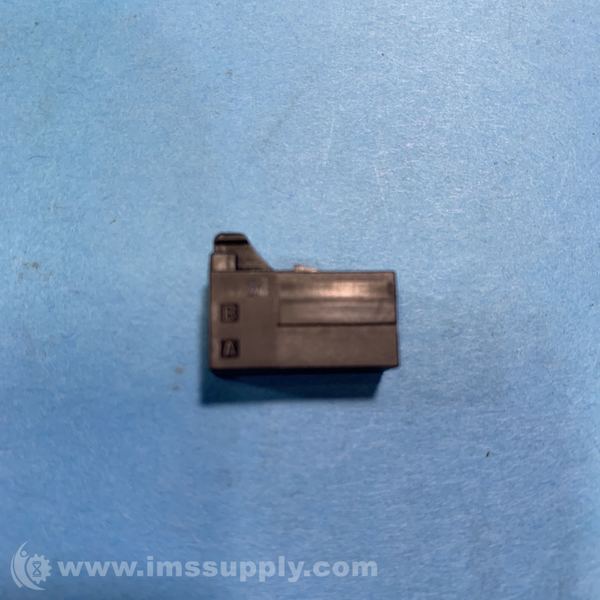

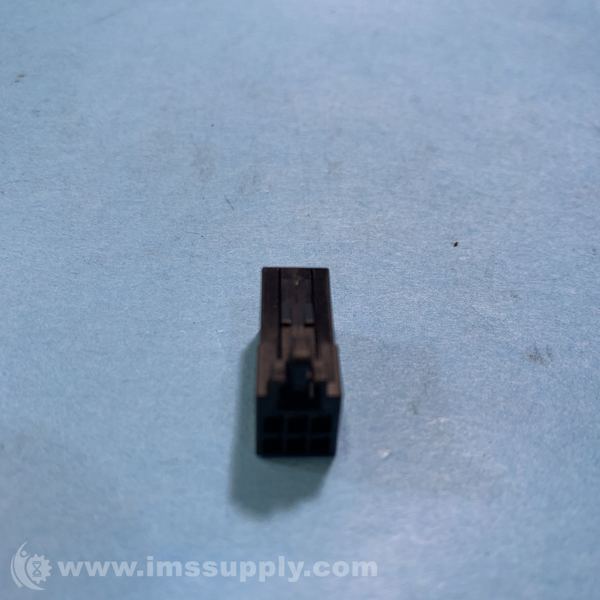

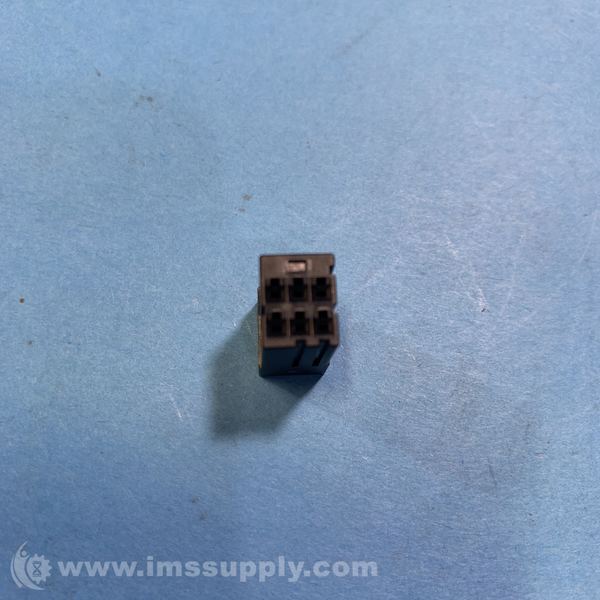

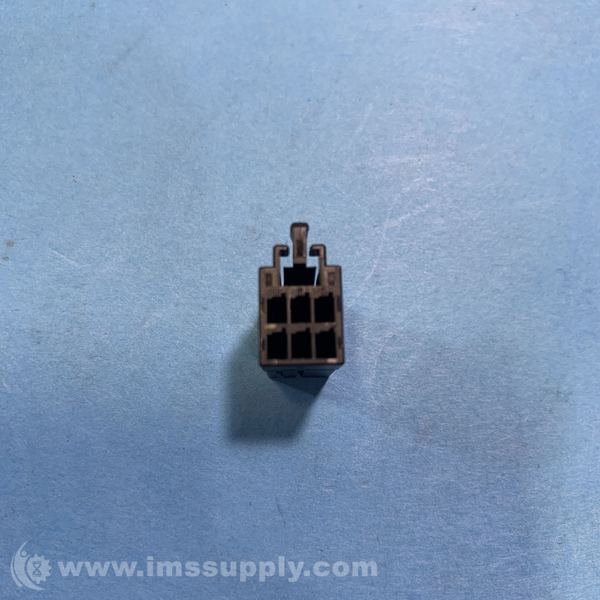

TE CONNECTIVITY 2-1318119-3 6 POSITION RECEPTACLE HOUSING
Quick Overview
Manufactured By: TE CONNECTIVITY
Manufacturer Part Number: 2-1318119-3
IMS Product Code: 1840153
Packaging: Sold Individually
Description:
TE Connectivity 2-1318119-3 6 Position Receptacle Housing
6 Position, Receptacle, Housing, Crimp, Wire-to-Board / Wire-to-Wire, UL 94V-0, 2.5 mm Centerline, 2 Row, Wire & Cable, Dynamic 2000 Series
Specifications
- Connector Product Type: Housing
- Connector & Housing Type: Receptacle
- Connector System: Wire-to-Board | Wire-to-Wire
- UL Flammability Rating: UL 94V-0
- Number of Positions: 6
- Number of Rows: 2
- Sealable: No
- Connector & Contact Terminates To: Wire & Cable
- Primary Product Color: Black
- Contact Base Material: Copper Alloy
- Contact Type: Receptacle
- Contact Current Rating (Max) (A): 5
- Termination Method to Wire & Cable: Crimp
- Strain Relief: Without
- Mating Retention: With
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Centerline (Pitch): 2.5 mm
- Housing Material: Thermoplastic GF
- Connector Length: 8.9 mm
- Connector Height: 15.78 mm
- Connector Width: 20 mm
- Row-to-Row Spacing: 3.75 mm
- Operating Temperature Range: -55 - 105 degrees C
- Circuit Application: Signal
- Packaging Quantity: 600
- Packaging Method: Bag
- Type: Housing
- Gender: Receptacle
- Number of Contacts: 6
- Termination Method: Crimp
- Terminal Pitch (mm): 2.5
- Body Orientation: Straight
- Maximum Current Rating (A): 5
- Maximum Voltage Rating: 250VAC
- Minimum Operating Temperature (degrees C): -55
- Maximum Operating Temperature (degrees C): 105
- Packaging: Bag
- Product Length (mm): 8.9
- Product Depth (mm): 15.78
- Product Height (mm): 20
- Mounting: Cable Mount
- Product Category: Heavy Duty Power Connectors & Accessories
- Series: Dynamic 2000 Series
- Connector Type: Housing
- Housing Color: Black
- Pitch: 2.5 mm
- Contact Type: Socket
- Row Spacing: 3.75 mm
- Housing Color: Black
- Standards Met: UL 94V-0
- Product Range: Dynamic D-2100 Series
- No. of Positions: 6
- For Use With: AMP Dynamic D-2100 Series Socket Contacts
- Pitch Spacing: 2.5mm
- SVHC: No SVHC
- RoHS Compliant: Yes
- RoHS Phthalates Compliant: Yes
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
