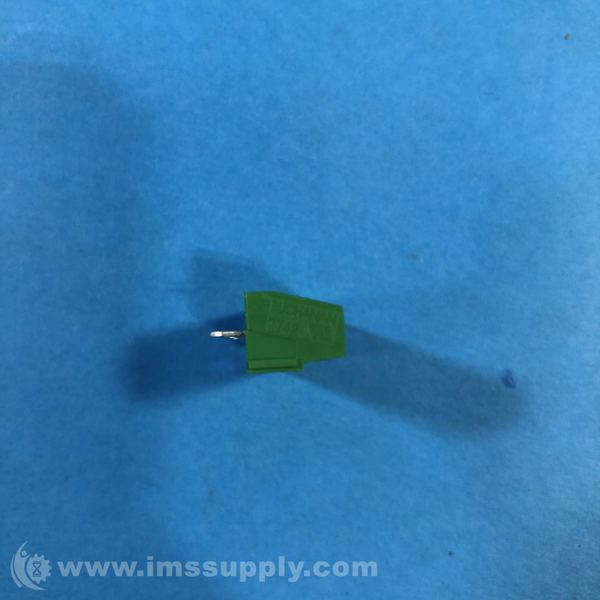

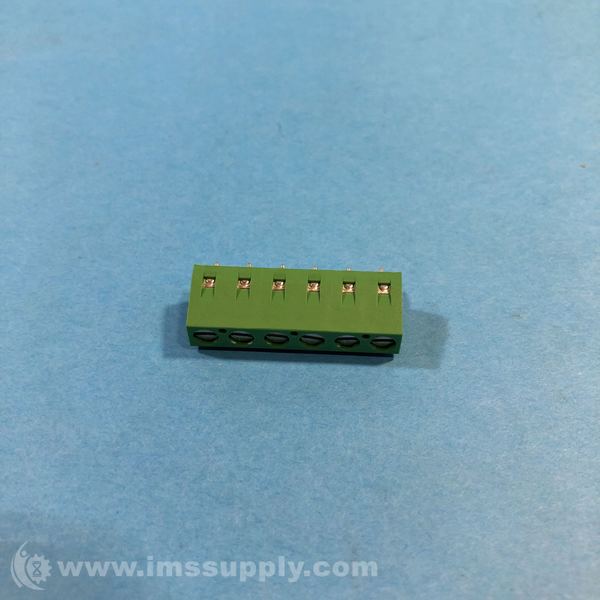

TE CONNECTIVITY 282837-6 6 POSITION PCB TERMINAL BLOCK
Quick Overview
Manufactured By: TE CONNECTIVITY
Manufacturer Part Number: 282837-6
IMS Product Code: 1916583
Packaging: Sold Individually
Description:
TE Connectivity 282837-6 6 Position PCB Terminal Block
6 Position PCB Terminal Block, Header, Wire-to-Board, 5.08 mm Centerline, 1 Row, 90° Wire Entry Angle, 30 – 16 AWG, .05 – 1.3 mm² Wire
Specifications
- Centerline (Pitch): 5.08 mm
- Number of Positions: 6
- Number of Rows: 1
- Wire Entry Angle: 90 degrees
- Wire Entry Location: Side
- Operating Voltage (VAC): 300
- Primary Product Color: Green
- Product Orientation: Vertical
- Contact Base Material: Brass
- Contact Mating Area Plating Material: Tin (Sn)
- Contact Current Rating (Max) (A): 13.5
- Termination Post & Tail Length: 3.5 mm
- Termination Method to PCB: Through Hole - Solder
- Termination Method to Wire & Cable: Clamp & Screw
- Thread Size: M3
- Screw Material: Brass
- Screw Plating Material: Nickel
- Connector Mounting Type: Board Mount
- Housing Material: PA 66
- Wire Size (AWG): 30 – 16
- Wire Size (mm²): .05 – 1.3
- Operating Temperature Range: -40 – 110 °C
- Circuit Application: Power & Signal
- Type: Euro Style
- Wire Connection Method: Screw Clamp
- Style: Wire to Board
- Mount Angle: Vertical
- Side Stackable: No
- Closed End: Without
- Interlock: With
- Screw Flange: Without
- Flammability Rating: UL94V-0
- Depth: 8.2mm
- Length: 30.48mm
- Height: 10mm
- Series: Buchanan
- Wire Protection: Yes

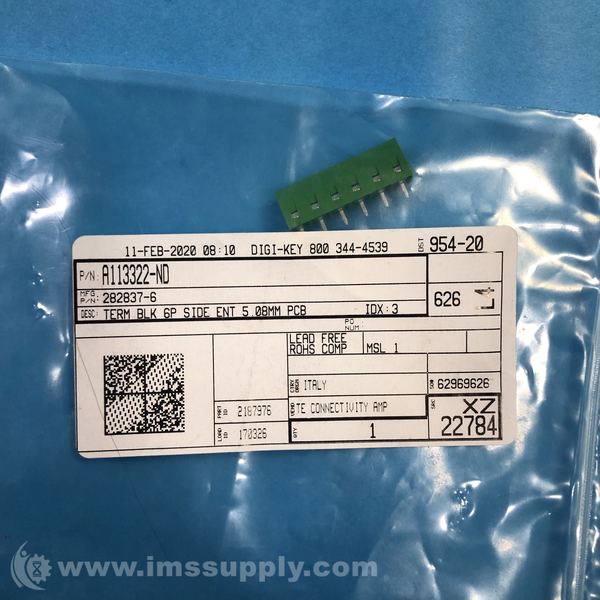

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
