TELEMATIC XS1M18MA250K INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: TELEMATIC
Manufacturer Part Number: XS1M18MA250K
IMS Product Code: 2138425
Packaging: Sold Individually
Description:

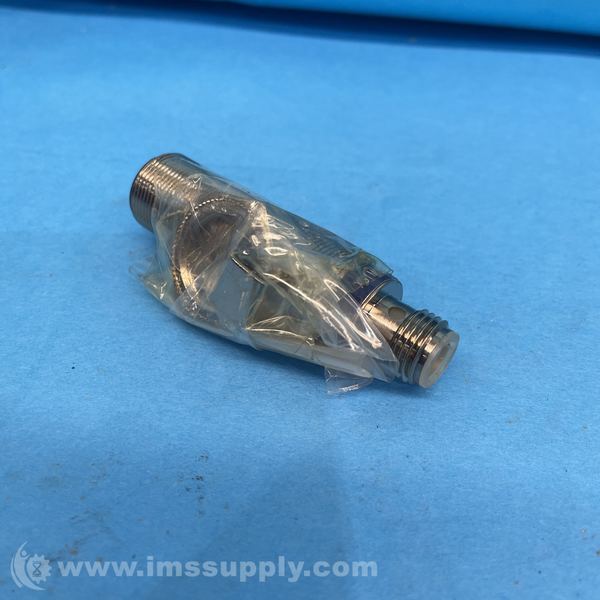

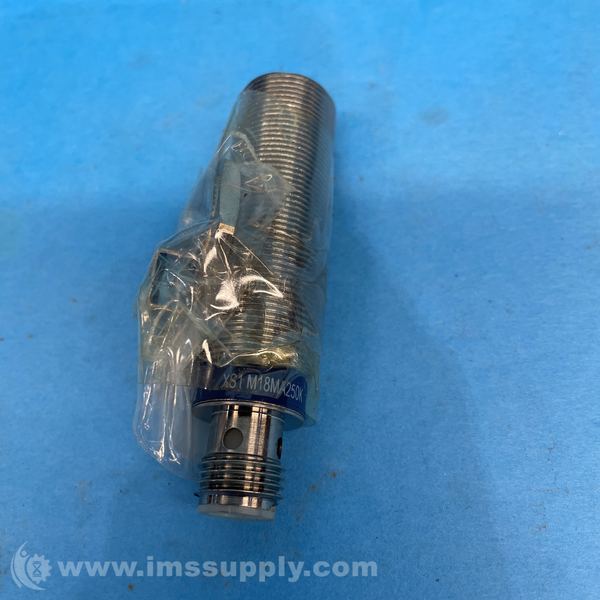

Telematic XS1M18MA250K Inductive Proximity Sensor
Cylindrical inductive proximity sensor with M18 thread, 72mm length, nickel-plated brass body, and 5mm sensing distance. Operates at 24-240V AC/DC, 2-wire connection.
Specifications
- body type: Fixed
- connector type: Three-Pin, Male

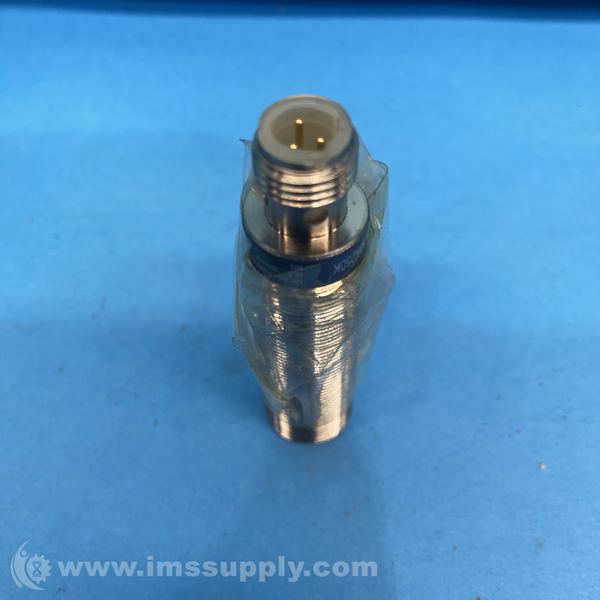

- connection type: 3 Pin 1/2 Inch-20 TPI UNF Male Micro Connector
- detection distance: 5mm
- device application: 2-wire DC short-circuit protection
- differential travel: 1...15 % of Sr
- discrete output function: 1 NO
- electrical connection: Male connector 1/2"20 UNF, 3 pins
- enclosure material: Nickel plated brass
- front material: PPS
- ip degree of protection: IP67
- material: Metal
- output circuit type: AC/DC
- output signal type: Discrete
- protection type: Short-circuit protection multi voltage
- residual current: 1.5 mA open state
- sensor design: Cylindrical M18
- sensor type: Inductive proximity sensor
- series name: General purpose
- size: 72 mm
- switching capacity: 5...300 mA AC with overload and short-circuit protection, 5...200 mA DC with overload and short-circuit protection
- thread type: M18 x 1
- type of output signal: Discrete
- vibration resistance: 25 gn amplitude = +/- 2 mm (f = 10-55 Hz)
- wiring configuration: 2-wire
- wiring technique: 2-wire
- [us] rated supply voltage: 24...210 V DC, 24...240 V AC 50/60 Hz
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
