TELEMECANIQUE CA2KN31G7 CONTROL RELAY
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: CA2KN31G7
IMS Product Code: 2149750
Packaging: Sold Individually
Description:

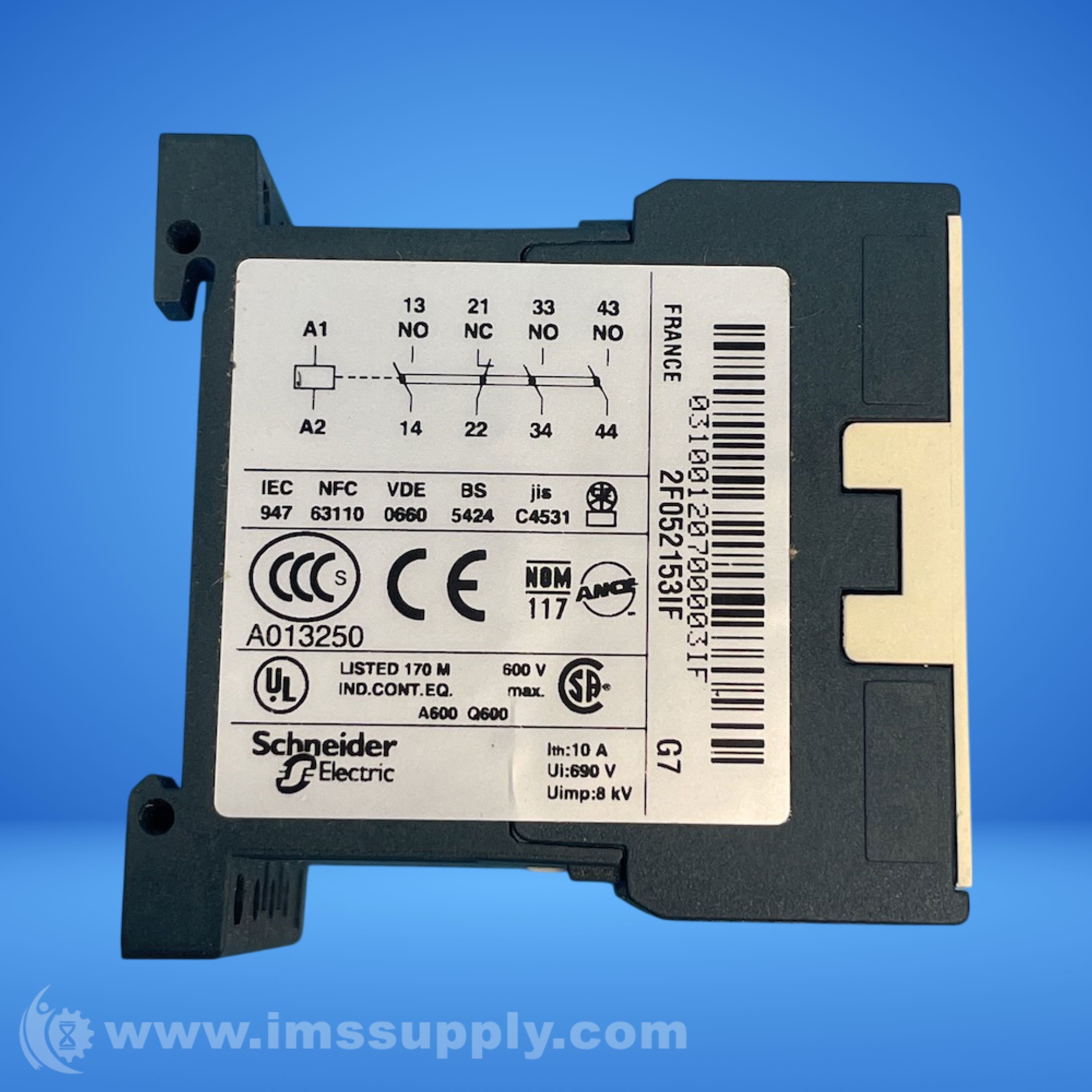

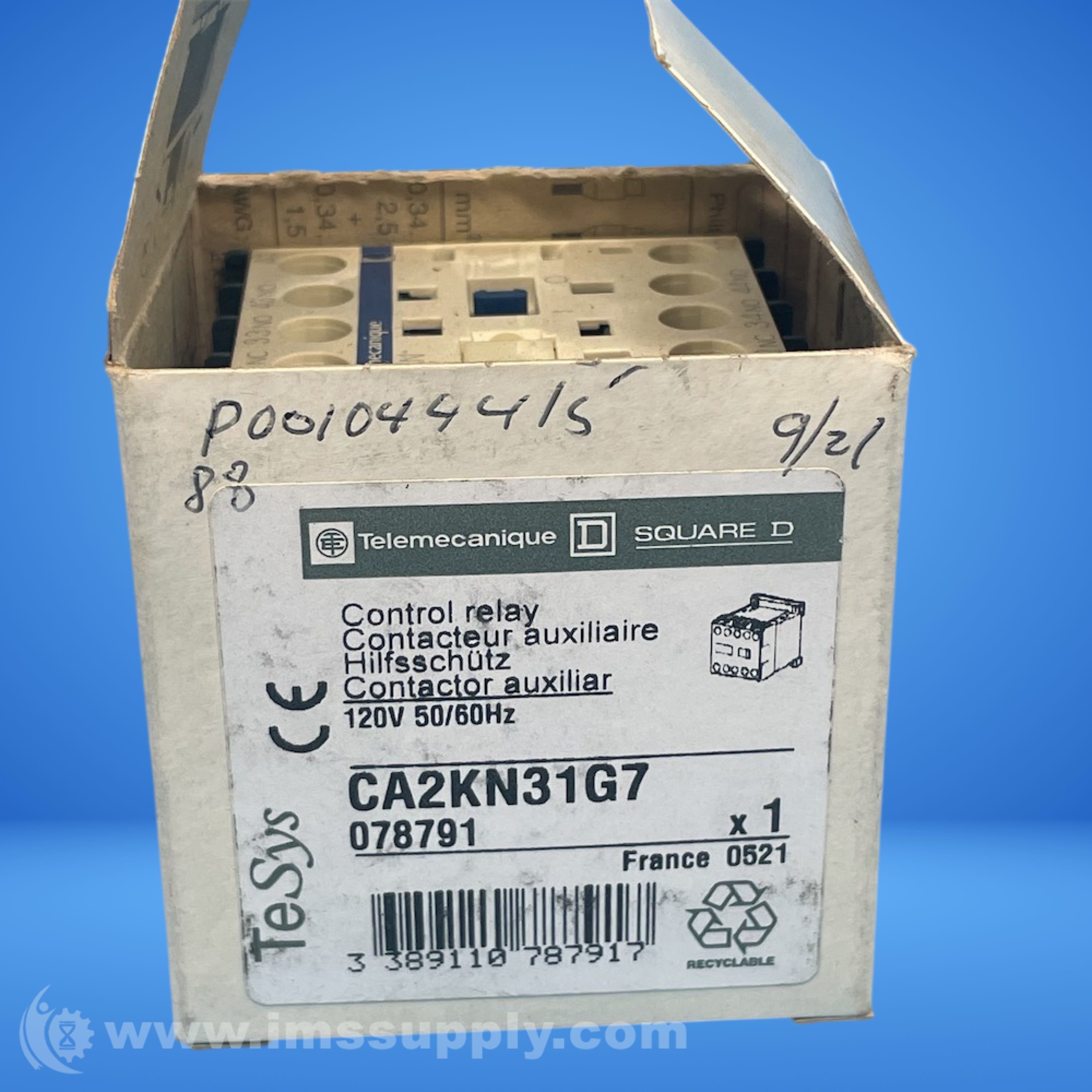

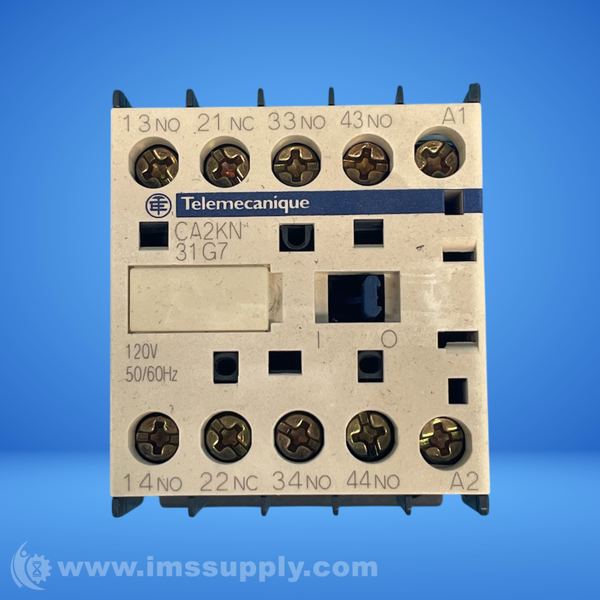

Telemecanique CA2KN31G7 Control Relay
IEC Control Relay, 3 NO/1 NC contacts, 10A, 120VAC 50/60Hz coil
Specifications
- Coil Voltage: 120V AC
- Current Rating: 10 A
- Contact Form: 3NO/1NC
- Relay Style: IEC
- Mounting Style: DIN Rail and Surface
- Power Consumption: 4.5 VA
- IP Rating: IP2X
- Frequency: 50/60 Hz
- Body Height: 2.28 in
- Body Width: 1.77 in
- Body Depth: 2.24 in
- Electrical Connection Type: Screw
- Number of Terminals: 10
- Response Time: 10 to 20 msec (Coil De-Energisation and NO Opening); 10 to 20 msec (Coil Energisation and NO Closing); 15 to 25 msec (Coil De-Energisation and NC Closing); 5 to 15 msec (Coil Energisation and NC Opening)
- Contact Material: Silver Nickel
- Contact Rating (AC): 10 A @ 120/240/480/600V
- Contact Rating (DC): 2 A @ 125/250/600V
- Minimum Operating Temperature: -13 °F
- Maximum Operating Temperature: 122 °F
- Standards: CSA Certified; RoHS Compliant; UL Listed
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, March 9, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
