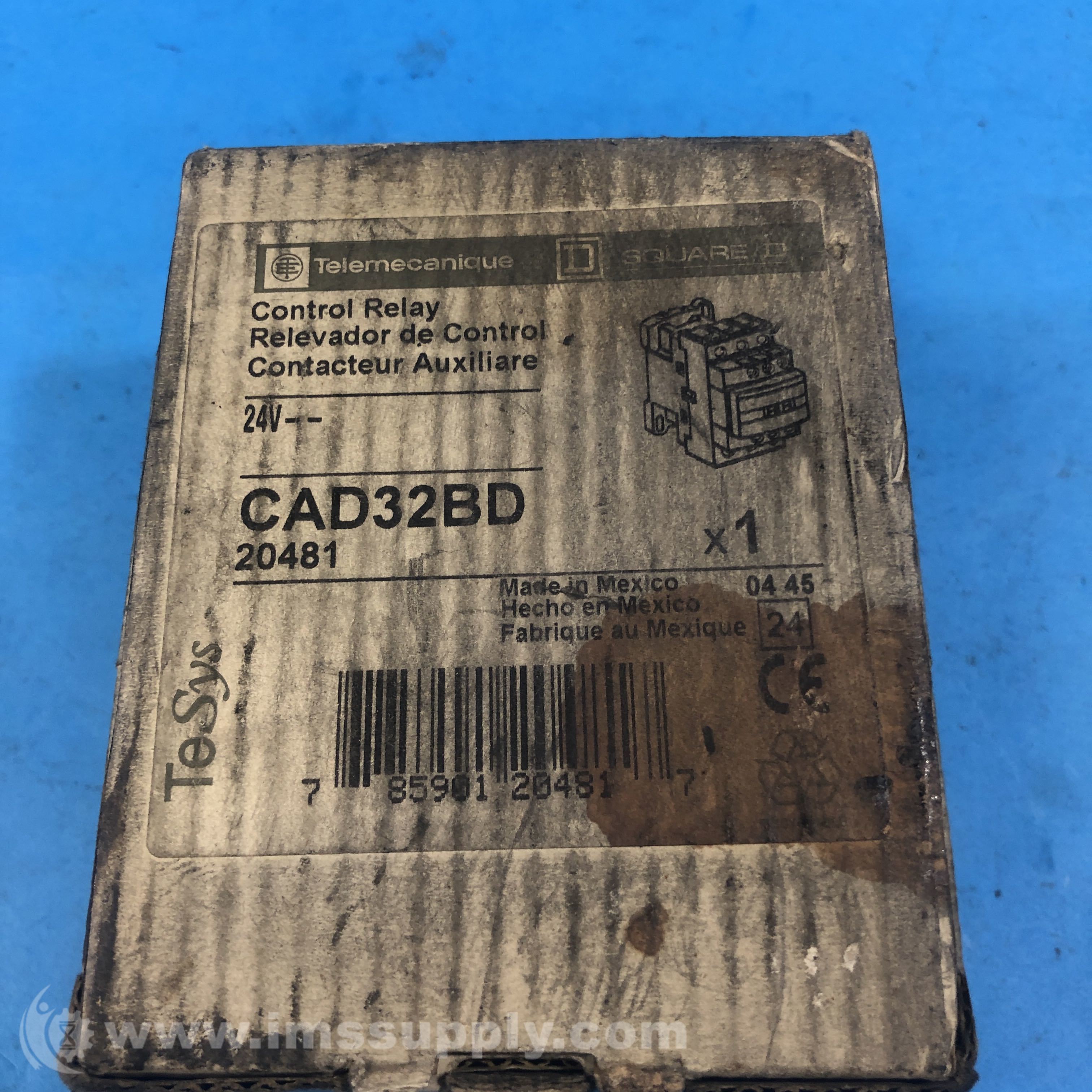

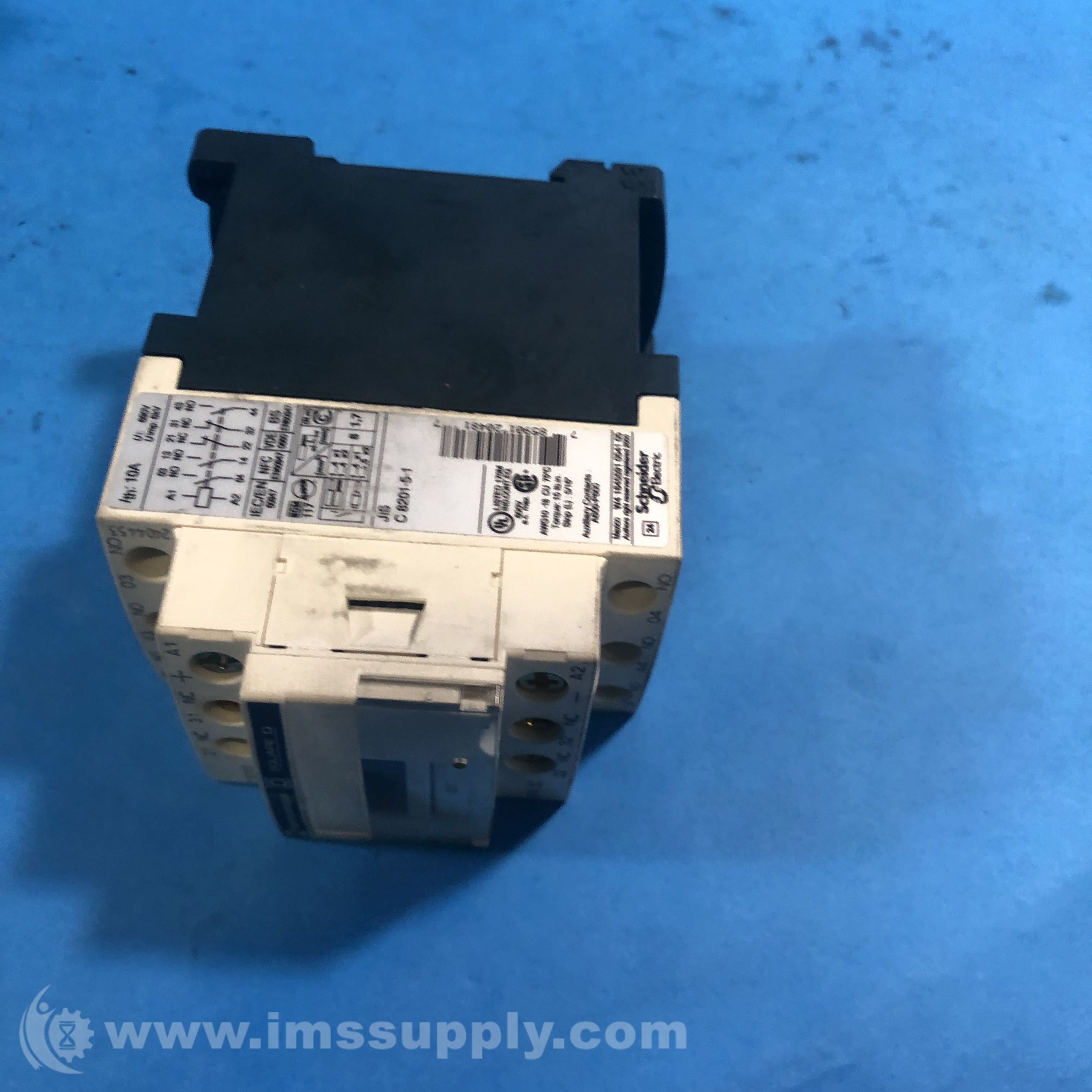

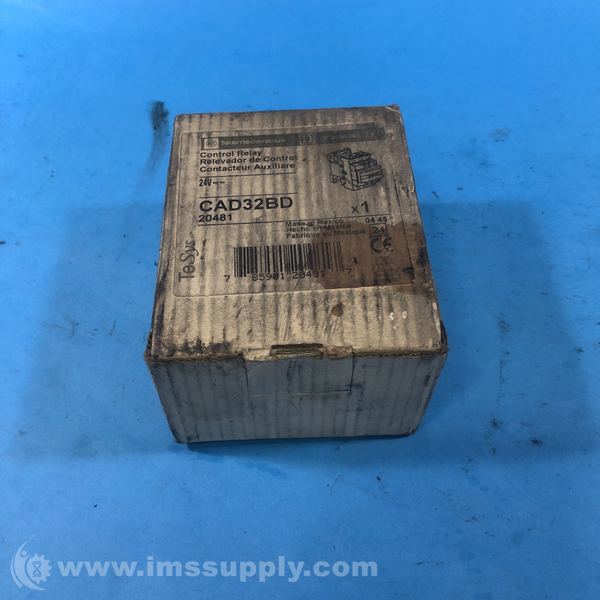

TELEMECANIQUE CAD32BD CONTROL RELAY
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: CAD32BD
IMS Product Code: 1738702
Packaging: Sold Individually
Description:
Telemecanique CAD32BD Control Relay
5-pole IEC industrial control relay with DC coil, 3NO-2NC contacts, 24VDC coil voltage, 10A current rating, screw clamp terminals, DIN rail mount.
Specifications
- Ampere Rating: 10A
- Contact Configuration: 3 NO/2 NC
- Contact Material: Silver-Nickel
- Contact Rating: A600 - Q600
- Coil Voltage: 24VDC
- Maximum Voltage Rating: 600VAC
- Mounting Type: Din Rail(35mm)/Panel
- Terminal Type: Screw Clamp
- Type: TeSys D
- Depth: 3.66 Inches
- Height: 3.03 Inches
- Width: 1.77 Inches
- Weight: 1.28 Pounds
- Approvals: UL Listed CSA Certified CE Marked IEC Rated
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 18 In Stock
Ships on Monday, March 9, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
