TELEMECANIQUE GFW-1 PRESSURE SWITCH
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: GFW-1
IMS Product Code: 2151075
Packaging: Sold Individually
Description:

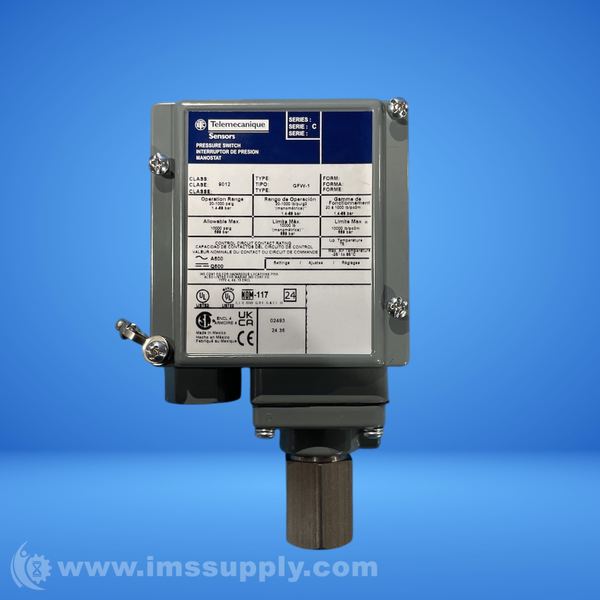

Telemecanique GFW-1 Pressure Switch
Electromechanical pressure switch with fixed scale, 1 threshold, 20 to 1000 PSIG range.
Specifications
- Class: 9012
- Type: GFW-1
- Operation Range: 20-1000 psig
- Allowable Max: 1000 psig
- Control Circuit Contact Rating: 4A 600V
- Settings: 24
- Nom: 117 24
- Contacts type and composition: NC-NO, 2 SPDT-DB, Form Z, snap action, silver nickel contacts
- Fluid connection type: 0.25 inch 18 NPTF
- Pressure switch type of operation: Detection of 1 single threshold
- Scale type: Fixed
- Enclosure material: Die cast aluminium alloy
- Pressure actuator: Piston
- Materials in contact with fluid: 440 stainless steel, Viton fluorocarbon
- Standards: CE, CSA C22.2 No 14, UL 508
