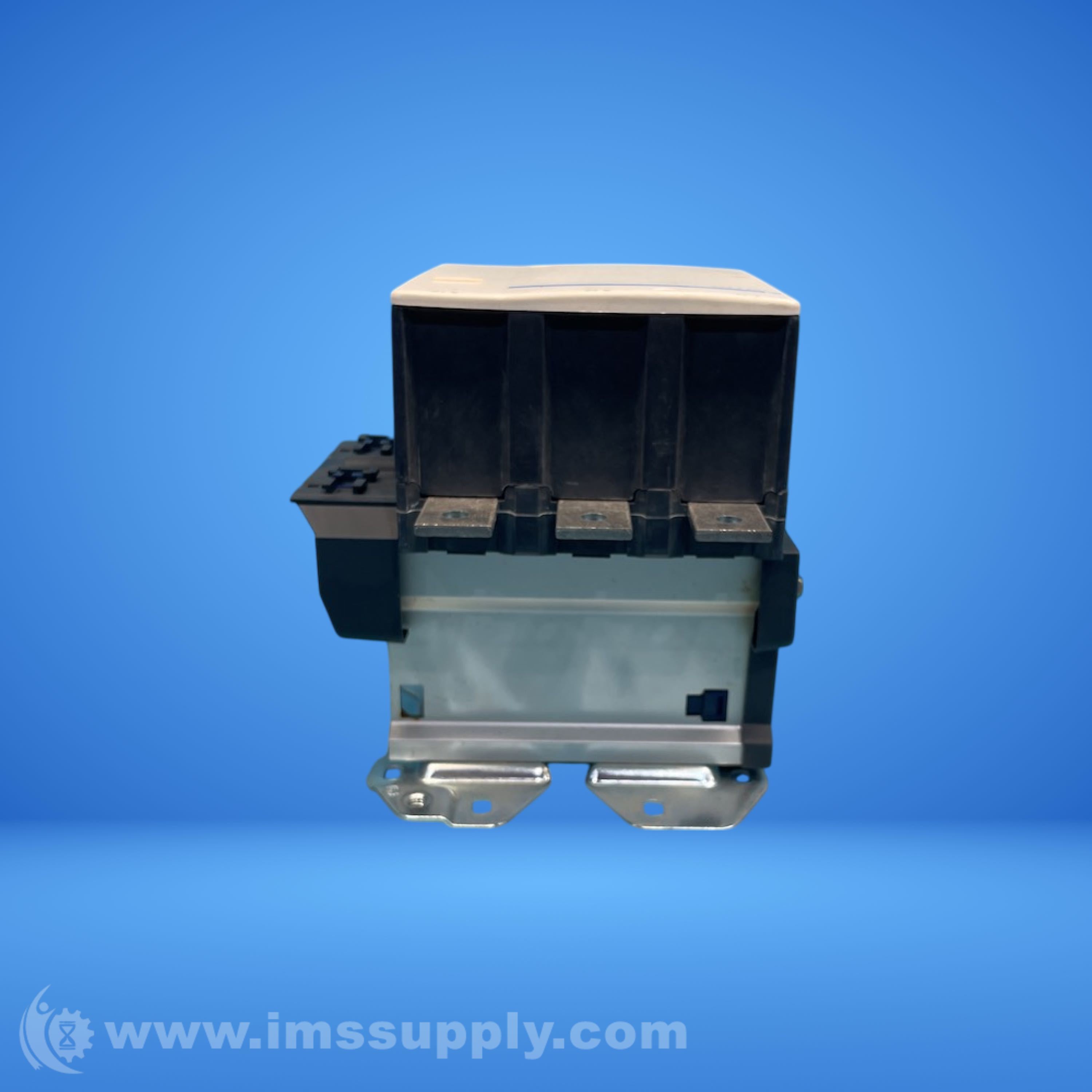

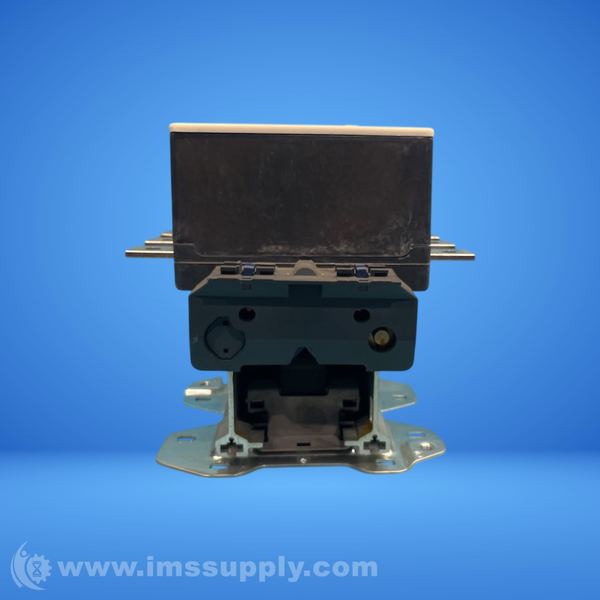

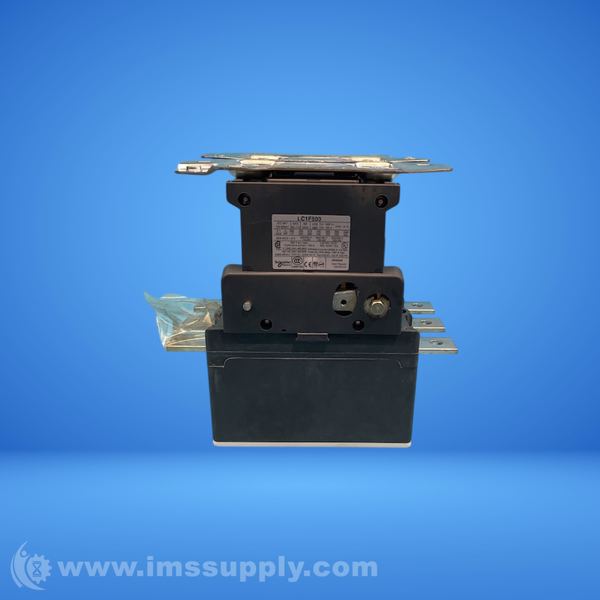

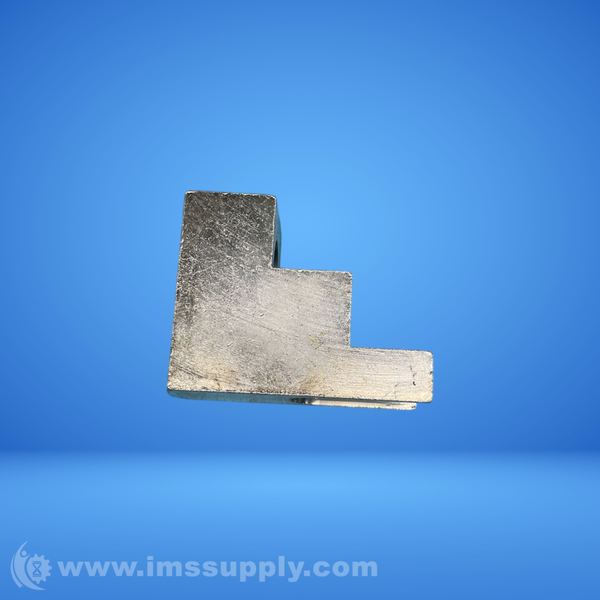

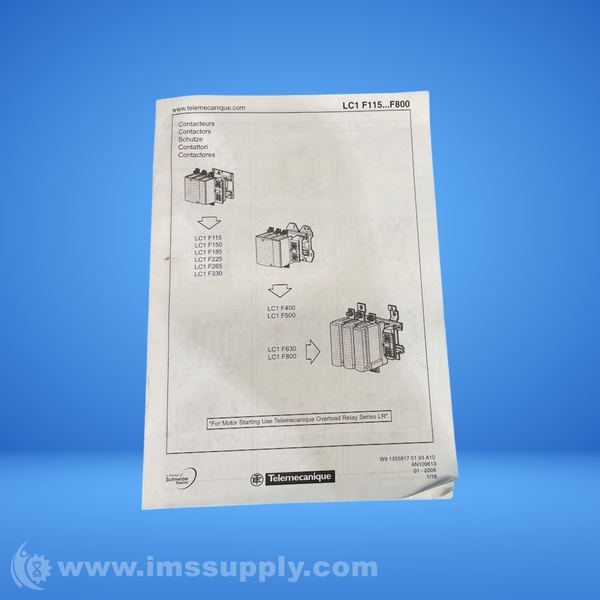

TELEMECANIQUE LC1-F500 CONTACTOR
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: LC1-F500
IMS Product Code: 2125201
Packaging: Sold Individually
Description:
Telemecanique LC1-F500 Contactor
Telemecanique Contactor
Specifications

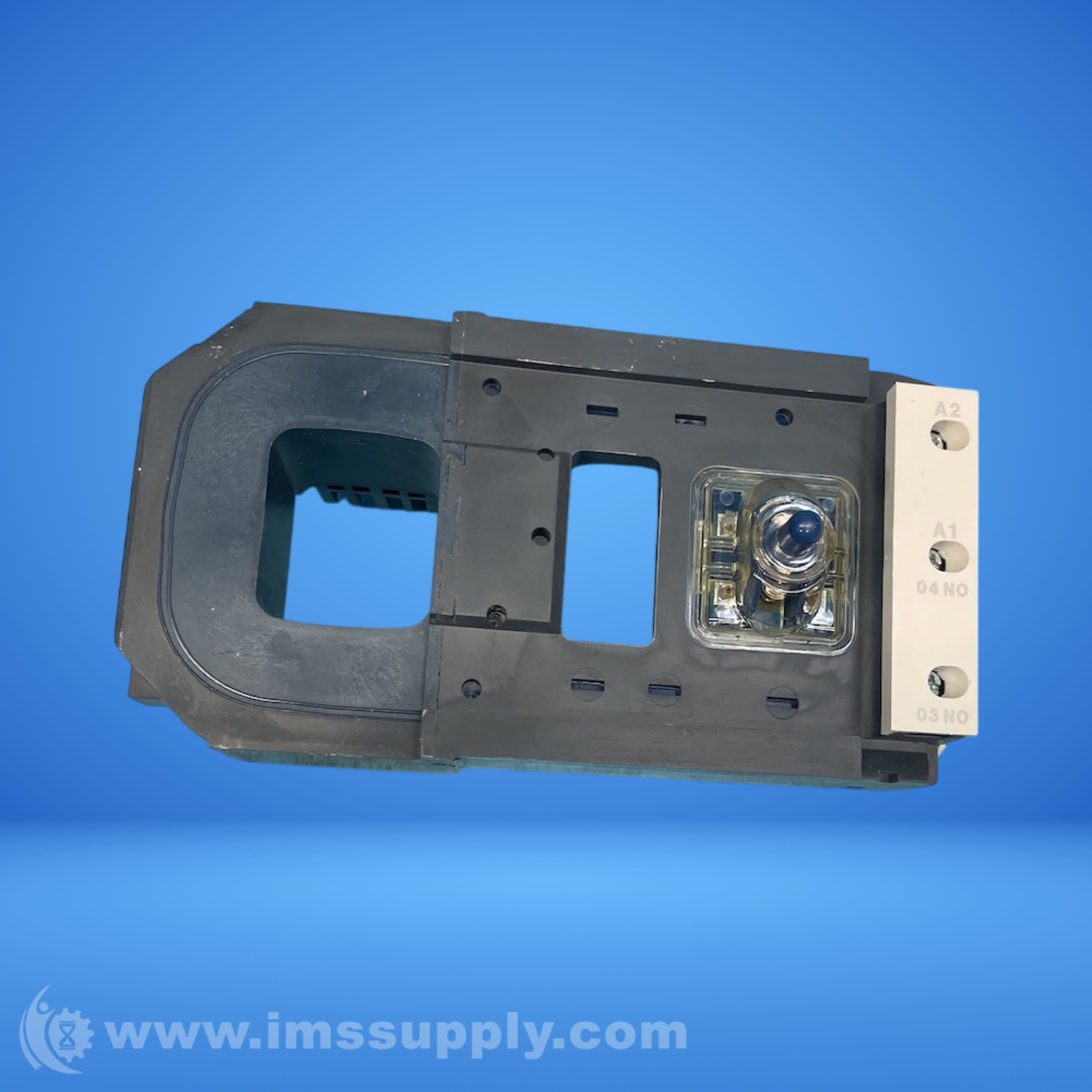

- coil voltage: 230V AC
- contact rating: 500A
- number of poles: 3
- Product weight: 21.5 lb(US) (9.75 kg)
- IP degree of protection: IP20 front face with shrouds (ordered separately) conforming to IEC 60529IP20 front face with shrouds (ordered separately) conforming to VDE 0106
- Standards: EN 60947-4-1IEC 60947-1IEC 60947-4-1EN 60947-1JIS C8201-4-1
- Device short name: LC1F
- Width: 9.17 in (233 mm)
- Height: 9.37 in (238 mm)
- Depth: 9.13 in (232 mm)
- Protective treatment: TH
- [Ui] rated insulation voltage: 1000 V conforming to IEC 60947-4-11500 V conforming to VDE 0110 group C
- [Uimp] rated impulse withstand voltage: 8 kV
- Operating altitude: 9842.52 ft. (3000 m) without derating in temperature
- Tightening torque: Power circuit: 309.73 lbf.in (35 N.m)

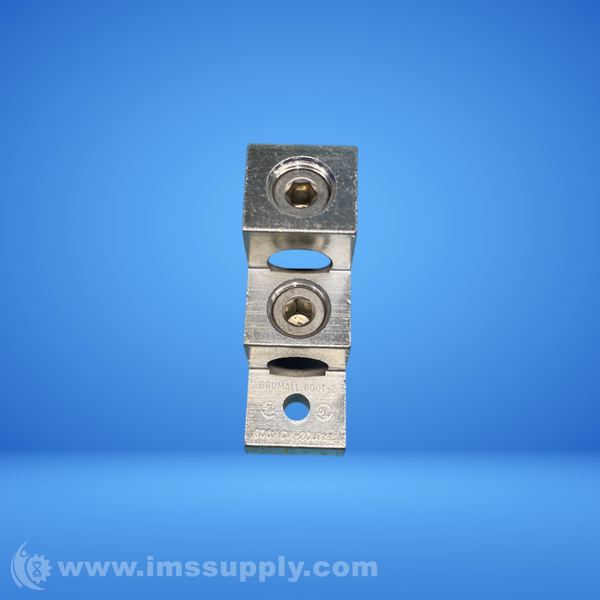

- Connections - terminals: Power circuit: lugs-ring terminals 2 cable(s) 0.37 in² (240 mm²)Power circuit : bolted connectionPower circuit : bar 2 x (40 x 5 mm)
- Range: TeSys
- Mounting support: Plate
- [Ith] conventional free air thermal current: 700 A at <= 104 °F (40 °C)
- System Voltage: <= 1000 V AC 50/60 Hz<= 460 V DC
- motor power kW: 250 kW at 380...400 V AC 50/60 Hz AC-3280 kW at 415 V AC 50/60 Hz AC-3295 kW at 440 V AC 50/60 Hz AC-3355 kW at 500 V AC 50/60 Hz AC-3335 kW at 1000 V AC 50/60 Hz AC-380 kW at 400 V AC 50/60 Hz AC-4147 kW at 220...240 V AC 50/60 Hz AC-3335 kW at 660...690 V AC 50/60 Hz AC-3
- [Ie] rated operational current: 700 A (<= 104 °F (40 °C)) at <= 440 V AC AC-1500 A (<= 131 °F (55 °C)) at <= 440 V AC AC-3
- Utilization category: AC-4AC-3AC-1
- Poles description: 3P
- Overvoltage category: III
- Associated fuse rating: 500 A aM at <= 440 V800 A gG at <= 440 V
- Product or component type: Contactor
- Ambient air temperature for operation: 23...131 °F (-5...55 °C)
- Irms rated making capacity: 5000 A AC conforming to IEC 60947-4-1
- Ambient air temperature for storage: -76...176 °F (-60...80 °C)
- Contactor application: Motor controlResistive load
- Rated breaking capacity: 4000 A conforming to IEC 60947-4-1
- Permissible ambient air temperature around the device: -40...158 °F (-40...70 °C)
- [Icw] rated short-time withstand current: 4200 A <= 104 °F (40 °C) 10 s3200 A <= 104 °F (40 °C) 30 s2400 A <= 104 °F (40 °C) 1 min1500 A <= 104 °F (40 °C) 3 min1200 A <= 104 °F (40 °C) 10 min
- Mechanical robustness: Shocks contactor open 9 Gn for 11 msVibrations contactor open 2 Gn, 5...300 HzVibrations contactor closed 4 Gn, 5...300 HzShocks contactor closed 15 Gn for 11 ms
- Pole contact composition: 3 NO
- Average impedance: 0.18 mOhm at 50 Hz - Ith 700 A
- Power dissipation per pole: 45 W AC-388 W AC-1
- Product certifications: CSARINAABSDNVBVRMRoSLROS (Lloyds register of shipping)ULCB
