TELEMECANIQUE LC1F115 CONTACTOR
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: LC1F115
IMS Product Code: 1927180
Packaging: Sold Individually
Description:

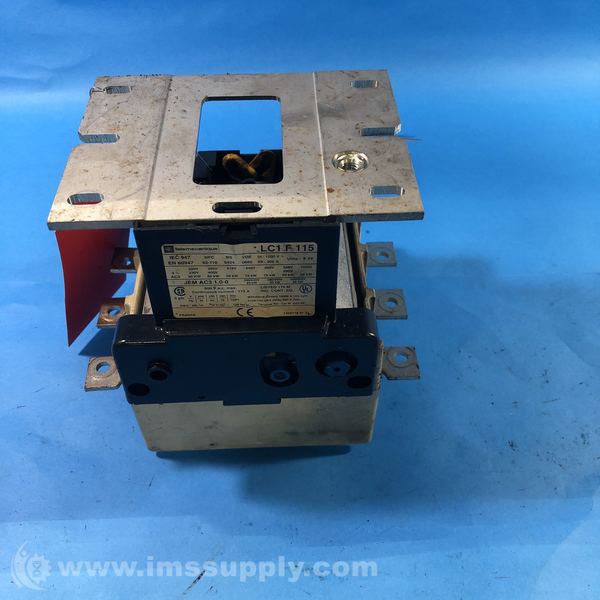

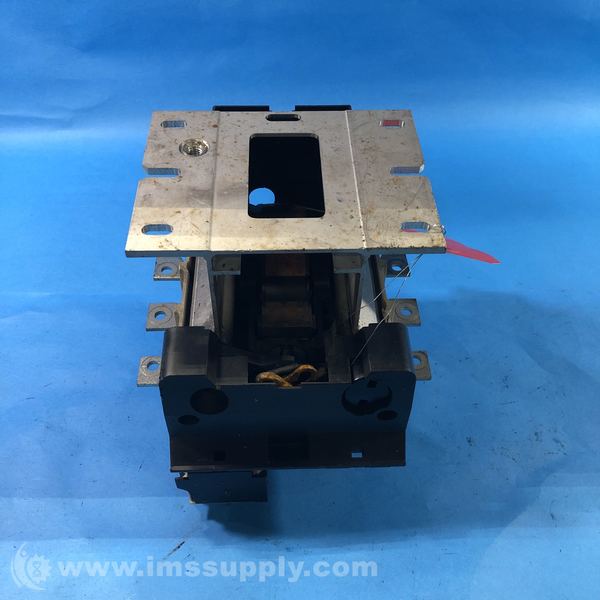

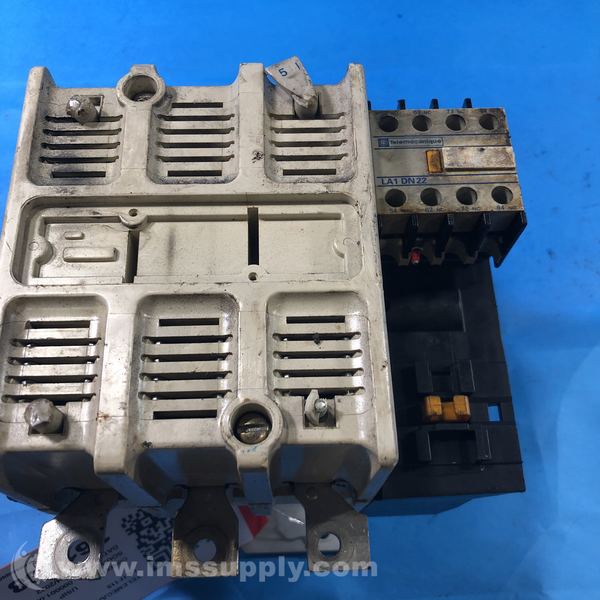

Telemecanique LC1F115 Contactor
3 pole contactor, 59kW 115A 220V, IEC 947 compliant, with features such as continuous current rating of 175A and rated impulse withstand voltage of 8 kV.
Specifications
- coil voltage: 380-480V
- continuous current rating: 175A
- rated impulse withstand voltage: 8 kV
- conventional free air thermal current: 315 A at 104 deg F
- rated breaking capacity: 1800 A
- associated fuse rating: 315 A aM at 440 V/250 A gG at 440 V
- average impedance: 0.32 MOhm at 50 Hz to 200 A
- rated insulation voltage: 1000 V/1500 V
- tightening torque power circuit: 88-1/2 in-lb
- operating time: 20 to 35 ms closing, 7 to 15 ms opening
- operating rate: 2400 cycles/hr at 131 deg F
- adjustable range: 300-500A
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 34 minutes.
