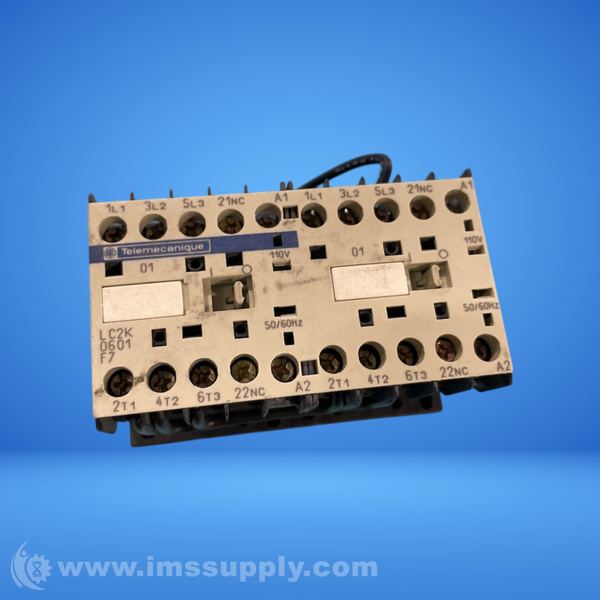

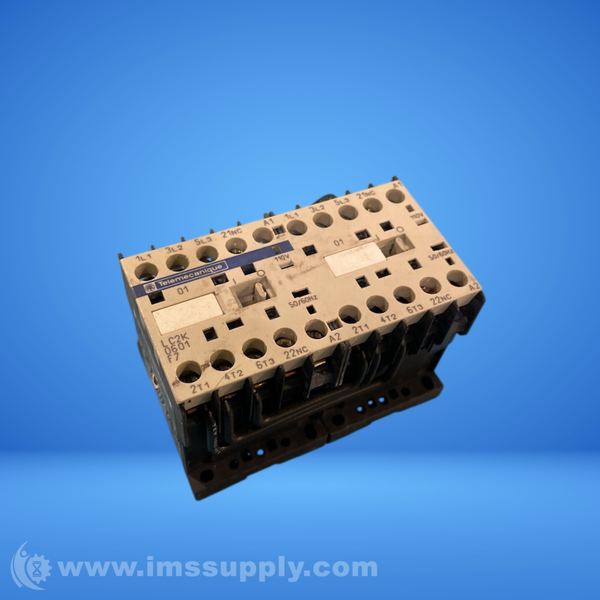

TELEMECANIQUE LC2K0601F7 REVERSING CONTACTOR
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: LC2K 0601 F7
IMS Product Code: 2150746
Packaging: Sold Individually
Description:
Telemecanique LC2K0601F7 Reversing Contactor
Reversing contactor - 3P - AC-3 <= 440 V 6 A - 1 NC - 110 V AC coil
Specifications
- range: TeSys K
- product_type: Reversing contactor
- poles_description: 3P
- pole_contact_composition: 3 NO
- Ue: 690 V AC 50/60 Hz
- Ie: 6 A
- motor_power_kW: 1.5 kW
- control_type: AC
- control_circuit_type: AC 50/60 Hz
- width: 90 mm
- height: 58 mm
- depth: 57 mm
- product_weight: 0.39 kg
- protective_treatment: TC
- ip_degree_of_protection: IP20
- standards: IEC 60947
- Ui: 690 V
- Uimp: 8 kV
- operating_altitude: 2000 m
- mechanical_durability: 5 Mcycles
- tightening_torque: 1.3 N.m
- connections_terminals: Screw clamp terminals
- mounting_support: Rail/Plate
- Ith: 20 A
- system_voltage: 690 V AC 50/60 Hz
- operating_rate: 3600 cyc/h
- Uc: 110 V AC 50/60 Hz
- electrical_durability: 1.3 Mcycles
- insulation_resistance: > 10 MOhm
- utilization_category: AC-3
- control_circuit_voltage_limits: 0.2...0.75 Uc/0.8...1.15 Uc
- overvoltage_category: III
- operating_time: 10...20 ms
- associated_fuse_rating: 25 A gG/10 A gG
- inrush_power_VA: 30 VA
- hold_in_power_VA: 4.5 VA
- ambient_air_temperature_operation: -25...50 degrees C
- ambient_air_temperature_storage: -50...80 degrees C
- auxiliary_contacts_type: 1 NC
- signaling_circuit_frequency: <= 400 Hz
- flame_retardance: V1
- minimum_switching_current: 5 mA
- minimum_switching_voltage: 17 V
- device_presentation: Preassembled with reversing power busbar
- non_overlap_distance: 0.5 mm
- power_range: 0.55...3 kW
- contactor_coil_voltage: 110 V AC
- auxiliary_contact_composition: 1 NC
- Irms: 110 A
- rated_breaking_capacity: 110 A
- Icw: 20 A/90 A
- interlocking_type: Mechanical
- product_certifications: UL/CSA
- safety_reliability_level: B10d = 1369863 cycles/B10d = 20000000 cycles
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
