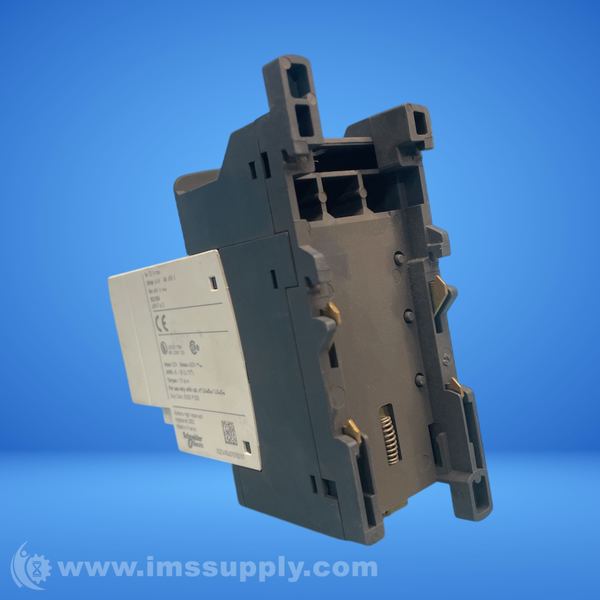

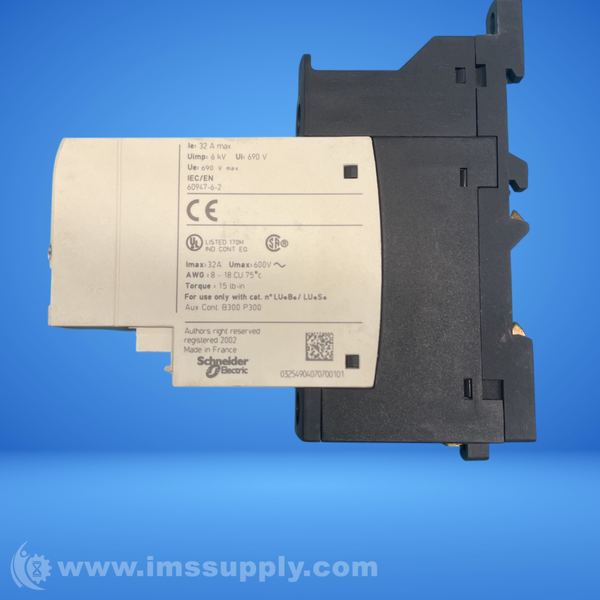

TELEMECANIQUE LU6MB0FU REVERSER BLOCK
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: LU6MB0FU
IMS Product Code: 2133819
Packaging: Sold Individually
Description:
Telemecanique LU6MB0FU Reverser Block
Reverser block for side mounting, TeSys U, coil 110-240V AC/DC
Specifications
- product or component type: Reverser block
- mounting type: Side mounting
- mounting mode: Rail
- current rating: 38A
- voltage rating: 690V
- coil voltage: 110-240V AC/DC
- range: TeSys
- device short name: LU6MB
- protective treatment: TH conforming to IEC 60068
- ip degree of protection: IP20 conforming to IEC 60947-1 (front panel and wired terminals)
- standards: UL 508 type E, with phase barrier
- rated insulation voltage: 600 V conforming to UL 508
- rated impulse withstand voltage: 6 kV conforming to IEC 60947-6-2
- operating altitude: 2000 m
- tightening torque: Control circuit: 0.8…1.2 N.m flat screwdriver 5 mm
- connections - terminals: Control circuit: screw clamp terminals 1 cable(s) 0.34…1.5 mm² (external diameter: 3 mm) flexible with cable end
- control circuit voltage: 110...220 V DC
- shock resistance: 10 gn power poles open conforming to IEC 600-68-2-27
- vibration resistance: 2 gn (f= 5…300 Hz) power poles open conforming to IEC 600-68-2-27
- operating time: 150 ms with change of direction
- network frequency: 40...60 Hz
- inrush restraint duration: 25 ms AC 50/60 Hz
- current consumption: 1000 mA at 110...220 V DC I maximum while closing
- net weight: 0.425 kg
- ambient air temperature for operation: -25…60 degrees C with LUCM
- fire resistance: 960 degrees C parts supporting live components conforming to IEC 60695-2-12
- resistance to electrostatic discharge: 8 kV level 3, in open air conforming to IEC 61000-4-2
- resistance to radiated fields: 10 V/m level 3 conforming to IEC 61000-4-3
- resistance to fast transients: 2 kV class 3 serial link conforming to IEC 61000-4-4
- non-dissipating shock wave: 1 kV serial mode conforming to IEC 60947-6-2
- immunity to radioelectric fields: 10 V conforming to IEC 61000-4-6

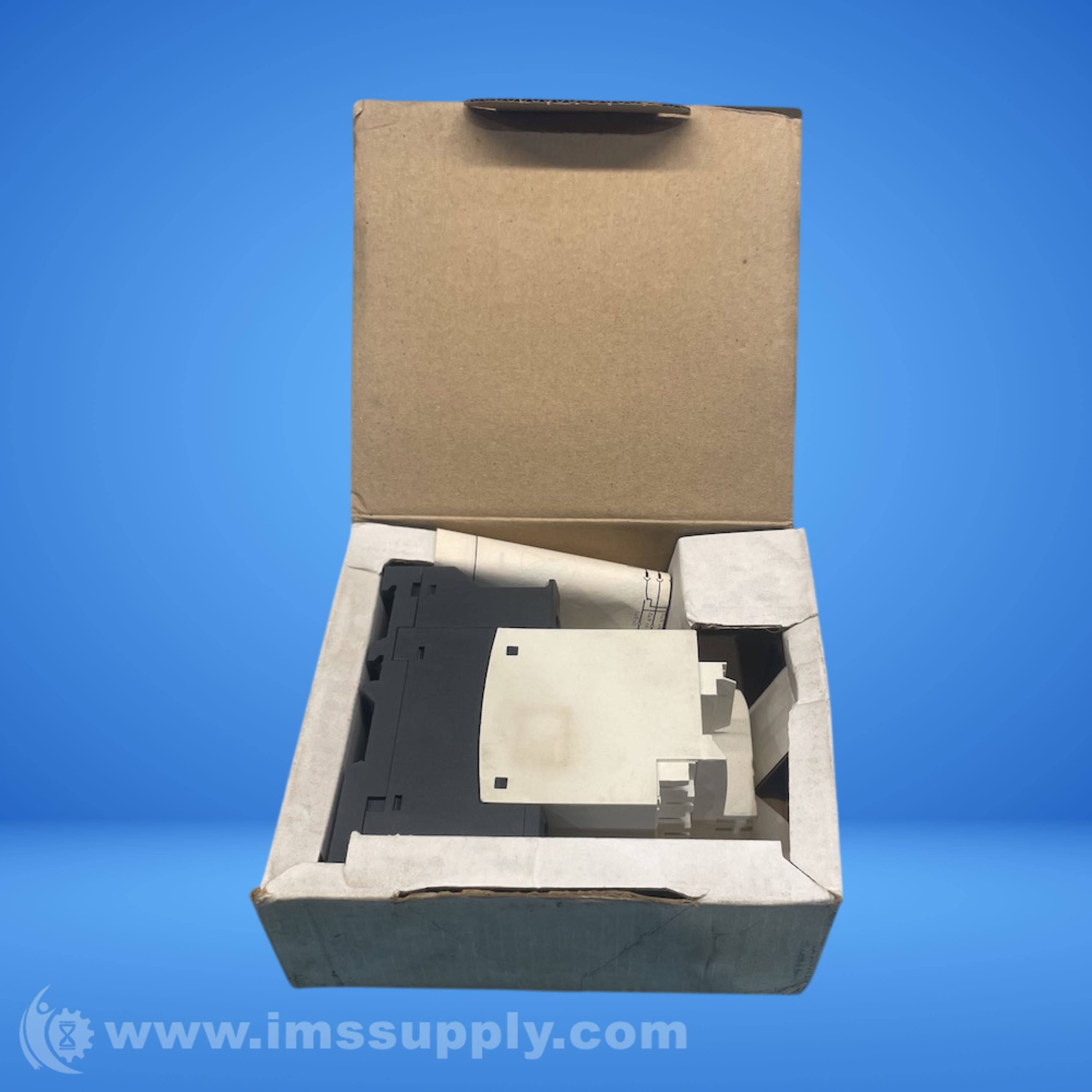

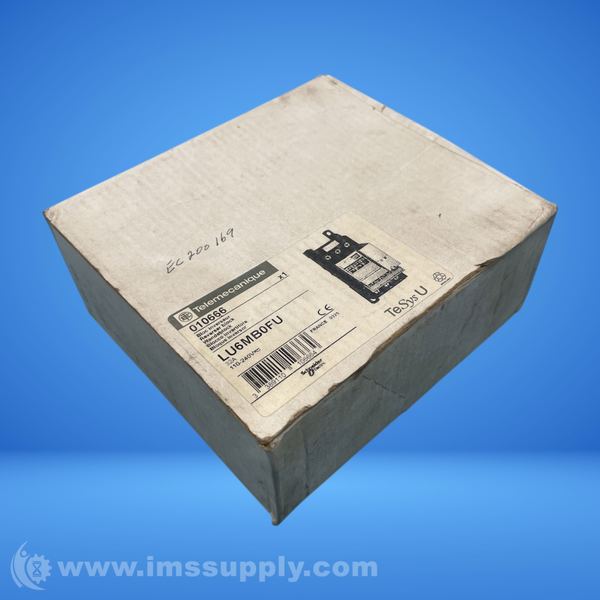

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
