TELEMECANIQUE XCSDMP7012 CODED MAGNETIC SWITCH
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: XCSDMP7012
IMS Product Code: 2177797
Packaging: Sold Individually
Description:

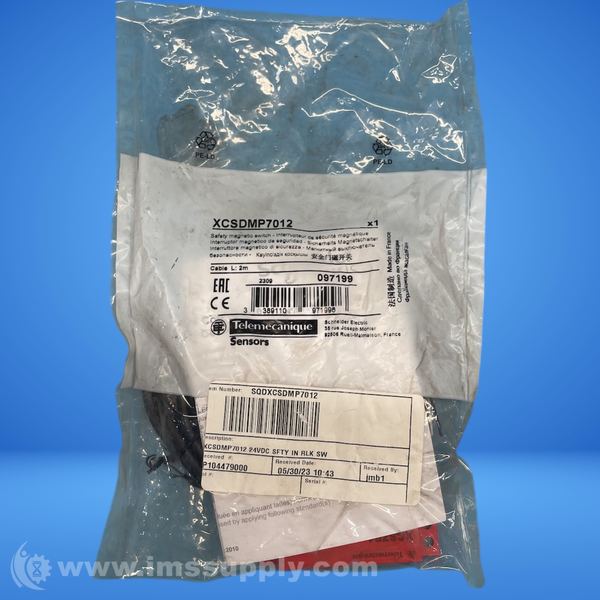

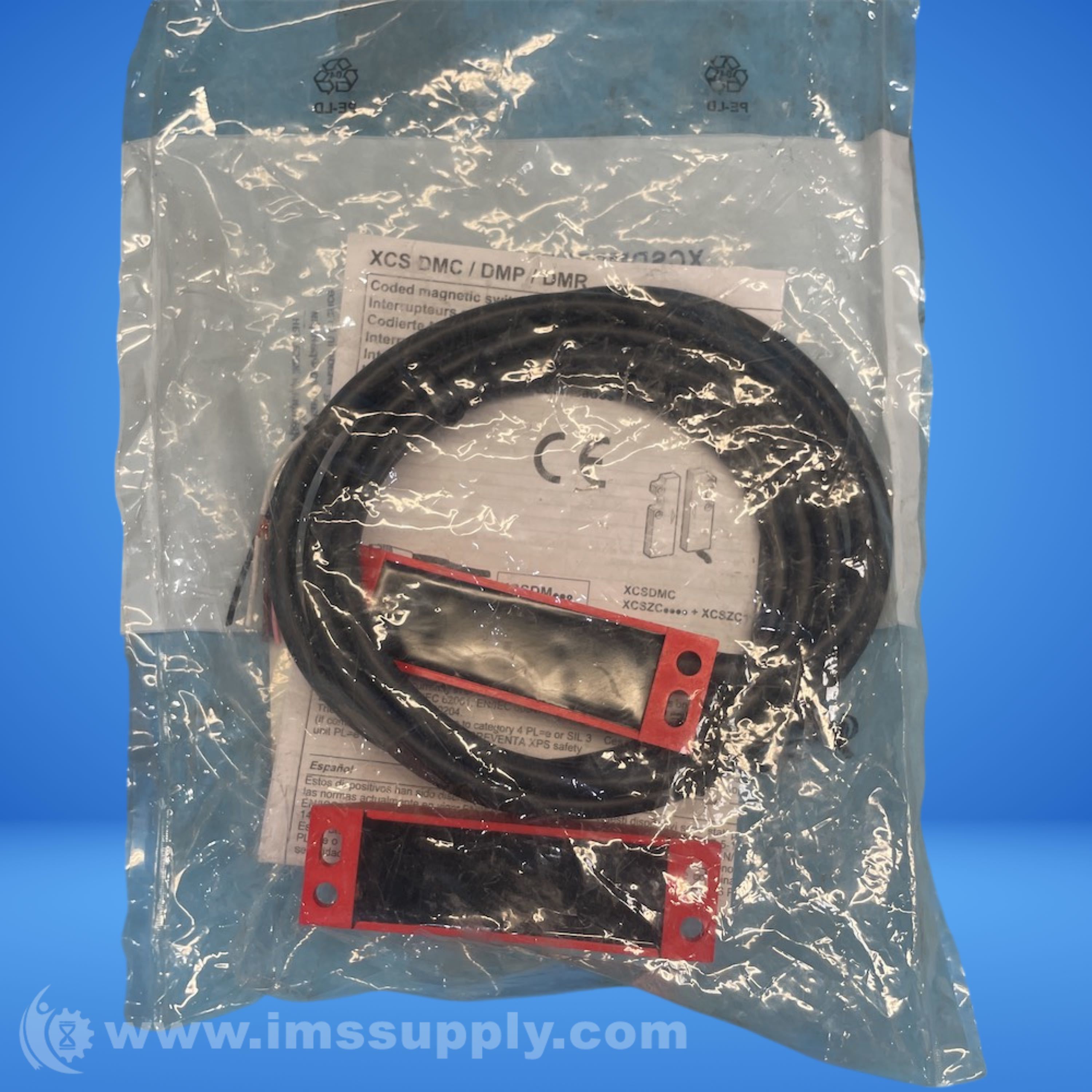

Telemecanique XCSDMP7012 Coded Magnetic Switch
Coded magnetic switch, Telemecanique Safety switches XCS series, 2 NC + 1 NO contacts, pre-cabled with 2m cable.
Specifications
- Cable Length: 2 m
- Contacts Type and Composition: 2 NC + 1 NO
- Contact Operation: 1 NC staggered
- Rated Operational Voltage: 24 V DC
- Rated Operational Current: 100 mA
- Switching Capacity: 5...100 mA
- Safety Level: Category 4 with appropriate monitoring system (ISO 13849-1), PL = e (ISO 13849-1), SIL 3 (IEC 61508)
- Material: Thermoplastic PBT enclosure, PVC cable
- Size: 88 x 25 x 13 mm
- IP Degree of Protection: IP66, IP67
- Standards: CSA C22.2 No 14, IEC 60204-1, IEC 60947-5-1, ISO 12100, ISO 14119, UL 508
