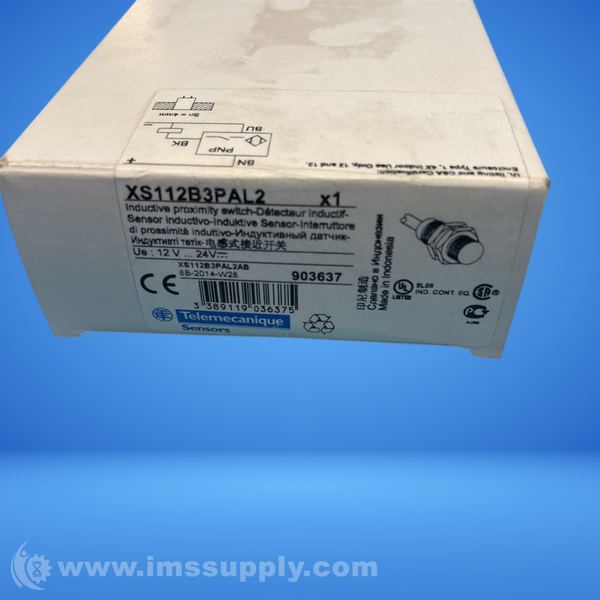

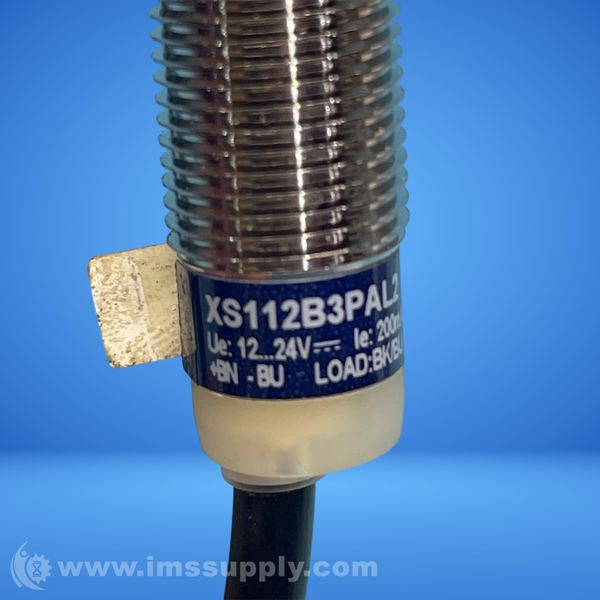

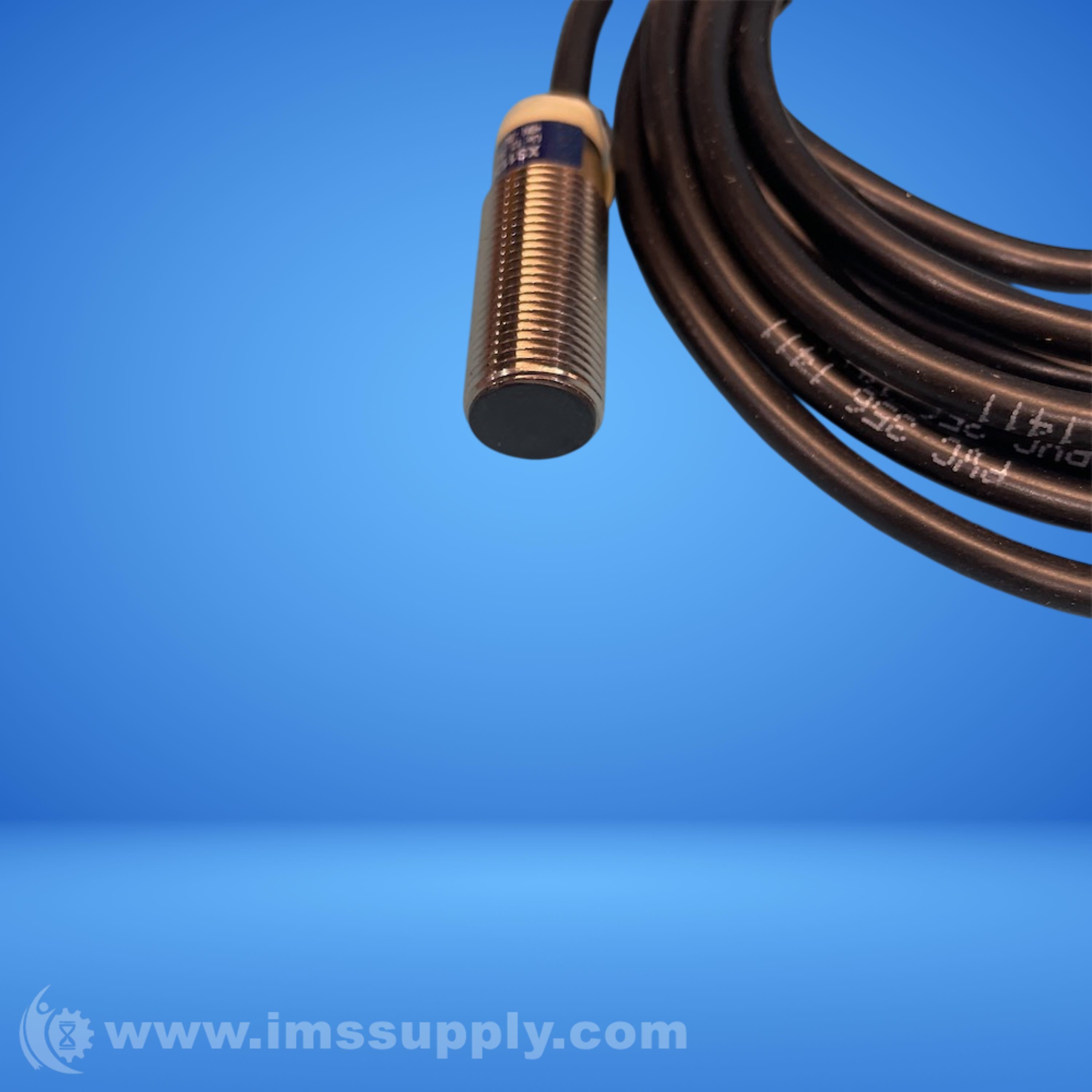

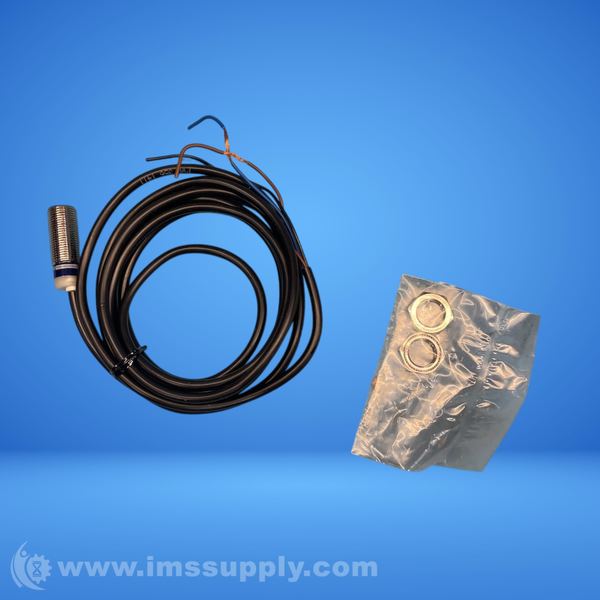

TELEMECANIQUE XS112B3PAL2 M12 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: XS112B3PAL2
IMS Product Code: 2177819
Packaging: Sold Individually
Description:
Telemecanique XS112B3PAL2 M12 Inductive Proximity Sensor
M12 PNP inductive proximity sensor with 4mm sensing range, 12-24V DC supply, and pre-cabled connection.
Specifications
- Sensor Type: Inductive Proximity Sensor
- Thread Size: M12 x 1
- Sensing Range: 0...4mm
- Supply Voltage: 12...24V DC
- Output Type: PNP/N.O.
- Wiring Technique: 3-wire
- Cable Composition: 3 x 0.34 mm� PVC
- Housing Material: Nickel Plated Brass
- Front Material: PPS
- Status LED: Output state indication (1 yellow LED)
- IP Rating: IP65, IP67, IP68, IP69K
- Maximum Switching Frequency: 2.5kHz
- Switching Current: 200mA
- Operating Temperature Range: -25...70�C
- Standards/Approvals: UL, RoHS, CE
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
