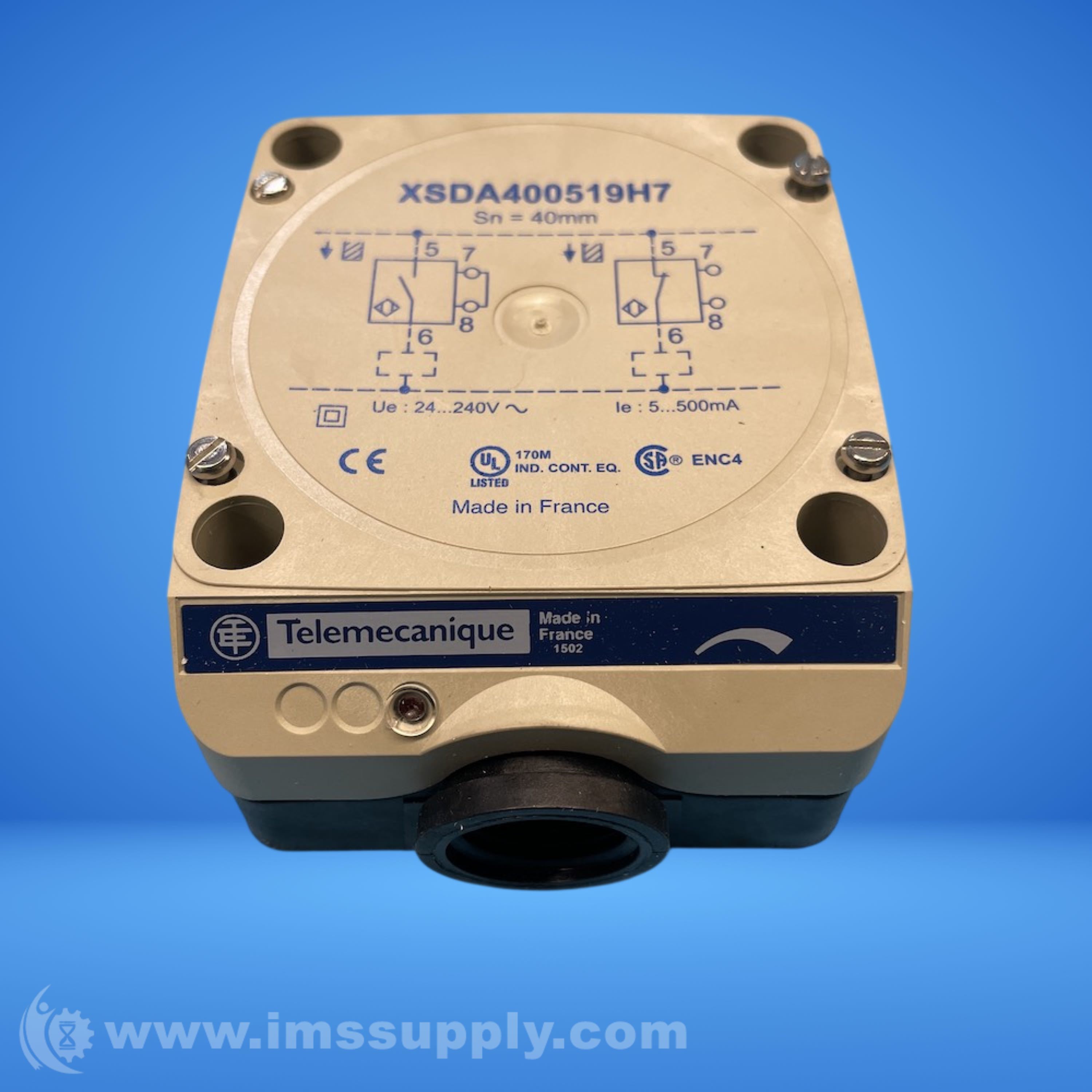

TELEMECANIQUE XSDA400519H7 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: XSDA400519H7
IMS Product Code: 2159090
Packaging: Sold Individually
Description:
Telemecanique XSDA400519H7 Inductive Proximity Sensor
Inductive proximity sensor, 80x80x40mm, plastic, Sn=40mm, 12-240V AC, 2-wire, IP67, programmable NO/NC output
Specifications
- Body Material: Plastic
- Connection Type: Screw Clamp Terminal
- Detection Face: 5 positions turret head
- Discrete Output Function: 1 NO or 1 NC programmable
- Enclosure Material: Plastic
- IP Degree of Protection: IP67
- Maximum Load Current: 500 mA
- Mounting Type: Non-Flush
- Output Circuit Type: AC
- Sensing Distance: 40 mm
- Sensing Method: Inductive
- Sensor Body Style: Rectangular
- Series: XSD
- Supply Voltage: 12-240V AC
- Switching Frequency: 10 Hz
- Wiring Technique: 2-wire
