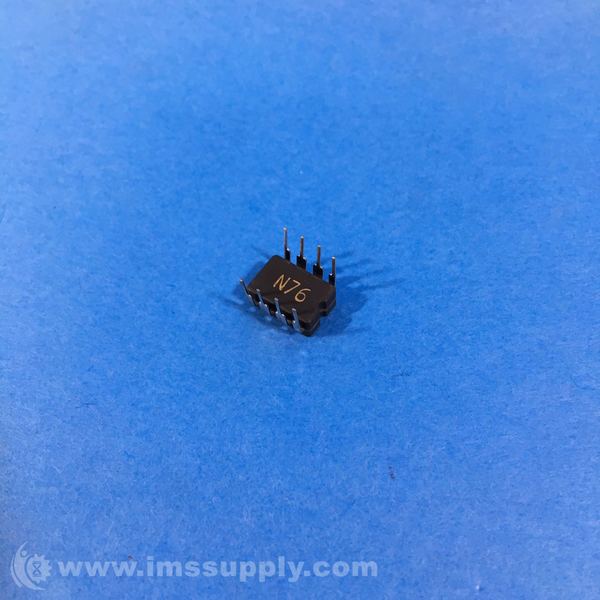

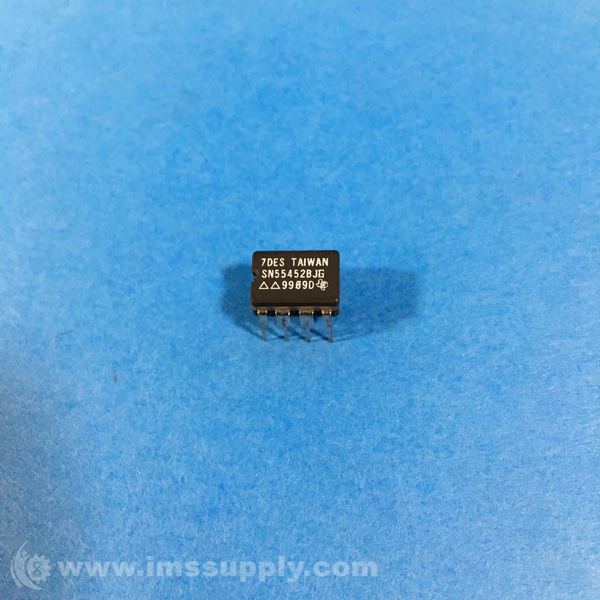

TEXAS INSTRUMENTS SN55452BJG DUAL PERIPHERAL DRIVERS
Quick Overview
Manufactured By: TEXAS INSTRUMENTS
Manufacturer Part Number: SN55452BJG
IMS Product Code: 1807420
Packaging: Sold Individually
Description:
Texas Instruments SN55452BJG Dual Peripheral Drivers
Dual Very-High Speed, High-Current Peripheral Drivers packaged in an 8-pin CDIP through-hole package.
Specifications
- Package: CDIP (JG)
- Pins: 8
- Operating Temperature Range: -55 to 125 degrees C
- Number of Drivers: 2
- Driver Type: NAND
- Maximum Propagation Delay Time: 35 ns
- Maximum Input Voltage: 5.5 V
- Operating Supply Voltage Range: 4.5 to 5.5 V
- Maximum Supply Current: 0.071 A
- Maximum Power Dissipation: 1050 mW
- Mounting: Through Hole
- Pin Count: 8
- Lead Shape: Through Hole
- Output Current: 400 mA
- Output Voltage: 30 V
- Height: 5.08 mm
- Length: 9.6 mm
- Width: 6.67 mm
- Thickness: 4.57 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
