THERMAL TRANSFER PRODUCTS EKM-712-T-CN OIL COOLER
Quick Overview
Manufactured By: THERMAL TRANSFER PRODUCTS
Manufacturer Part Number: EKM-712-T-CN
IMS Product Code: 1910788
Packaging: Sold Individually
Description:

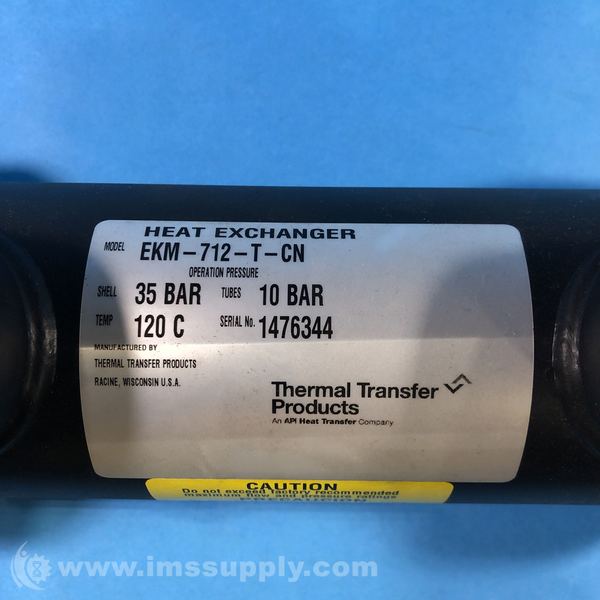

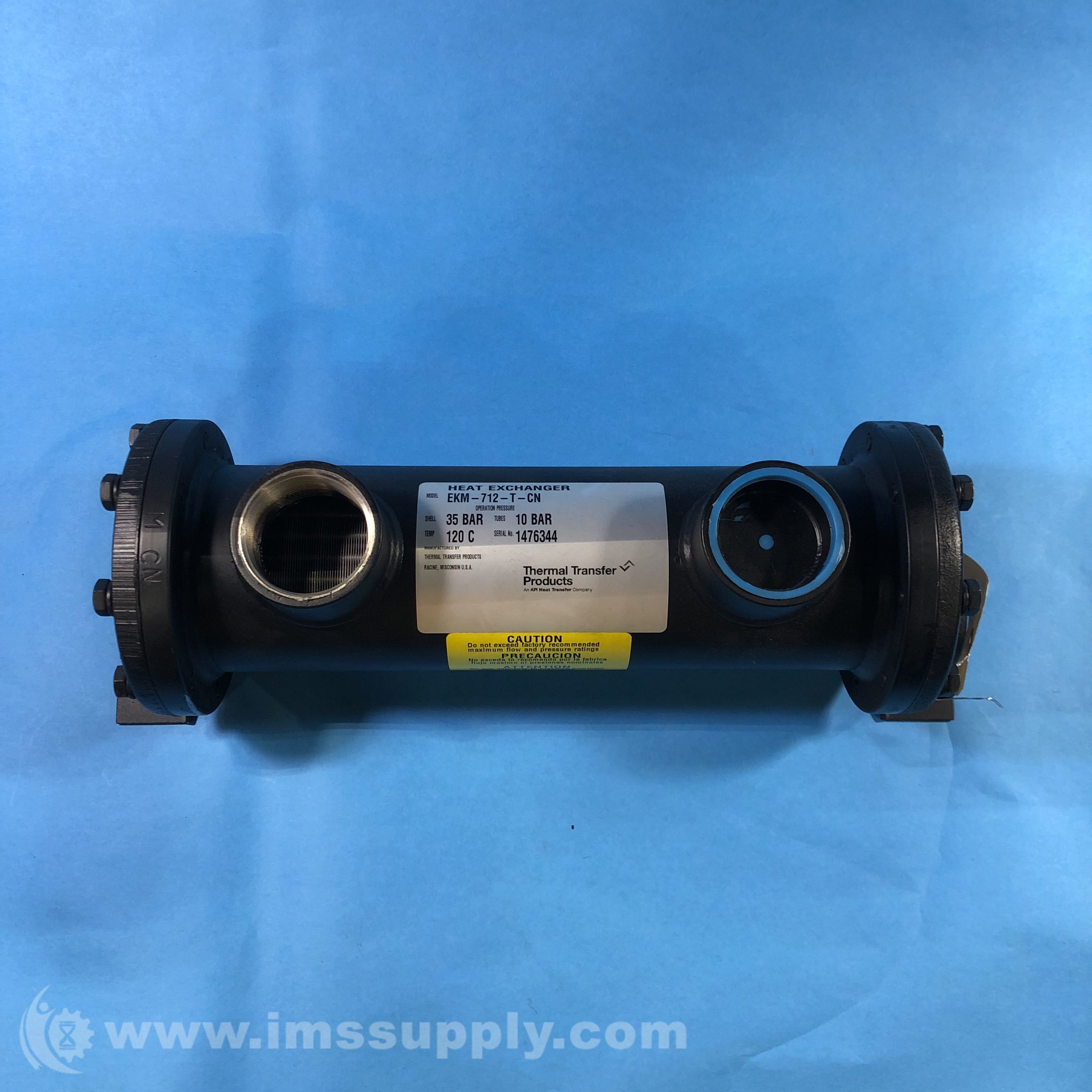

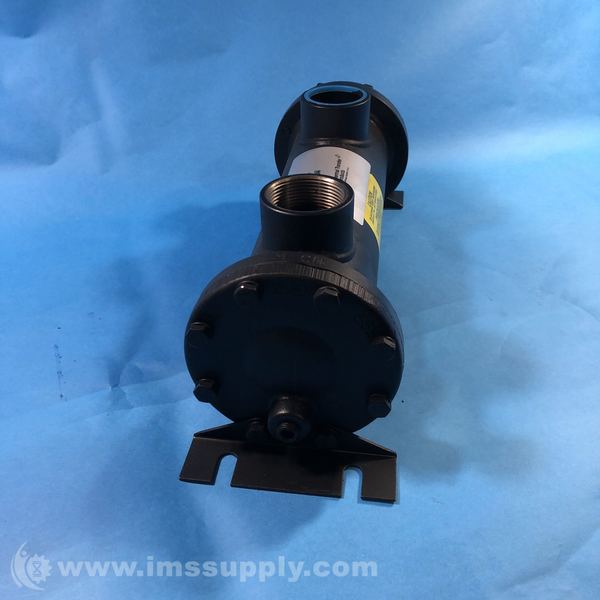

Thermal Transfer Products EKM-712-T-CN Oil Cooler
Shell & Tube EK Series oil cooler with BSPP connections and CuNi cooling tube
Specifications
- Dimensions: 14.19 in L x 5 in W x 5.47 in H
- Flow Rate: 60 gpm, 12 gpm
- HP Heat Removed: Up to 400 hp
- Maximum Oil Pressure: 500 psi
- Maximum Oil Temperature: 110 to 130 deg F Hydraulic Motor Oil, 130 to 180 deg F Hydrostatic Drive Oil, 110 to 130 deg F Lube Oil Circuits, 200 to 300 deg F Automatic Transmission Fluid
- Maximum Water Pressure: 150 psi
- Mounting Type: Bracket
- Oil Cooler Material: Steel
- Oil Inlet Port Connection Type: BSPP
- Oil Inlet Port Size: 1-1/2 in
- Oil Outlet Port Connection Type: BSPP
- Oil Outlet Port Size: 1-1/2 in
- Operating Temperature: 250 deg F
- Water Inlet Port Connection Type: BSPP
- Water Inlet Port Size: 3/4 in
- Water Outlet Port Connection: BSPP
- Water Outlet Port Size: 3/4 in
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 15 minutes.
