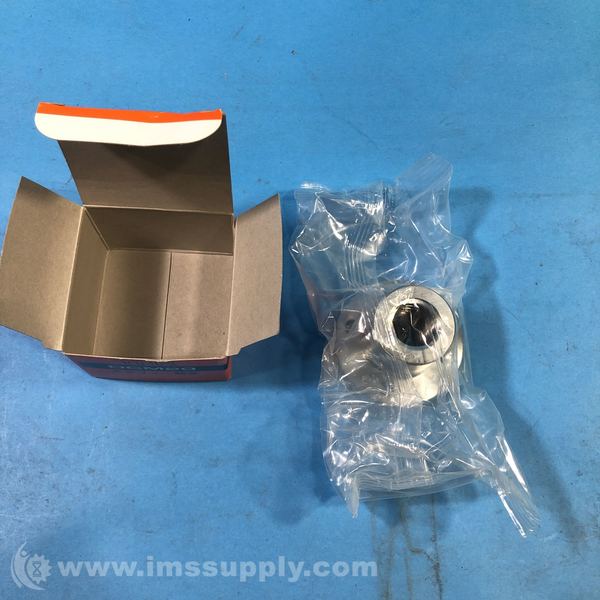

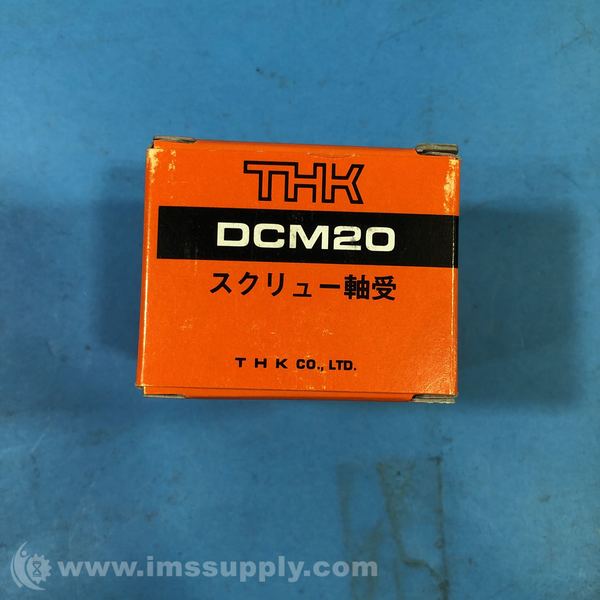

THK DCM20 SCREW NUT
Quick Overview
Manufactured By: THK
Manufacturer Part Number: DCM20
IMS Product Code: 1898694
Packaging: Sold Individually
Description:
THK DCM20 Screw Nut

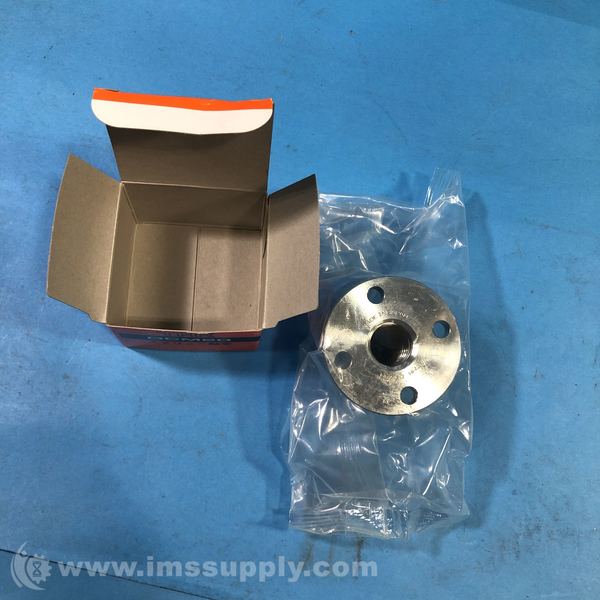

THK DCM20 is a screw nut component used in linear motion systems, featuring a flanged design for easy mounting and precise movement.
Specifications
- Brand: THK
- Model: DCM20
- Outer Dimensions: 32
- Lead Screw Nut Dimensions: 40
- Screw Shaft: CS 20
- Dynamic Thrust: 9800 N
- Static Permissible Load of the Flange: 37200 N
- Mass: 2 kg
- Outer Diameter: 40
- Length: 56
- Flange Diameter: 42
- H: 7
- B: 6.6
- PCD: 42
- r: 1.5
- F: 10.5
- d: 2
- Outer Diameter Dx: 20
- Effective Diameter D: 18
- Thread Minor Diameter Dr: 15.5
- Lead R: 4
- Lead Angle: 4°03'
