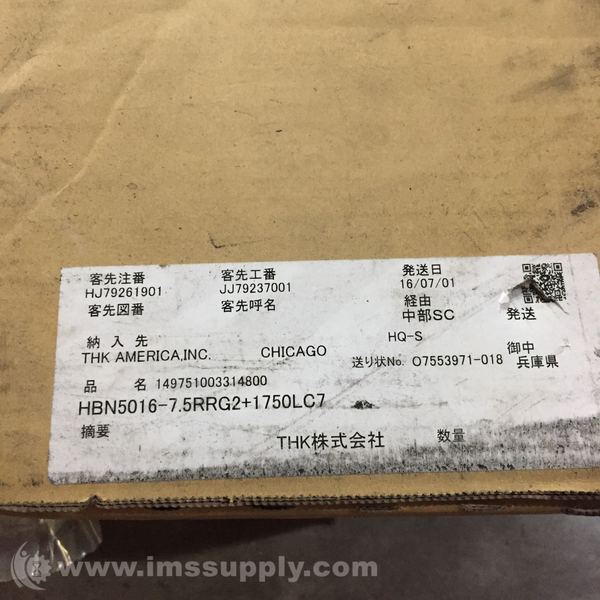

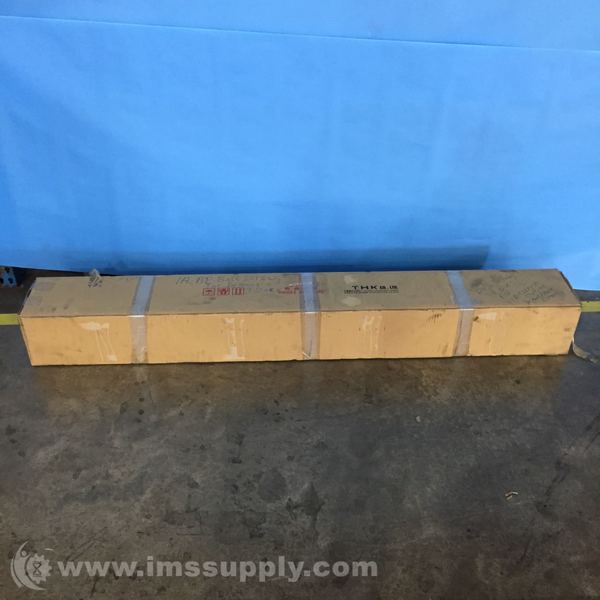

THK HBN5016-7.5RRG2+1750LC7 BALL SCREW
Quick Overview
Manufactured By: THK
Manufacturer Part Number: HBN5016-7.5RRG2+1750LC7
IMS Product Code: 1774383
Packaging: Sold Individually
Description:
THK HBN5016-7.5RRG2+1750LC7 Ball Screw
THK precision caged ball screw
Specifications
- type: Ball Screw
- brand: THK
- model: HBN5016-7.5RRG2+1750LC7
- screw shaft outer diameter d: 50
- lead ph: 16
- ball center to center diameter dp: 53
- thread minor diameter de: 39.6
- no. of loaded circuits rows x turns: 3X2.5
- basic load rating ca kn: 379.6
- basic load rating c0a kn: 820.9
- permissible load fp kn: 117.7
- rigidity k n/µm: 2392
- nut mass kg: 10.0
- shaft mass kg/m: 5.0
- threading direction: Right-hand
- types of nuts: Single nut
- dust prevention measure: RR,WW
- dust cover type: Bellows, screw cover
- wiper ring is available: Yes
- qz lubricator is available: Yes
- with/without oil hole: Yes
- standard grease: L500
- standard lubrication method: Grease Lubrication
- standard seal: RR
- country of origin: Japan
