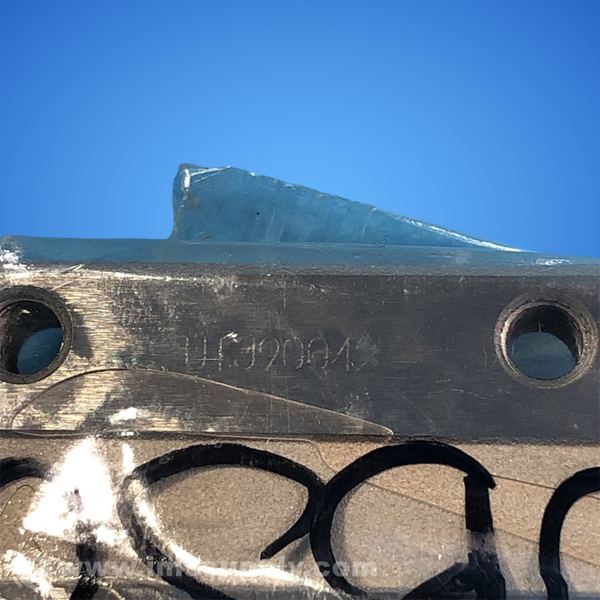

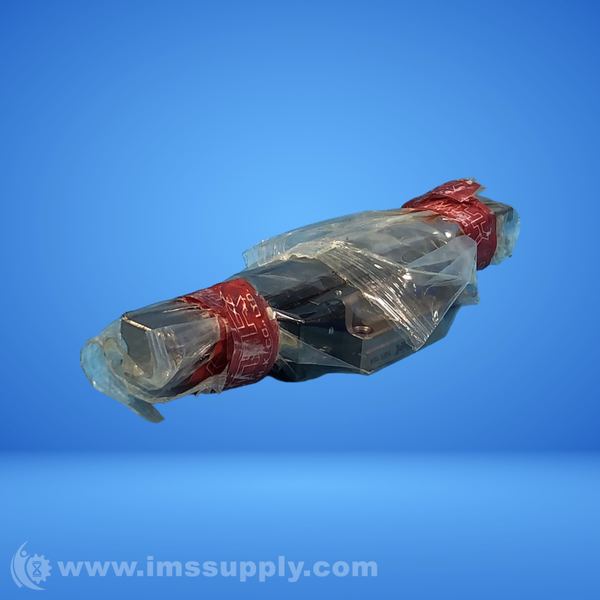

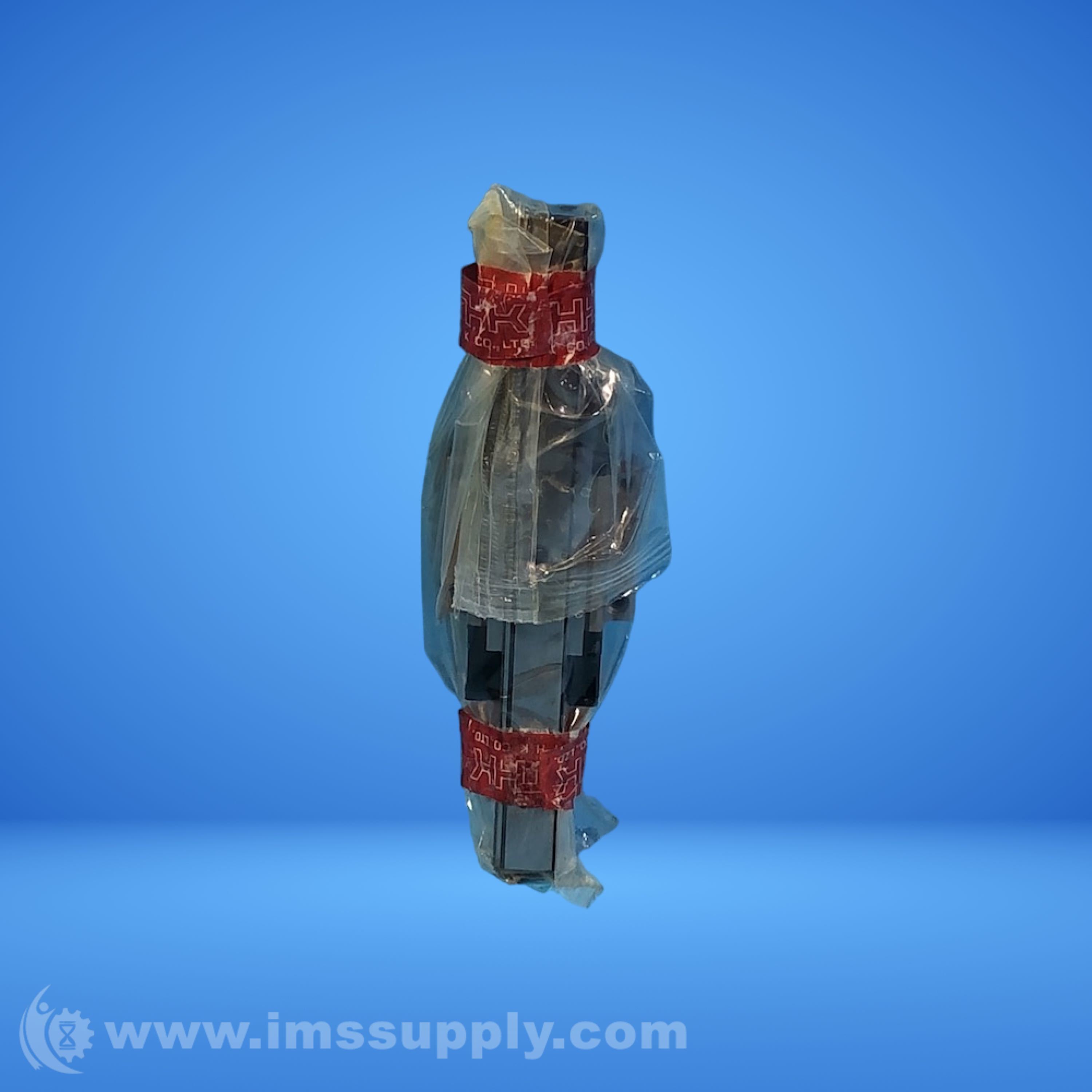

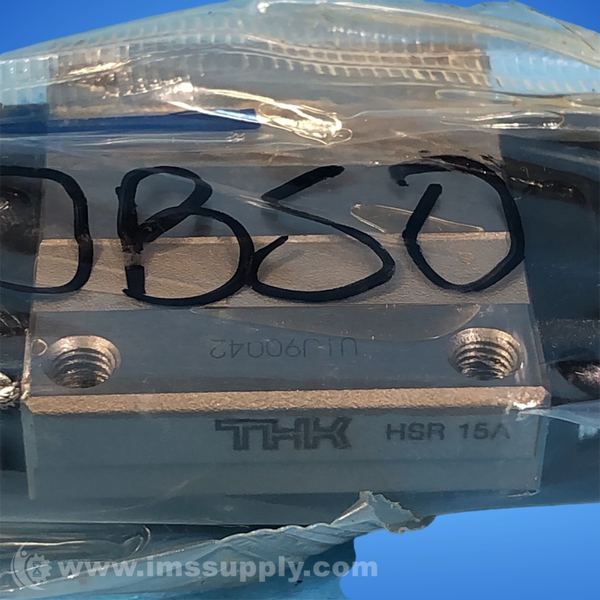

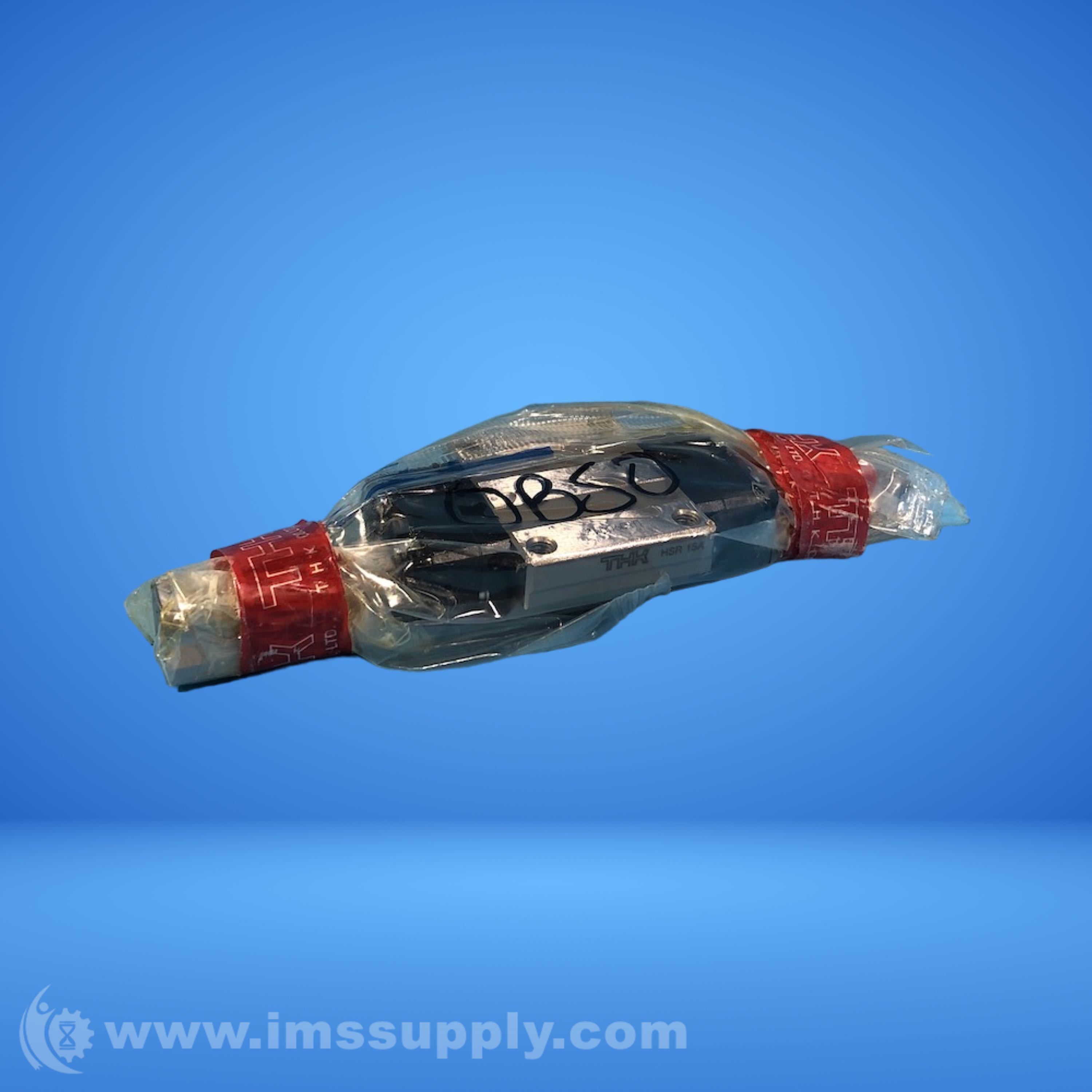

THK HSR15A LINEAR MOTION GUIDE
Quick Overview
Manufactured By: THK
Manufacturer Part Number: HSR-15A
IMS Product Code: 2041725
Packaging: Sold Individually
Description:
THK HSR15A Linear Motion Guide
Linear motion guide for precise movement, featuring a 4-way equal load type design and top surface mounting.
Specifications
- Type of guide: 4-way Equal Load Type
- Loading method: Top surface mount
- Block mounting direction: Yes
- Ball (roller) retainer: None
- LaCS: Yes
- Dust cover type: Bellows
- Seal Resistance Value (N): 2.00
- Seal types for seal resistance value: UU
- Dedicated cap for the LM rail mounting hole: C4
- Applicable to QZ Lubricator: Yes
- Lubrication method: Grease lubrication, oil lubrication, other
- Grease brand: AFA, AFB-LF, AFC, AFE, AFF, AFG, Other, Antirust oil only
- Nipple, plumbing fixture type: PB1021B
- Preload grade: Normal (no symbol), light preload (C1)
- Accuracy Grades: Normal grade (No Symbol), high accuracy grade (H), precision grade (P), super precision grade (SP), ultra precision grade (UP)
- Type using standard material: Iron-based
- Standard grease: AFB-LF
- Standard grease nipples: PB1021B
- Standard seal: UU, SS
- Block surface treatment: AP-CF, AP-C, AP-HC, other
- Rail surface treatment: AP-CF, AP-C, AP-HC, other
- With Rack: None
- Rail mounting method: Bolt fixed
- Guide clamper: Yes
- Minimum service temperature(Centigrade�C): -15
- Maximum service temperature(Centigrade�C): 80
- Long-term Maintenance-free Operation: Available
- Rail joint is available: Yes
- Outer dimensions: 24
- Block dimensions: 47
- Rail dimensions: 38
- Height M: 30
- Width W: 56.6
- Length L: M5
- B: 60
- C: 4.5x7.5x5.3
- S: 10.9
- Pitch F: 15.7
- Static C0: 10.9
- Materials: Bearing steel
- Height: 24
- Width: 47
- Length: 56.6
- d1�d2�h: 4.5�7.5�5.3
- Mass LM block: 0.2
- Mass LM rail: 1.5
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
Ships today if ordered in the next 9 hours and 28 minutes.
