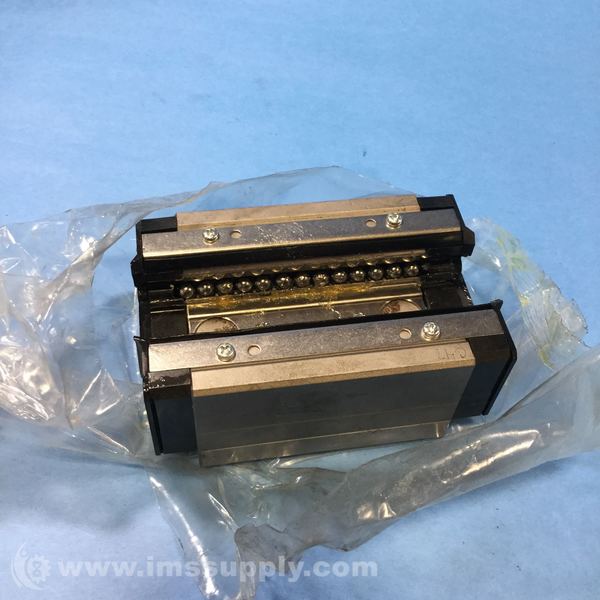

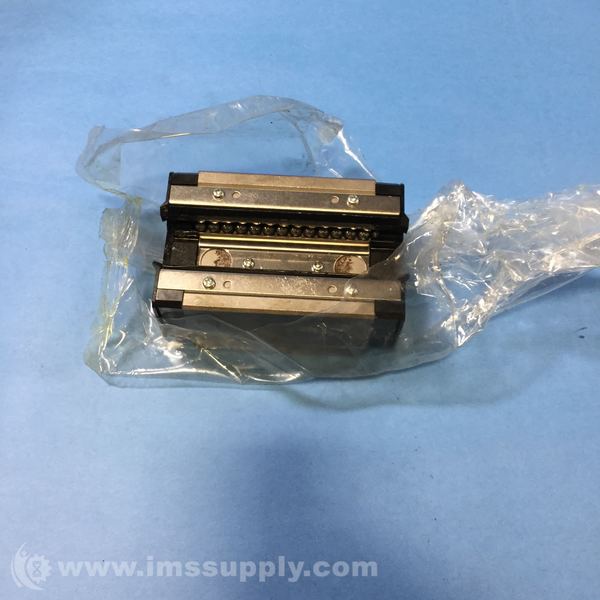

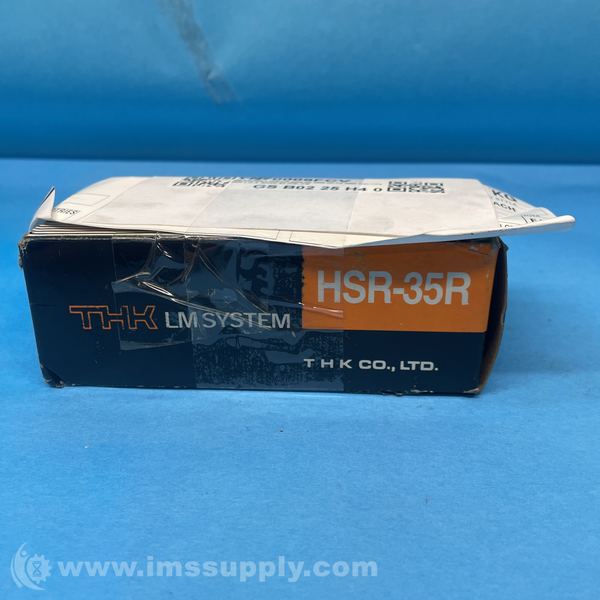

THK HSR-35R LINEAR MOTION GUIDE
Quick Overview
Manufactured By: THK
Manufacturer Part Number: HSR-35R
IMS Product Code: 1797905
Packaging: Sold Individually
Description:
THK HSR-35R Linear Motion Guide
Linear Motion Guide
Specifications
- Type of guide: 4-way Equal Load Type
- Loading method: Top surface mount
- Block mounting direction: Yes
- Ball (roller) retainer: None
- LaCS: Yes
- Dust cover type: Bellows, LM Cover
- Seal Resistance Value (N): 11.80
- Seal types for seal resistance value: UU
- Lubrication method: Grease lubrication, oil lubrication, other
- Grease brand: AFA, AFB-LF, AFC, AFE, AFF, AFG, Other, Antirust oil only
- Nipple, plumbing fixture type: A-M6F, B-M6F, C-M6F, LF-A, LF-B, SF-A, SF-B
- Preload grade: Normal (no symbol), light preload (C1), medium preload (C0)
- Accuracy Grades: Normal grade (No Symbol), high accuracy grade (H), precision grade (P), super precision grade (SP), ultra precision grade (UP)
- Type using standard material: Iron-based
- Standard grease: AFB-LF
- Standard grease nipples: B-M6F
- Standard seal: UU, SS
- Whether it is possible to change to a high temperature type: Can be supported
- Block surface treatment: AP-CF, AP-C, AP-HC, other
- Rail surface treatment: AP-CF, AP-C, AP-HC, other
- With Rack: None
- Rail mounting method: Bolt fixed
- Guide clamper: Yes
- Minimum service temperature(Centigrade°C): -15
- Minimum service temperature(Fahrenheit°F): 5
- Maximum service temperature(Centigrade°C): 80
- Maximum service temperature(Fahrenheit°F): 176
- Long-term Maintenance-free Operation: Available
- Rail joint is available: Yes
- Height: 55
- Width: 70
- Length: 109.4
- B: 50
- C: 50
- SXl: M8X12
- L1: 80.4
- T: 11.7
- K: 47.5
- N: 15
- E: 12
- Grease Nipple: B-M6F
- e0: 5.5
- f0: 12.6
- D0: 5.2
- M: 7.5
- W1: 34
- W2: 18
- Pitch: 80
- d1×d2×h: 9×14×12
- Length: 3000 (2520)
- C: 53.9
- Co: 70.2
- MA: 0.895
- MB: 4.51
- MC: 0.895
- 1 block: 1.5
- Double blocks: 6.6
- LM block: 1.5
- LM rail: 6.6
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
