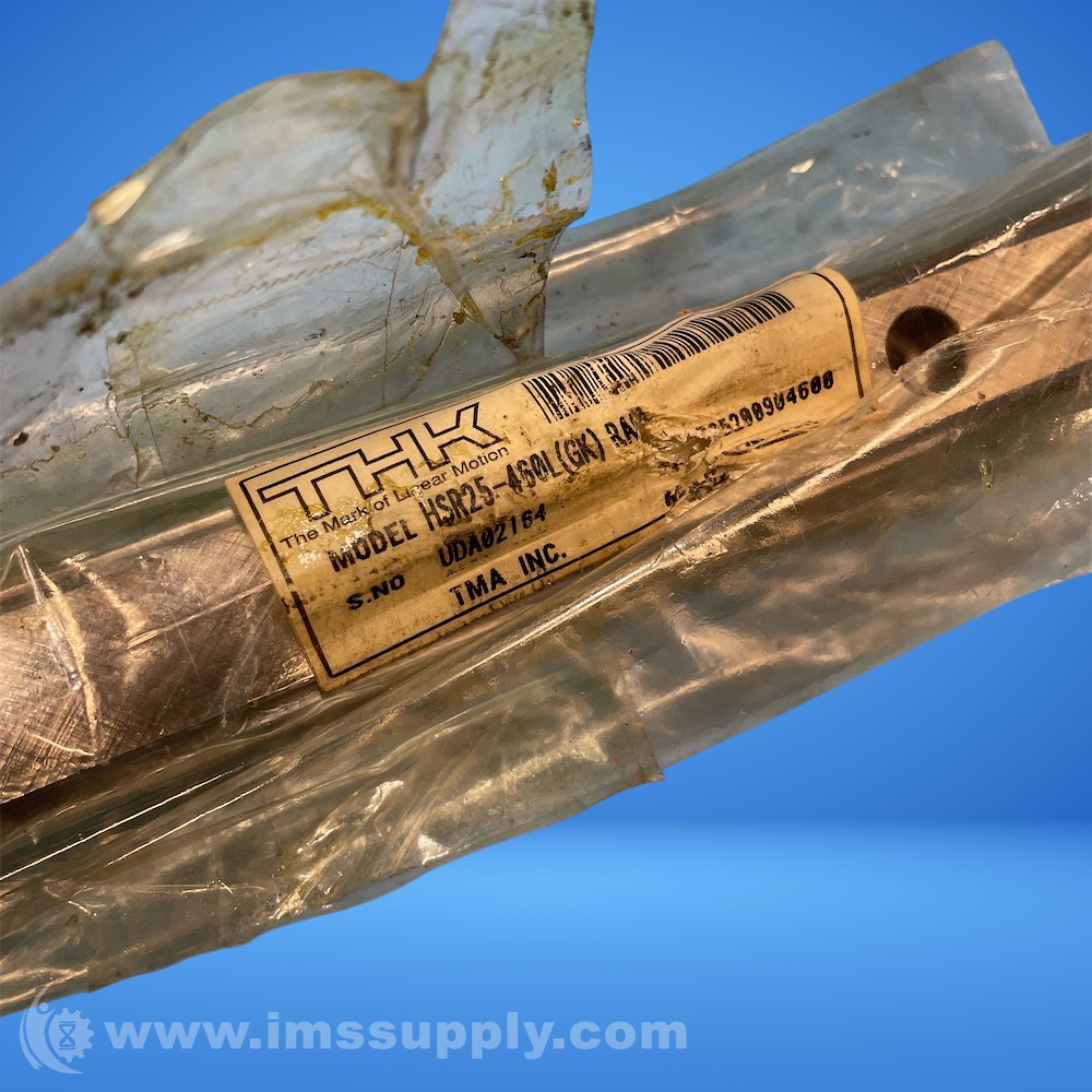

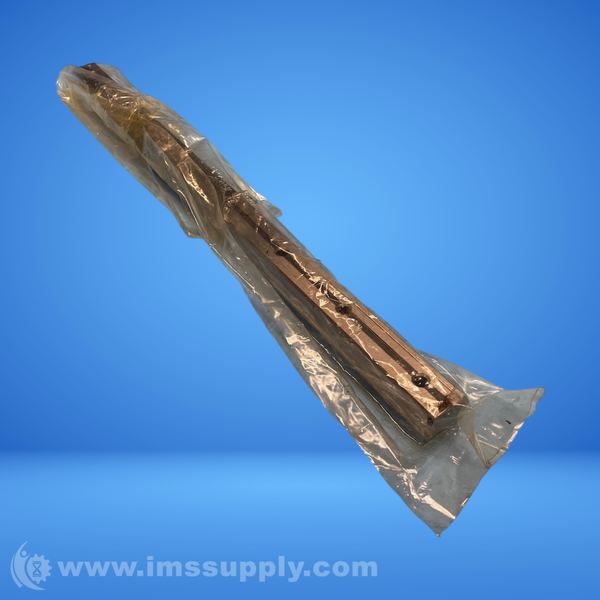

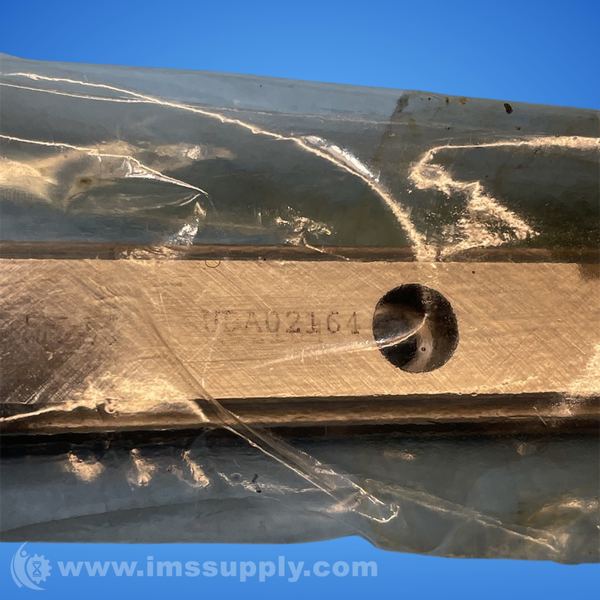

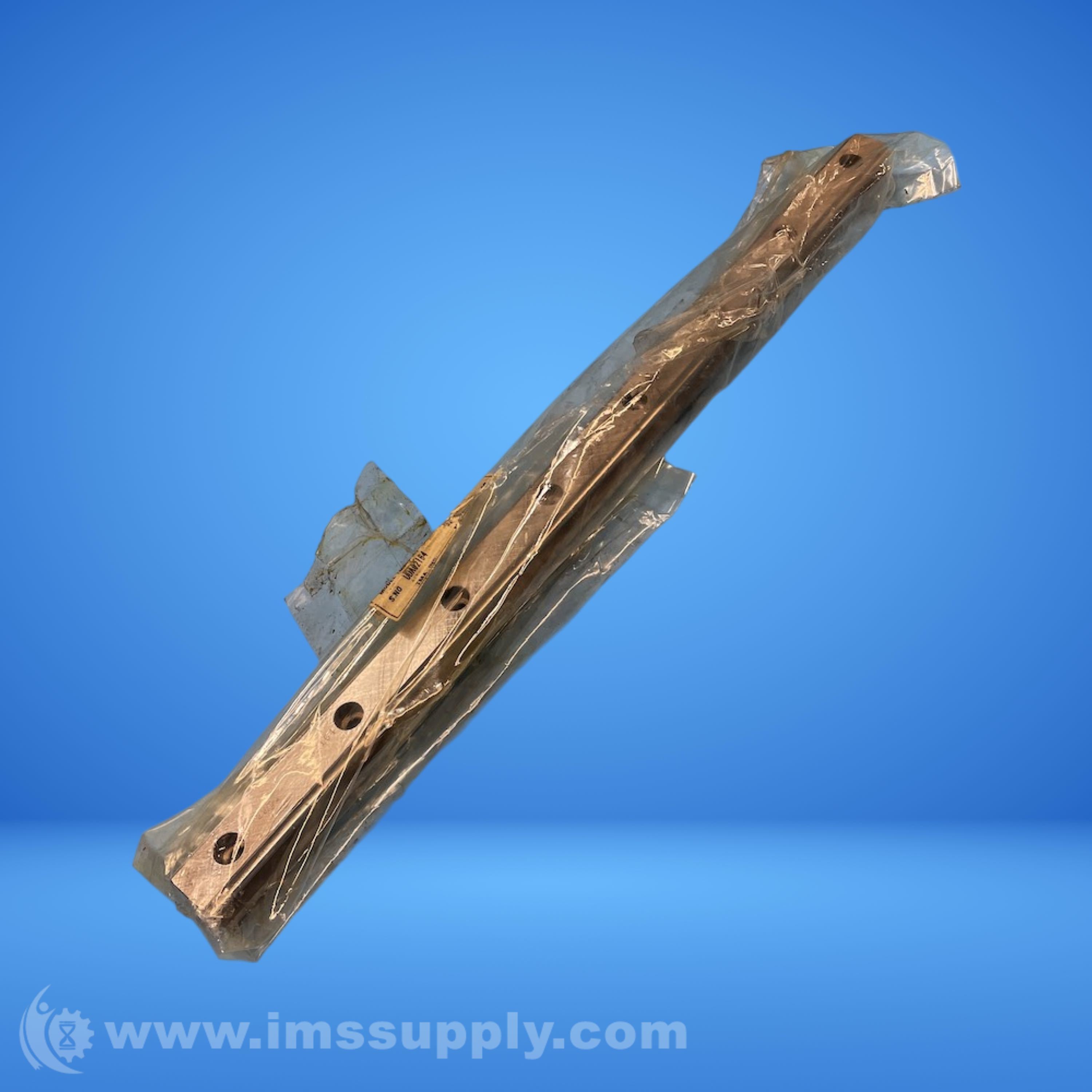

THK HSR25-460L LINEAR GUIDE RAIL
Quick Overview
Manufactured By: THK
Manufacturer Part Number: HSR25-460L
IMS Product Code: 2141947
Packaging: Sold Individually
Description:
THK HSR25-460L Linear Guide Rail
Linear guide rail with profile design, made of carbon steel, 460 mm overall length, 25 mm overall width, 22 mm overall height. Features 8 mounting holes with M7 size and unfinished finish. Suitable for use with standard ball guides.
Specifications
- Maximum Length: 460 mm
- Nominal Rail Size: 25 mm
- Rail Screw Size: M7
- Hardness: 58 to 64 HRC
- Load Capacity: 27.2 kN
- Series: HSR25
- Rail Material: Carbon Steel
- Rail Finish: Unfinished
- Number of Rail Holes: 8
- Mounting Hole Center to Center: 60 mm
- Mounting Hole from Shaft End: 20 mm
- Overall Length: 460 mm
- Overall Width: 25 mm
- Overall Height: 22 mm
- System of Measurement: Metric
- Rail Type: Profile
- For Use With: Standard Ball Guides
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 48 minutes.
