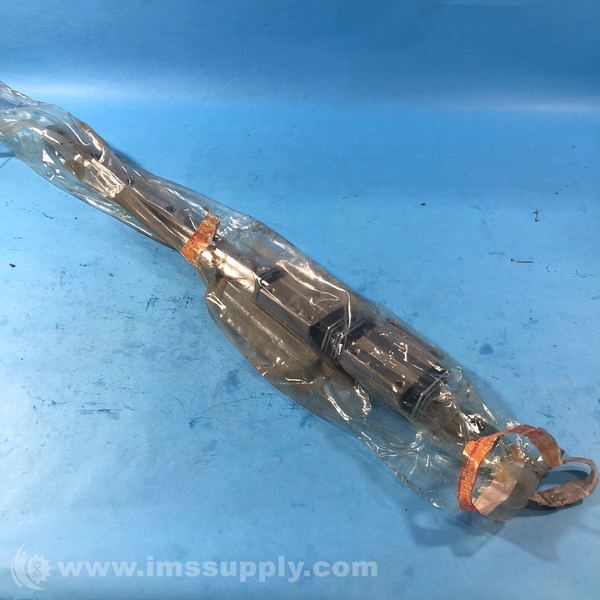

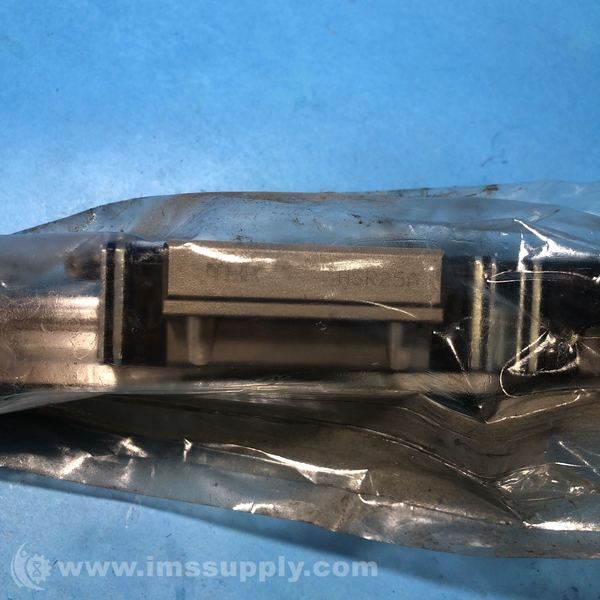

THK HSR25A LINEAR GUIDE
Quick Overview
Manufactured By: THK
Manufacturer Part Number: HSR25A
IMS Product Code: 1809273
Packaging: Sold Individually
Description:
THK HSR25A Linear Guide
Linear Guide
Specifications
- Type of guide: 4-way Equal Load Type
- Loading method: Top surface mount
- Ball (roller) retainer: None
- LaCS: Yes
- Dust cover type: Bellows, LM Cover
- Seal Resistance Value (N): 3.90
- Seal types for seal resistance value: UU
- Dedicated cap for the LM rail mounting hole: C6
- Applicable to QZ Lubricator: Yes
- Lubrication method: Grease lubrication, oil lubrication, other
- Grease brand: AFA, AFB-LF, AFC, AFE, AFF, AFG, Other, Antirust oil only
- Nipple, plumbing fixture type: A-M6F, B-M6F, C-M6F, LF-A, LF-B, SF-A, SF-B
- Preload grade: Normal (no symbol), light preload (C1), medium preload (C0)
- Accuracy Grades: Normal grade (No Symbol), high accuracy grade (H), precision grade (P), super precision grade (SP), ultra precision grade (UP)
- Type using standard material: Iron-based
- Standard grease: AFB-LF
- Standard seal: UU, SS
- Whether it is possible to change to a high temperature type: Can be supported
- Block surface treatment: AP-CF, AP-C, AP-HC, other
- Rail surface treatment: AP-CF, AP-C, AP-HC, other
- With Rack: None
- Rail mounting method: Bolt fixed
- Guide clamper: Yes
- Minimum service temperature(Centigrade°C): -15
- Maximum service temperature(Centigrade°C): 80
- Long-term Maintenance-free Operation: Available
- Rail joint is available: Yes
- Materials: Bearing steel
- Outer dimensions: 36
- Block dimensions: 70
- Rail dimensions: 83.1
- Basic load rating Radial: 27.6
- Height M: 57
- Width W: 45
- Length L: M8
- B: 60
- C: 7x11x9
- S: 27.6
- Pitch F: 36.4
- d1xd2xh: 36.4
- Dynamic C: 27.6
- Static C0: 36.4
New - Missing Box (Special):
Part is only guide without rail.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
