THK HSR25B LINEAR MOTION GUIDE
Quick Overview
Manufactured By: THK
Manufacturer Part Number: HSR25B
IMS Product Code: 1793144
Packaging: Sold Individually
Description:

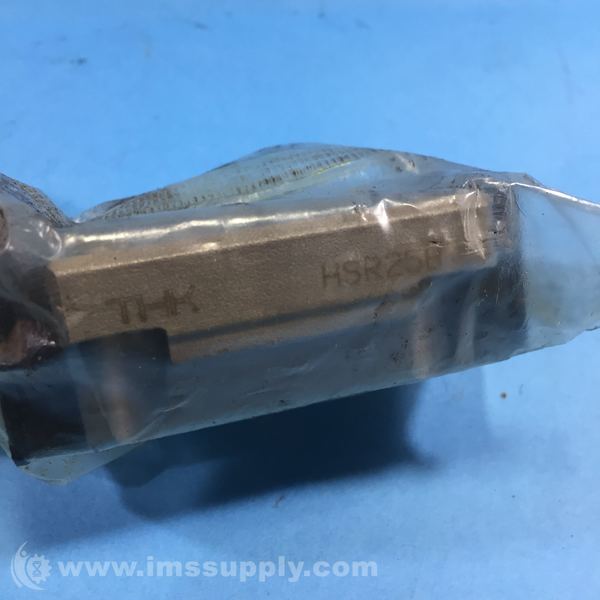

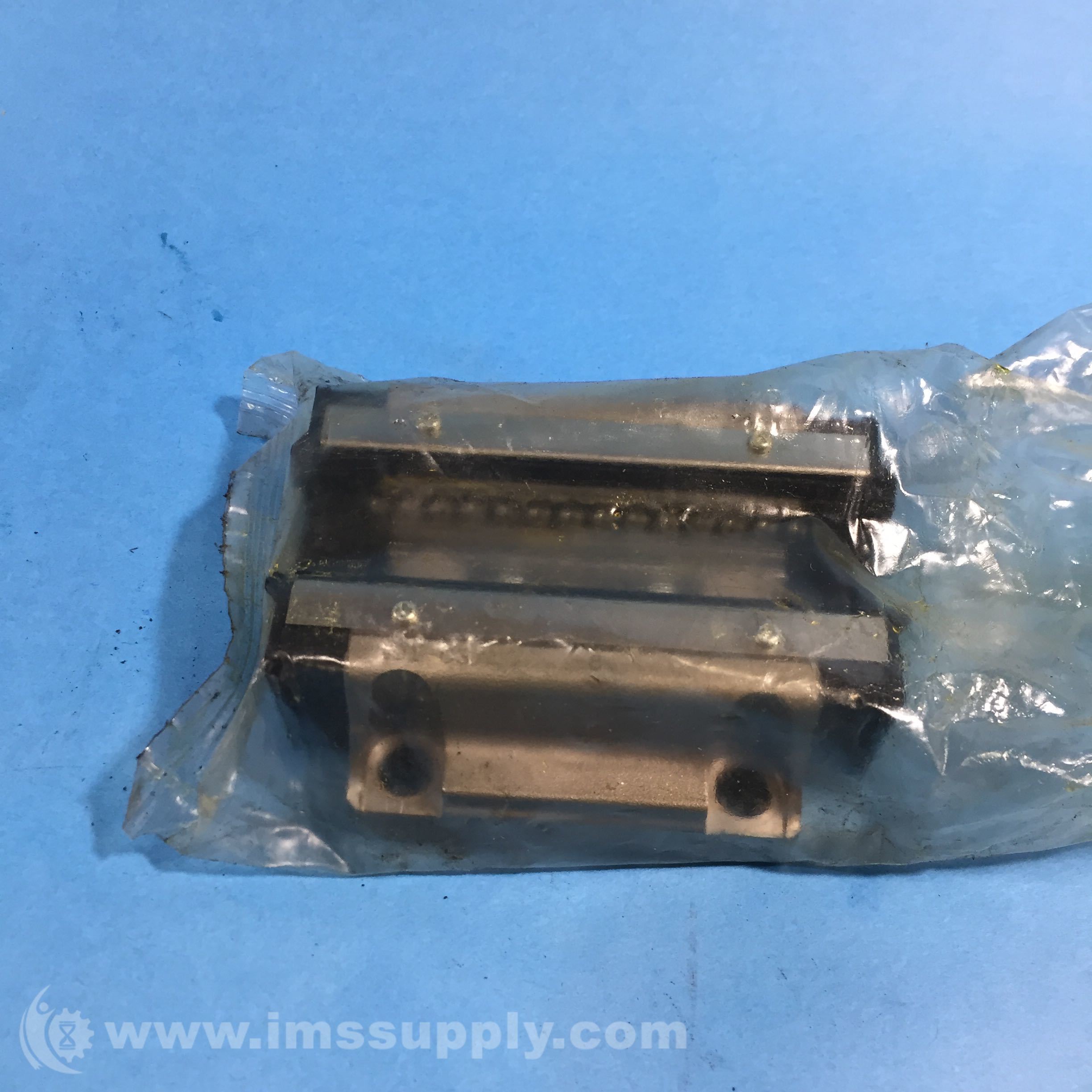

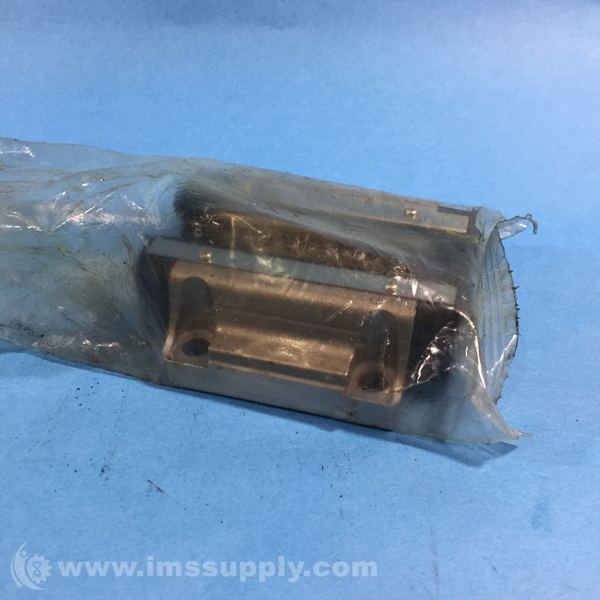

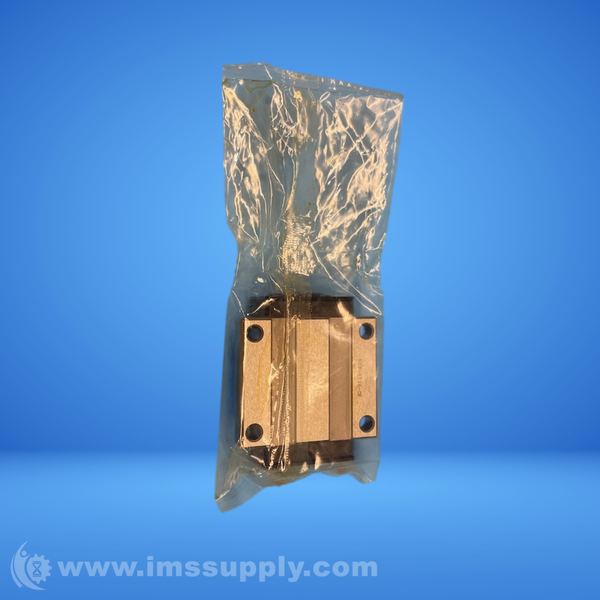

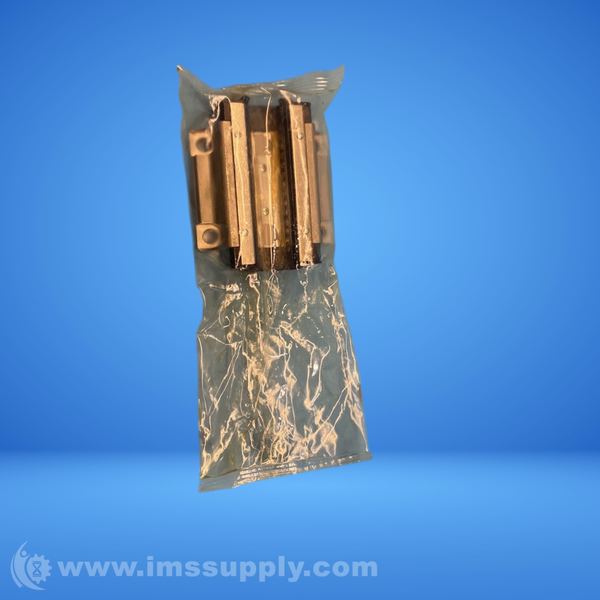

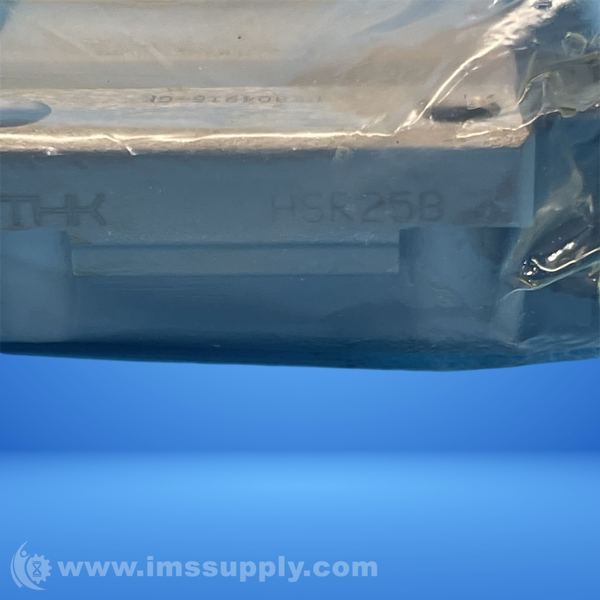

THK HSR25B Linear Motion Guide
Linear motion system with ball loading method and bottom surface mount block mounting direction. Made of iron-based material with bearing steel construction.
Specifications
- Loading method: Ball
- Block mounting direction: Bottom surface mount
- Material: Bearing steel
- Outer dimensions: 36 mm
- Block dimensions: 70 mm
- Rail dimensions: 83.1 mm
- Height: 57 mm
- Basic load rating: 27.6 kN
- Dynamic C: 27.6 kN
- Static C0: 36.4 kN
- Seal Resistance Value: 3.90 N
- Preload grade: Normal (no symbol), light preload (C1), medium preload (C0)
- Accuracy Grades: Normal grade (No Symbol), high accuracy grade (H), precision grade (P), super precision grade (SP), ultra precision grade (UP)
- Minimum service temperature: -15 Centigrade degrees
- Maximum service temperature: 80 Centigrade degrees
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
