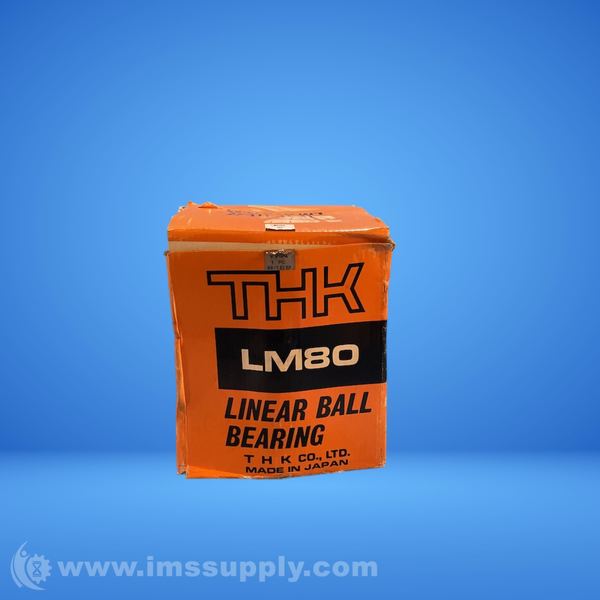

THK LM80GA LINEAR BALL BEARING
Quick Overview
Manufactured By: THK
Manufacturer Part Number: LM80GA
IMS Product Code: 2162926
Packaging: Sold Individually
Description:

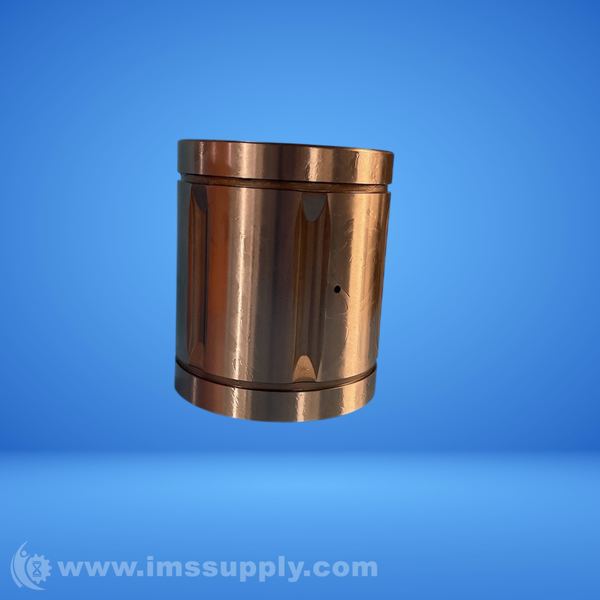

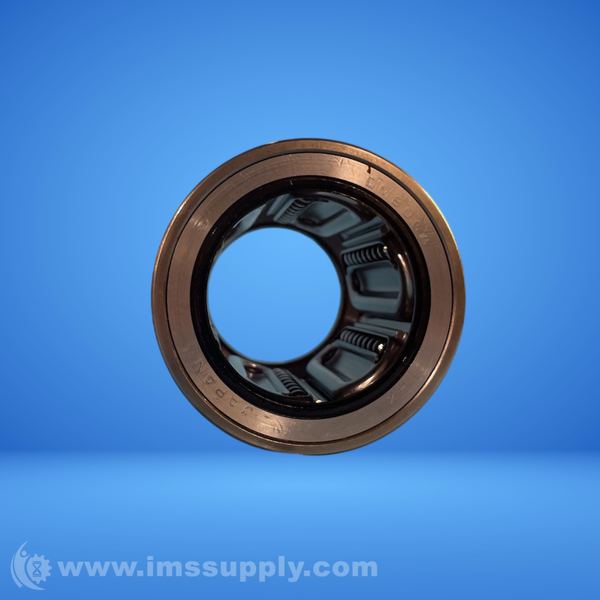

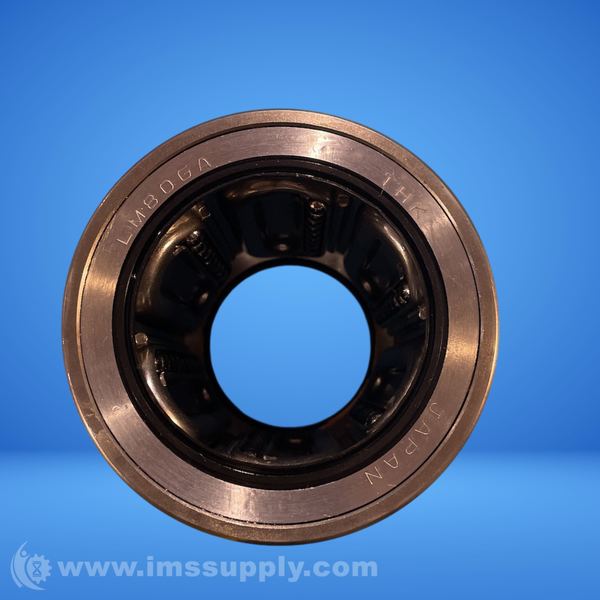

THK LM80GA Linear Ball Bearing
Cylindrical type linear motion bearing with ball bushing, UU seal, and iron-based material.
Specifications
- Type of guide: Cylindrical Type
- Shape of the bushing: Ball
- Dust prevention measure: UU, Felt seal
- Oil hole: Yes
- Nipple, plumbing fixture type: None
- Accuracy Grades: High-accuracy grade(No symbol), precision grade(P)
- Type using standard material: Iron-based
- Standard grease: Anti-rust oil only
- Standard lubrication method: Grease lubrication, oil lubrication
- Standard seal: UU
- Surface Treatment: AP-CF, AP-C, AP-HC, other
- Minimum service temperature Centigrade: -15
- Maximum service temperature Centigrade: 100
- Materials: Bearing steel
- Ball rows: 6
- Inscribed bore diameter dr: 80
- Tolerance: 0 -0.020
- Outer diameter D: 120
- Tolerance: 0 -0.025
- Length L: 140
- Tolerance: 0 -0.4
- L1: 105.5
- L2: 116
- D0: 4.15
- Greasing hole: 4
- Eccentricity (max) �m: 25
- Radial clearance tolerance �m: -16
- Dynamic rating C N: 7350
- Static rating C0 N: 16000
- Mass g: 4520
- Inner (d) MM: 80
- Outer (D) MM: 120
- Width (B) MM: 140
- Inner (d) Inch: 3.1496
- Outer (D) Inch: 4.7244
- Width (B) Inch: 5.5118
- Weight (kg): 4.52
- Suffix description: GA Metal Retainer Type
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
