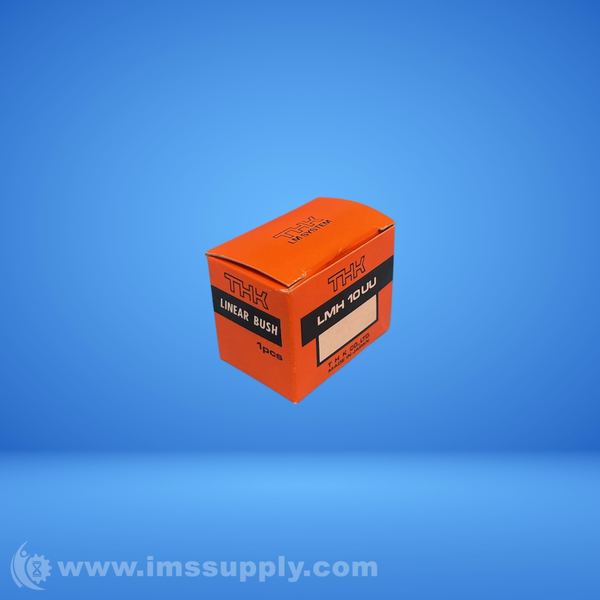

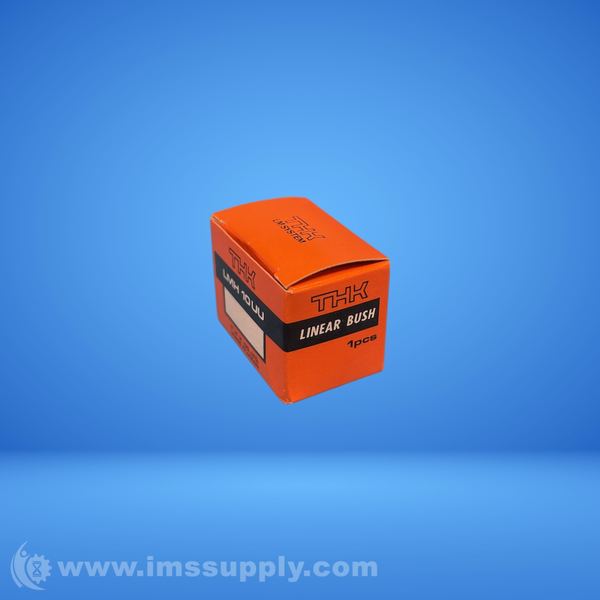

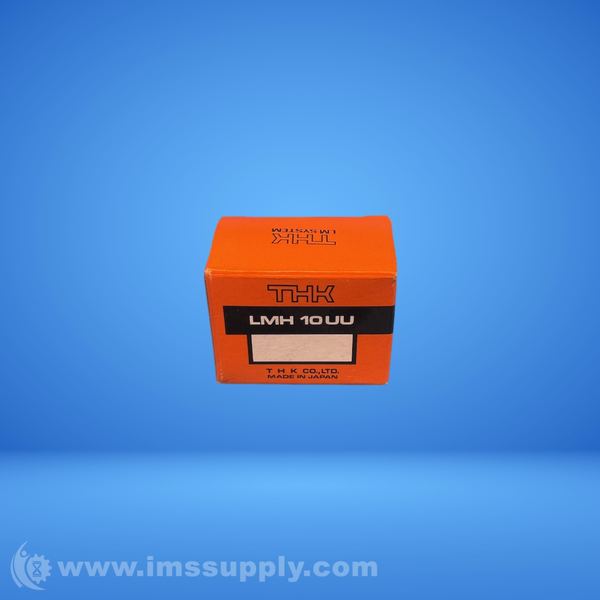

THK LMH 10UU LINEAR BUSHING
Quick Overview
Manufactured By: THK
Manufacturer Part Number: LMH 10UU
IMS Product Code: 2144309
Packaging: Sold Individually
Description:
THK LMH 10UU Linear Bushing
Torque-Resistant Linear Bushings
Specifications
- Inner Diameter: 10mm
- Outer Diameter: 19mm
- Weight: 50g
- For Shaft O.D.: 10mm
- Ball Rows: 4
- Inscribed Bore Diameter Tolerance: 0-0.009mm
- Outer Diameter Tolerance: 0-0.013mm
- Overall Length Tolerance: 0-0.2mm
- Flange Diameter Tolerance: 0-0.2mm
- H: 6mm
- Mounting Hole: 4.5x8x4.4mm
- Eccentricity (Max): 12um
- Basic Dynamic Load Rating: 373N
- Mass: 50g
- Dust Protection Seal: With Seal
- Inscribed Bore Diameter: 10mm
- Outer Diameter: 19mm
- Overall Length: 29mm
- Flange Diameter: 39mm
- K: 25mm
- B: 29mm
- Flange Perpendicularity: 12um
- Radial Clearance Tolerance: -5um
- Basic Static Load Rating: 549N
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
