THK NAST35ZZUU ROLLER FOLLOWER
Quick Overview
Manufactured By: THK
Manufacturer Part Number: NAST35ZZUU
IMS Product Code: 2121564
Packaging: Sold Individually
Description:

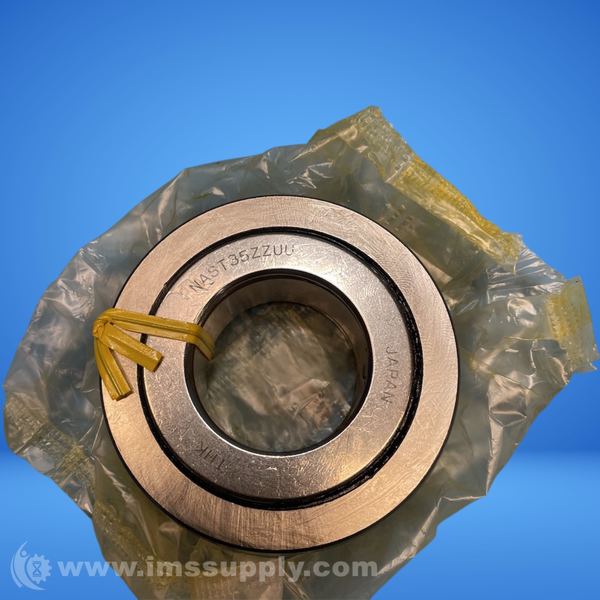

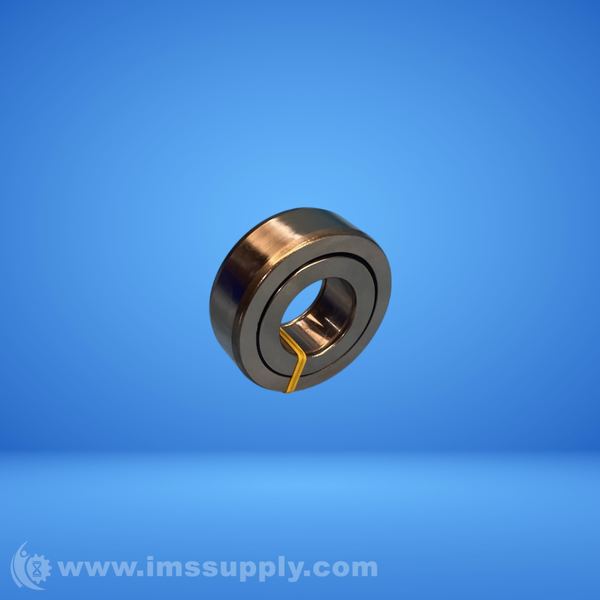

THK NAST35ZZUU Roller Follower
Needle roller bearing with cylindrical outer ring profile, sealed, and re-lubrication feature.
Specifications
- D: 72 mm
- d: 35 mm
- B: 20 mm
- C: 19.8 mm
- d1: 53.5 mm
- e: 4 mm
- f: 1.2 mm
- h: 3 mm
- C (Basic dynamic load rating): 24.6 kN
- C0 (Basic static load rating): 39 kN
- Pu (Fatigue load limit): 4.8 kN
- Fr (Maximum dynamic radial load): 36 kN
- F0r (Maximum static radial load): 51 kN
- nD G (Limiting speed): 3500 r/min
- Weight: 0.55 kg
- Operating Temperature: -30 degrees C to +120 degrees C
- Outer ring profile: Cylindrical
- Rolling elements: Needle rollers
- Number of rows: 1
- Axial guidance of outer ring: With
- Ring and roller material: GCr15 (52100, 100Cr6)
- Cage material: Sheet steel
- Sealing type: Contact
- Grease: Lithium Soap Grease NLGI #2
- Re-lubrication: With
- Tolerance class: P0(ABEC-1)
- Radial internal clearance: CN
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 14 minutes.
