THK POS20 ROD END
Quick Overview
Manufactured By: THK
Manufacturer Part Number: POS-20
IMS Product Code: 2129070
Packaging: Sold Individually
Description:

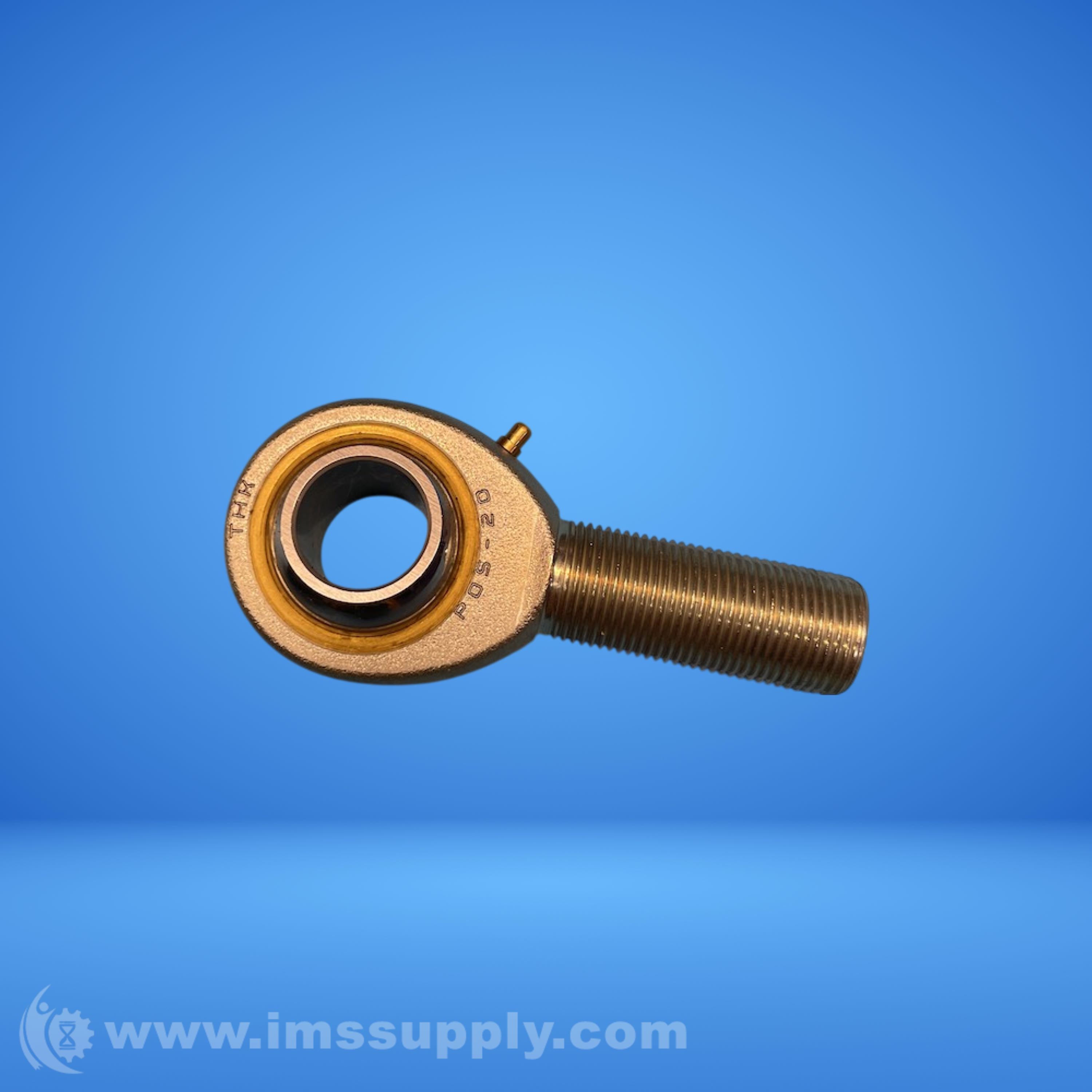

THK POS20 Rod End

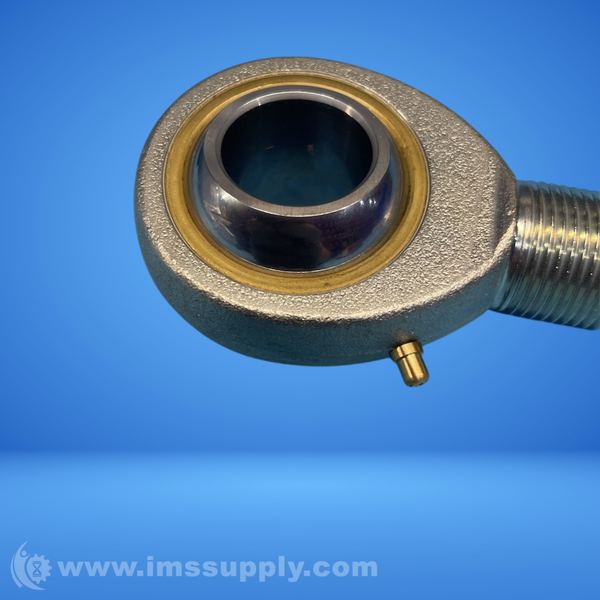

The POS20 is a rod end with a spherical plain bearing. It consists of a housing with an integral shank and a steel-on-bronze sliding contact surface. It is used to connect two shafts or mount on hydraulic/pneumatic cylinders, accommodating misalignment and supporting radial forces.
Specifications
- Type of guide: Slip
- Inner ring material: Iron-based
- Holder material: Iron-based
- Material of the bushing: Special copper alloy
- Standard lubrication method: Grease Lubrication
- Standard grease nipples: PB107
- Mounting screw direction: Right-hand male thread + left-hand male thread
- Minimum service temperature: -15 degrees C
- Maximum service temperature: 80 degrees C
- Inner diameter: 20 mm
- Outer diameter: 51 mm
- Width: 25 mm
- Length: 101 mm
- Threaded: M20×1.5
- Contact Material: Steel on Bronze
- Applied static load (Radial): 34300 N
- Mass: 0.34 kg
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
