THOMSON 2CA120MEL LINEAR GUIDE
Quick Overview
Manufactured By: THOMSON INDUSTRIES

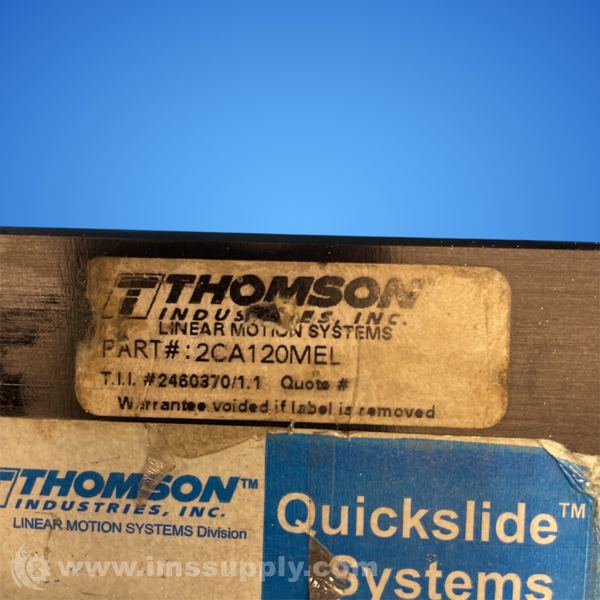

Manufacturer Part Number: 2CA120MEL
IMS Product Code: 2131794
Packaging: Sold Individually
Description:

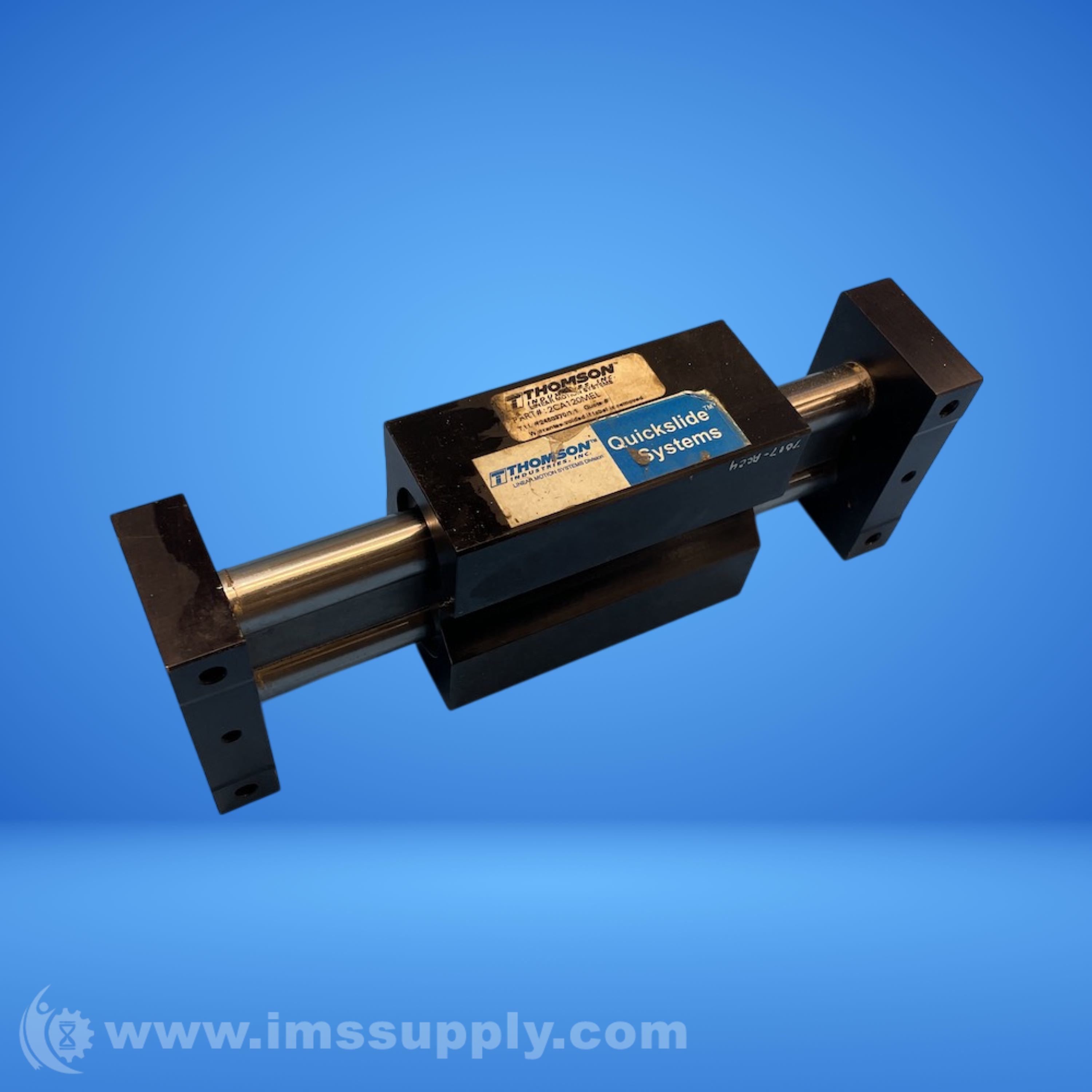

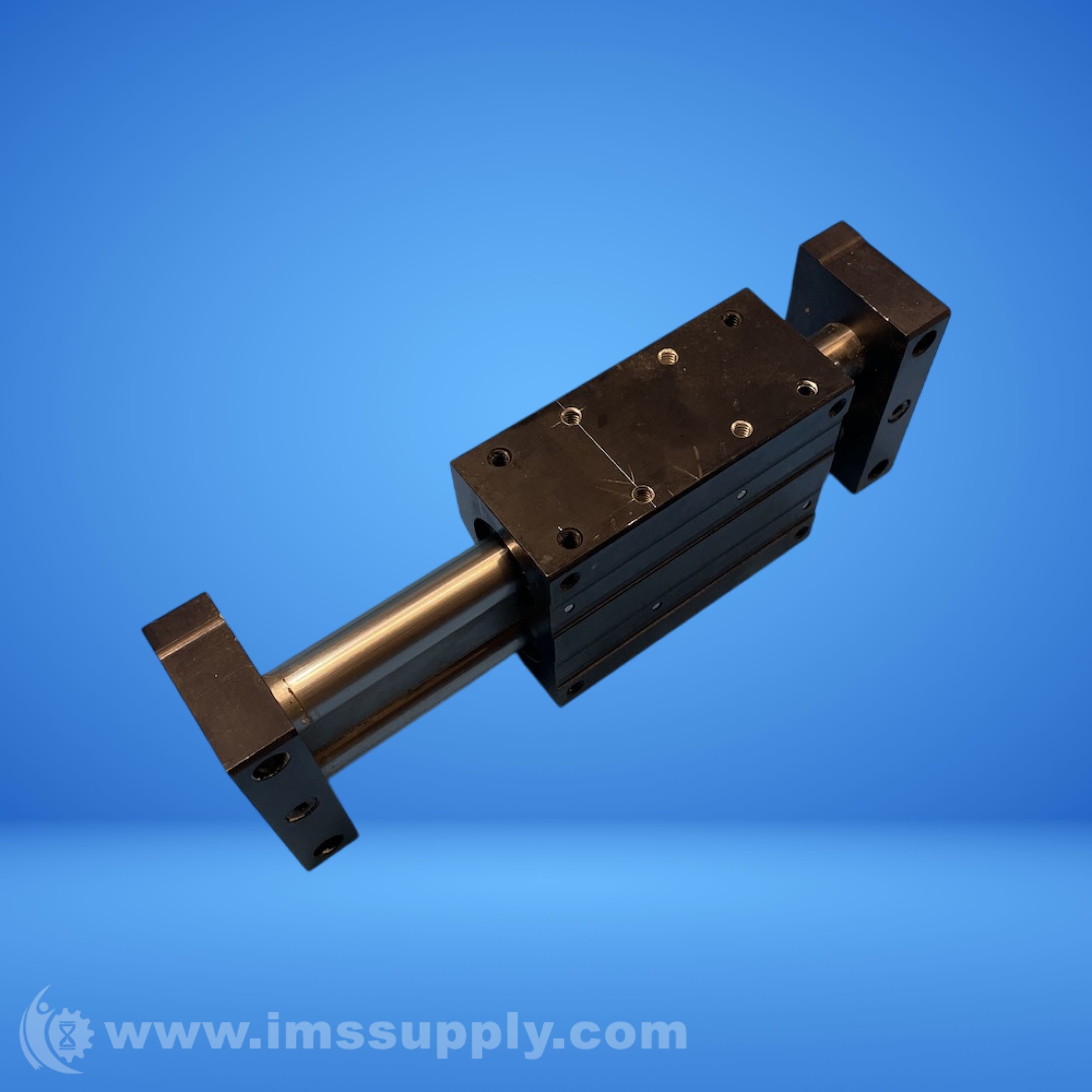

Thomson 2CA120MEL Linear Guide
Linear guide with twin shaft web design, end supported configuration, and horizontal carriage. Features 0.75 inch shaft diameter and 1800 lbf dynamic load capacity.
Specifications
- Material: Steel; Aluminum; Plastic
- Pillow Block or Carriage: Horizontal carriage
- Shaft Style: Twin Shaft Web
- Support: End supported, Standard
- Load Capacity, Dynamic: 1800 lbf
- Shaft, Nominal Diameter: 0.75 in
- [A]: 3.5 in
- [B]: 3 in
- [D]: 1.5 in
- [E]: 2.25 in
- [F]: 1/4-20
- [G]: 1/4 bolt, 0.28 in hole
- [H]: 3.625 in
- [H1]: 1.125 in
- [K]: 0.38 in
- [L1]: 4.5 in
- [L3]: 0.75 in
- [L6]: 0.25 in
- [L7]: 3.5 in
- [L8]: 0.5 in
- [M]: 2.87 in
- [N]: 4 in
- [P]: 2 in
- [Q]: 2 in
- [R]: 1.5 in
- [S]: 0.56
- [U]: 0.31 in
- [V]: 1.38 in
- [W]: 0.31 in
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 15 hours and 5 minutes.
