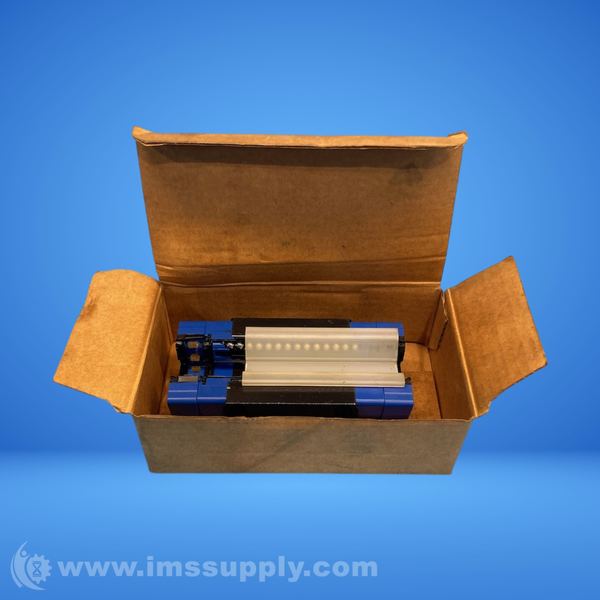

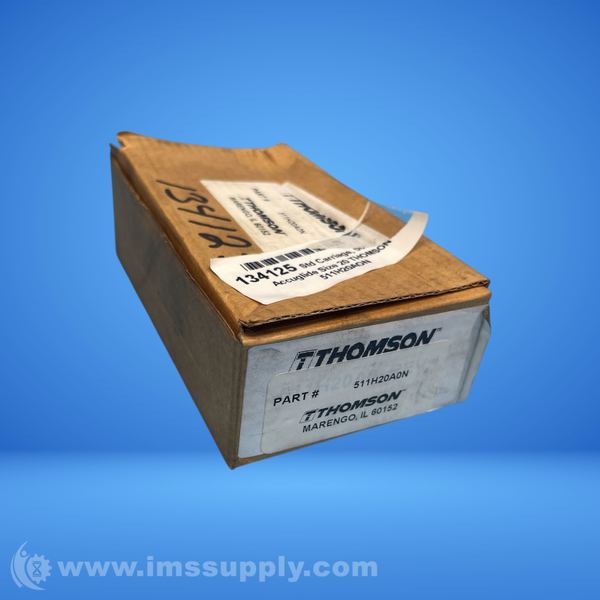

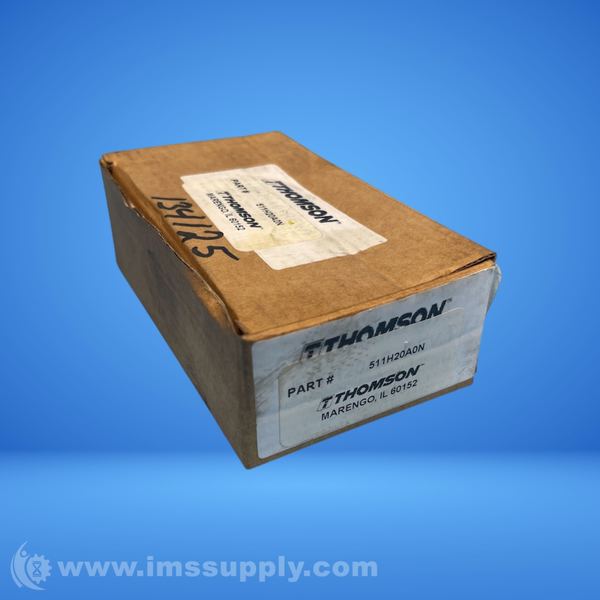

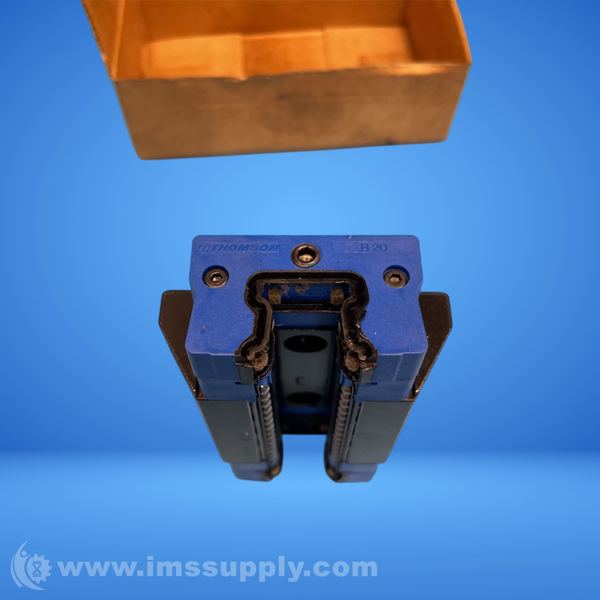

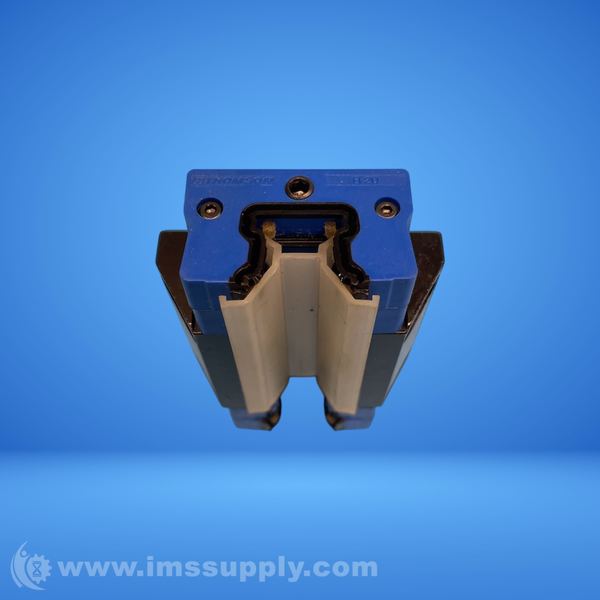

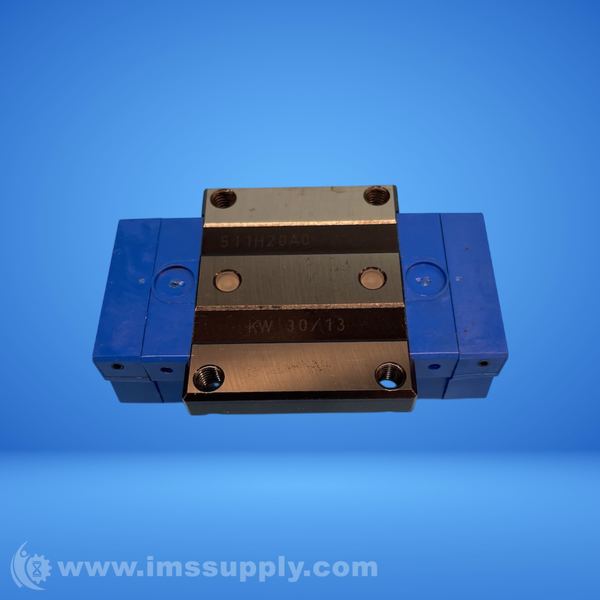

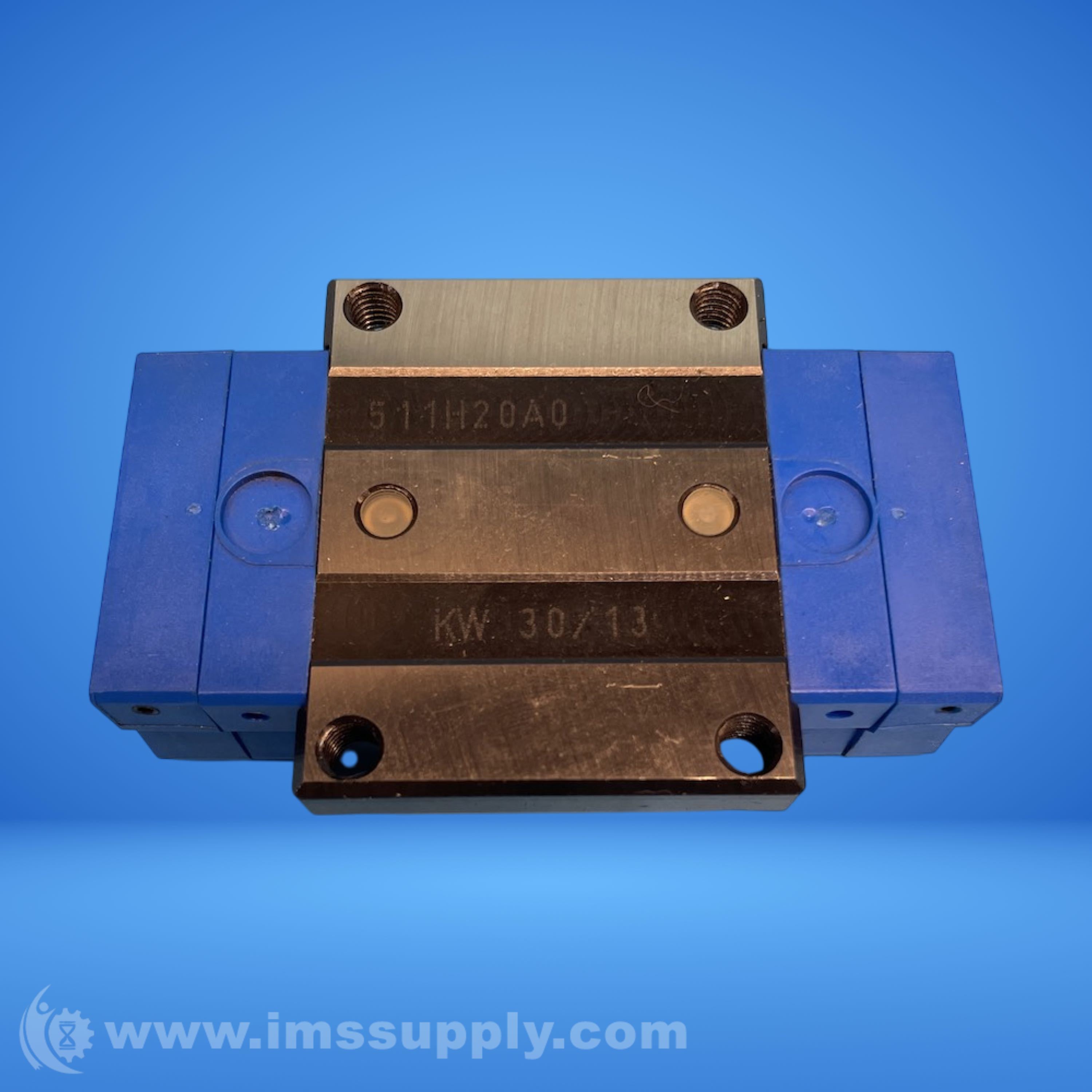

THOMSON 511H20A0N BALL CARRIAGE
Quick Overview
Manufactured By: THOMSON
Manufacturer Part Number: 511H20A0N
IMS Product Code: 2144855
Packaging: Sold Individually
Description:
Thomson 511H20A0N Ball Carriage
500 Series Ball Carriage, Size: 20 mm, High Precision Grade, A Style, 0 - Clearance Preload, Steel, Oil Reservoir Option
Specifications
- Assembly Height: 30 mm
- Assembly Height Tolerance: ±50 µm
- B: 63 mm
- B Tolerance: +0.0 -0.4 mm
- B2: 21.5 mm
- Ball Bearing Diameter: 4 mm
- Ball/Roller: Ball
- Carriage Length: 71.5 mm
- Carriage/Rail/Assembly: Carriage
- F: 5.4 mm
- F3: 9.5 mm
- G: 8 mm
- G1: 6.5 mm
- Grade: High Precision
- J: 25.5 mm
- L1: 40 mm
- L2: 35 mm
- L3: 49.5 mm
- M1: 5.2 mm
- Material: Steel
- Maximum Acceleration: 100 m/s²
- Maximum Velocity: 5 m/s
- N: 53 mm
- O: 8 mm
- Option (Extended: N
- Options Extended: Oil Reservoir
- P: 8 mm
- Preload: 0 - Clearance
- Rail Size (nominal): 20 mm
- S1: M 5
- S2: M 6
- Static Load Rating: 31400 N
- Style Name: A - Standard Block
- Temperature Max: 80 degrees C
- Temperature Min: -40 degrees C
- Weight: 0.5 kg
- 100 km Dynamic Load Rating: 14400 N
- 100 km Dynamic [Mx] Roll Moment: 171 Nm
- 100 km Dynamic [My] Pitch Moment: 134 Nm
- 100 km Dynamic [Mz] Yaw Moment: 134 Nm
- 50 km Dynamic Load Rating: 18143 N
- 50 km Dynamic [Mx] Roll Moment: 215 Nm
- 50 km Dynamic [My] Pitch Moment: 169 Nm
- 50 km Dynamic [Mz] Yaw Moment: 169 Nm
- Static [Mx] Roll Moment: 373 Nm
- Static [My] Pitch Moment: 292 Nm
- Static [Mz] Yaw Moment: 292 Nm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 33 minutes.
New - Open Box (Special):
MISSING PART
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 33 minutes.
