THOMSON 511H35A0 BALL CARRIAGE
Quick Overview
Manufactured By: THOMSON
Manufacturer Part Number: 511H35A0
IMS Product Code: 2144859
Packaging: Sold Individually
Description:

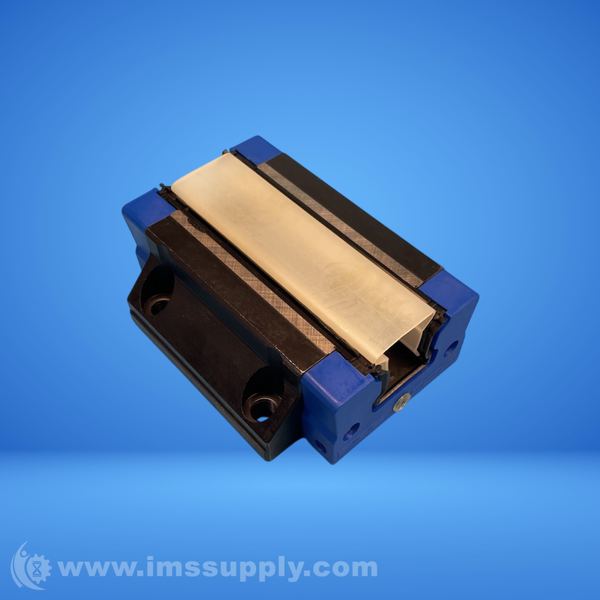

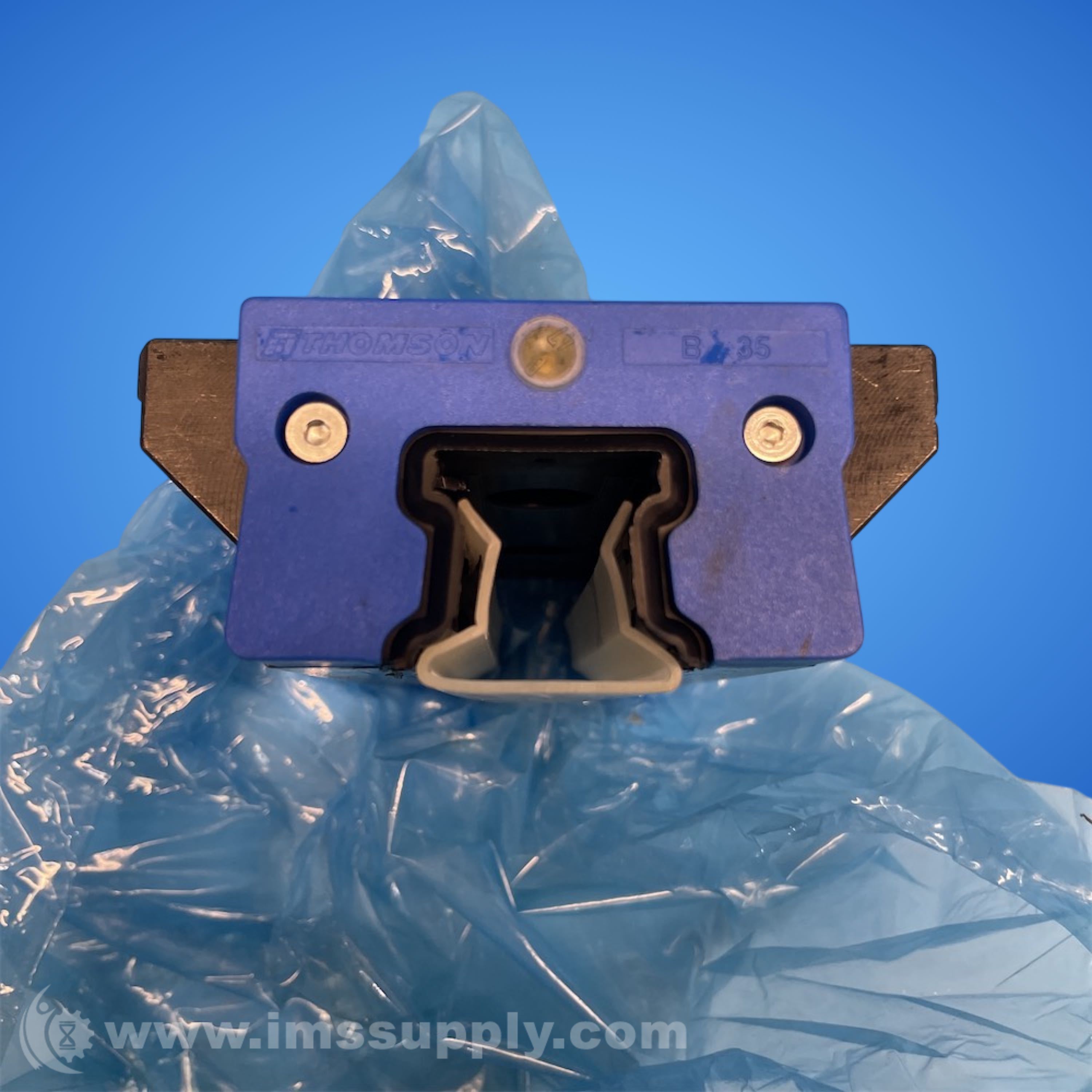

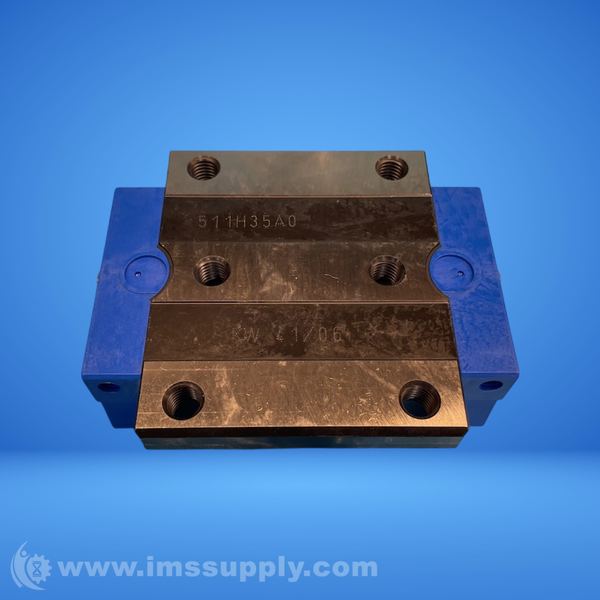

Thomson 511H35A0 Ball Carriage
Thomson 500 Series Ball Carriage, 35mm rail width, standard block style, high accuracy class, clearance preload.
Specifications
- Ball/Roller: Ball
- Carriage/Rail/Assembly: Carriage
- Carriage: A - Standard
- Size: 35
- Accuracy Class: High
- Material: Steel Alloy
- Preload: Clearance
- Temperature Max: 80 C (176 F)
- Temperature Min: -40 C (-40 F)
- Weight: 1.800 kg (3.968 lbs)
- 100 km Dynamic [Mx] Roll Moment: 718 N·m (530 lbf·ft)
- 100 km Dynamic [My] Pitch Moment: 574 N·m (423 lbf·ft)
- 100 km Dynamic [Mz] Yaw Moment: 574 N·m (423 lbf·ft)
- 100 km Dynamic Load Rating: 38,700 N (8,700 lbf)
- 50 km Dynamic [Mx] Roll Moment: 905 N·m (667 lbf·ft)
- 50 km Dynamic [My] Pitch Moment: 723 N·m (533 lbf·ft)
- 50 km Dynamic [Mz] Yaw Moment: 723 N·m (533 lbf·ft)
- 50 km Dynamic Load Rating: 48,759 N (10,961 lbf)
- Maximum Acceleration: 100 m/s² (328 ft/s²)
- Maximum Velocity: 5 m/s (16 ft/s)
- Static [Mx] Roll Moment: 1,566 N·m (1,155 lbf·ft)
- Static [My] Pitch Moment: 1,252 N·m (923 lbf·ft)
- Static [Mz] Yaw Moment: 1,252 N·m (923 lbf·ft)
- Static Load Rating: 84,400 N (18,974 lbf)
- A: 48.0 mm
- B: 100.0 mm (+0.00 / -0.40)
- B2: 33.0 mm
- F: 8.5 mm
- F3: 15.0 mm
- G: 12.0 mm
- G1: 12.0 mm
- J: 41.0 mm
- L: 111.6 mm
- L1: 62.0 mm
- L2: 52.0 mm
- L3: 79.6 mm
- M1: 7.0 mm
- N: 82.0 mm
- O: 8.0 mm
- P: 14.0 mm
- S1: M8
- S2: M10
- Series: 500
- Block Style: Standard
- Rail Width: 35 mm
- Length: 111.6 mm
- Width: 100 mm
- Height: 41 mm
- Slide Height: 48 mm
- Carriage Hole Size: M8 Bottom/M10 Top
- Dynamic Load Rating: 38700 N
- Static Load Rating: 84400 N
- Maximum Speed: 5 m/s
- Carriage Material: Steel
- Operating Temperature Range: -40 to 80 deg C
- End Seals: Standard
- Longitudinal Seals: Four
- Lubrication Reservoir: Additional

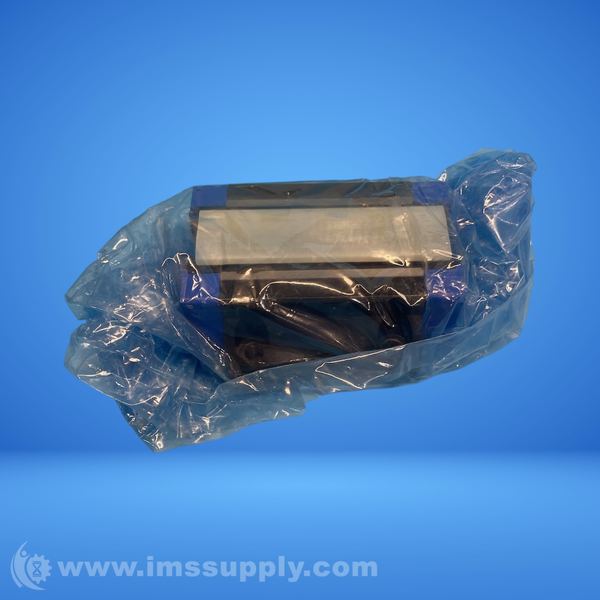

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
