THOMSON 512P65B1ZES3 ROLLER CARRIAGE
Quick Overview
Manufactured By: THOMSON
Manufacturer Part Number: 512P65B1ZES3
IMS Product Code: 2151649
Packaging: Sold Individually
Description:

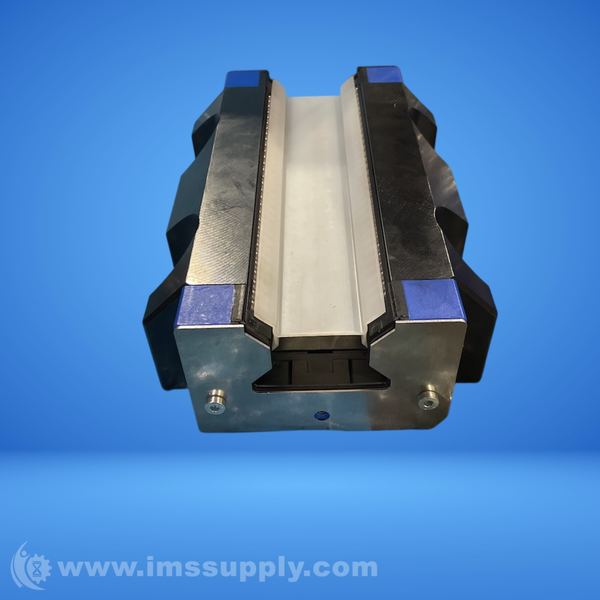

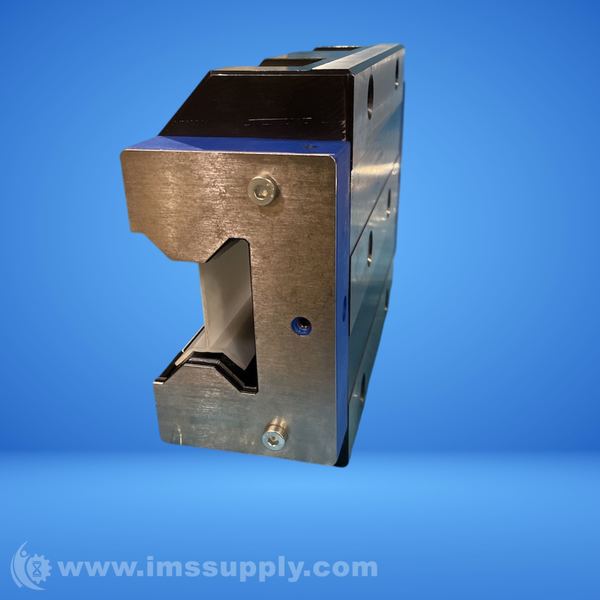

Thomson 512P65B1ZES3 Roller Carriage
Thomson Roller Carriage, Series: 500, Standard Long Block Style, 65 mm W Rail, 170 mm Width, 76 mm Height, 251 mm Length, 90 mm Slide Height, M16 Carriage Hole, For Use With: 522P65A 6000 mm L Standard Single Piece Profile Rail, 295000 N Dynamic/530000 N Static Load, 3 m/s Maximum, Steel Carriage, -40 to 80 degrees C
Specifications
- Series: 500
- Style: Standard Long Block
- Rail Size: 65 mm W
- Width: 170 mm
- Height: 76 mm
- Length: 251 mm
- Slide Height: 90 mm
- Carriage Hole Size: M16
- Suitable For Use With: 522P65A 6000 mm L Standard Single Piece Profile Rail
- Load Capacity: 295000 N Dynamic/530000 N Static
- Maximum Speed: 3 m/s
- Carriage Material: Steel
- Temperature Rating: -40 to 80 degrees C
- 100 km Dynamic [Mx] Roll Moment: 11,640 N·m (8,585 lbf·ft)
- 100 km Dynamic [My] Pitch Moment: 9,980 N·m (7,361 lbf·ft)
- 100 km Dynamic [Mz] Yaw Moment: 9,980 N·m (7,361 lbf·ft)
- 100 km Dynamic Load Rating: 295,000 N (66,319 lbf)
- 50 km Dynamic [Mx] Roll Moment: 14,317 N·m (10,560 lbf·ft)
- 50 km Dynamic [My] Pitch Moment: 12,275 N·m (9,054 lbf·ft)
- 50 km Dynamic [Mz] Yaw Moment: 12,275 N·m (9,054 lbf·ft)
- 50 km Dynamic Load Rating: 362,850 N (81,572 lbf)
- Maximum Acceleration: 50 m/s² (164 ft/s²)
- Maximum Velocity: 3 m/s (10 ft/s)
- Static [Mx] Roll Moment: 20,912 N·m (15,424 lbf·ft)
- Static [My] Pitch Moment: 17,930 N·m (13,224 lbf·ft)
- Static [Mz] Yaw Moment: 17,930 N·m (13,224 lbf·ft)
- Static Load Rating: 530,000 N (119,149 lbf)

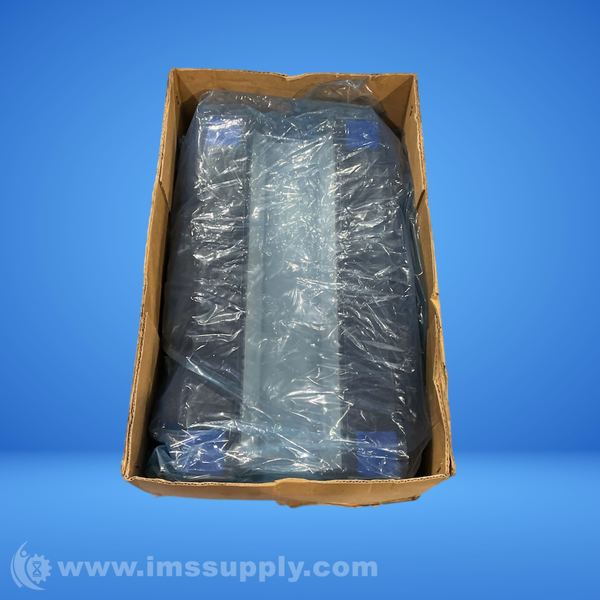

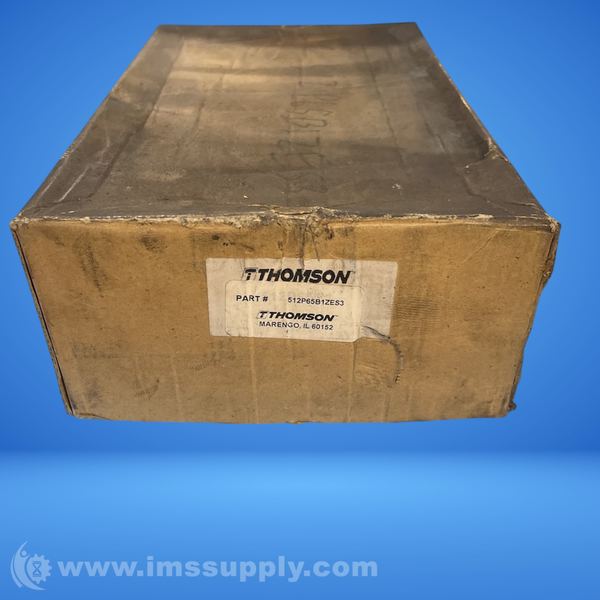

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
